> When working with the tool the operator must not have loose parts of wear as
e.g. a tie, long hair, jewelry etc. to avoid getting caught by the tool.
> Same safety instructions apply for persons standing close to the tool.
> Avoid unnecessary contact with the hydraulic fluid to prevent possible allergic
reaction of the skin.
> The tool is equipped with permanent magnet, the magnetic pole may influence
electronic and even some mechanic machines. so it is necessary to warn
about the possibility of the influence on the operation of electronic implants
[e.g. pacemakers, insulin pumps etc.] with potential fatal effect for the users of
these implants. the magnetic pole may also damage information on magnetic
appliances [audio and video cassettes, diskettes, credit cards etc.] and it can
destroy the forever. While using [and storing] the tool, please, keep distance with
these sensitive appliances, in this case 0.5 m is considered as the save distance.
> The tool is not designed for outdoor and explosive environment.
> After the service life, discard the tool according to the Disposal Act no. 185/01 Coll.
2. Description of the tool
2. Description of the tool

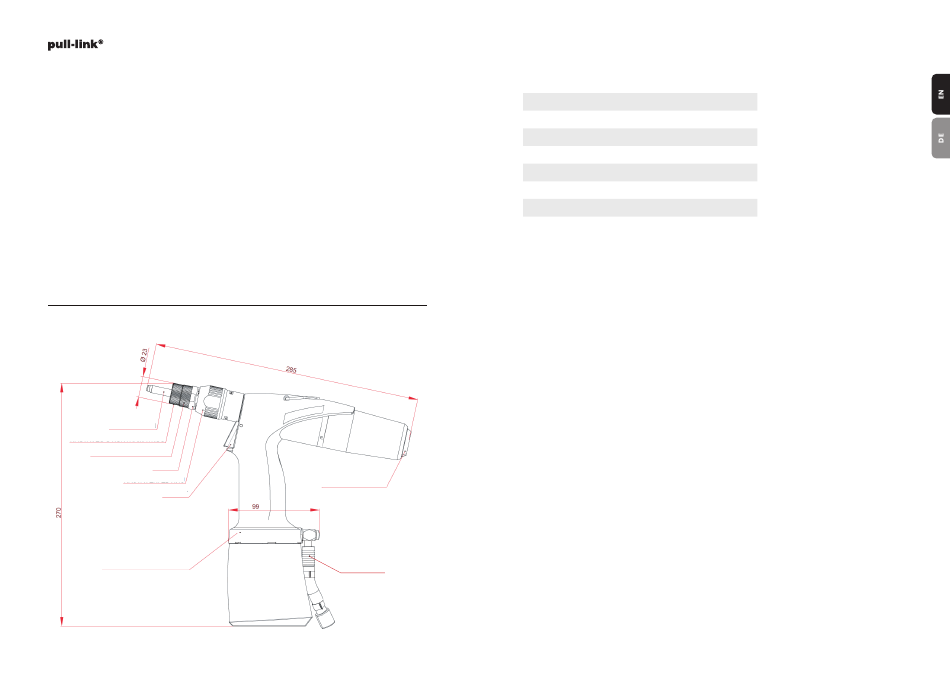

2.1 Basic dimensions
Mandrel
Anvil with counternut
Quick interchangeable system
Front nozzle
Stroke set-up
Trigger
Revolvable airsupply
4
Unscrewing button
Main valve
2.2 Technical data
Weight
Working pressure
0.5 - 0.7 MPa
Stroke force at 0.6 MPa
Air consumption
1.5 L / stroke
Stroke
Height
Length
Width [over the aircoupling]
2.3 Range of usage
The pneumatic-hydraulic tool is designed for riveting with blind rivet nuts:
> Rivet Nuts M3- M10 [Aluminium, Steel, Stainless Steel] and M12 [Aluminium, Steel]
> Rivet Bolts M4 - M8 [Aluminium, Steel, Stainless steel]
2.4 Tool operation
The manufacturer pre-equipped the tool with an anvil and mandrel for blind rivet
nuts M8. For inserting blind rivet nuts with a different dimension, it is necessary
to exchange the anvil and mandrel accordingly. Change the basic set-up and
regulation of the tool as follows:
Close the hand slide valve [main valve 2.1] on the tool. All devices in our AS-SERIES
can be quickly disconnected from the compressed air for checking or short-term
shutdown.
1. Loosen the counternut of the anvil
2. Unscrewing the anvil from the front nozzle
3. Unscrewing out the mandrel from the sleeve
4. Choose appropriate anvil and mandrel, see the following chart:
AS-4
1.65 kg
18.5 kN
7 mm
270 mm
285 mm
99 mm
5
