Qonnect PL-64R Bedienungsanleitung

0
4
P
1
PL-64R
L
2 2
3
H
PL-64R
Manual

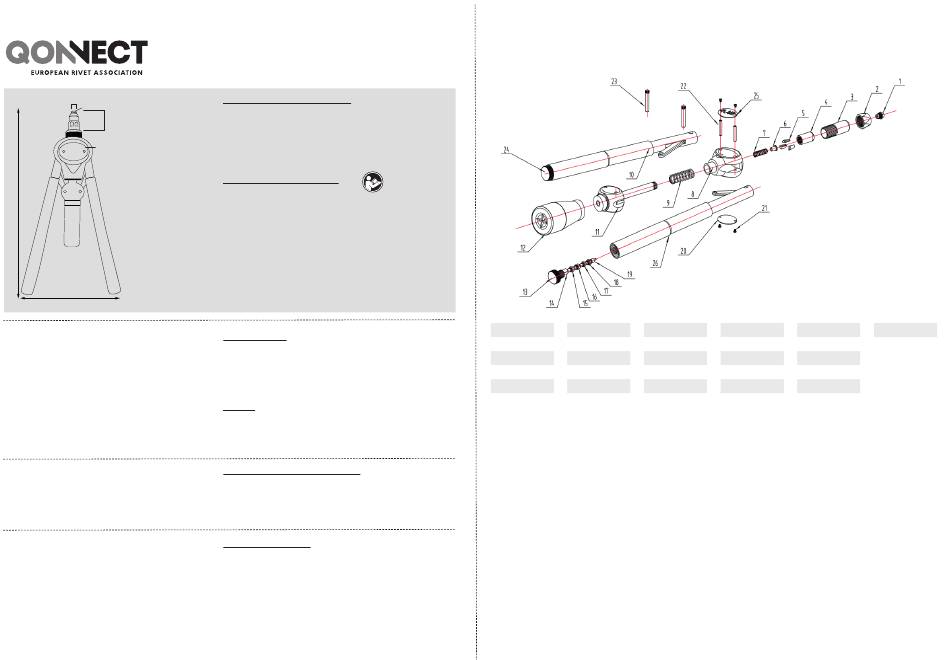

OPERATING INSTRUCTIONS
HAND TOOL FOR BLIND RIVETS UP TO 6,4 MM
PL-64R
TECHNISCHE INFORMATIONEN
Capacity: Blind rivets 3,0/3,2 - 4,0 - 4,8/5,0 - 6,0/6,4 mm
Material: Aluminium, steel and stainless steel
Size: 497 mm (L) x 146 mm (H) 55 mm (P) 24 mm (0)
Weight: 1.6 Kg
DESCRIPTION OF THE TOOL
1. Tool body
2. left and right lever
3. Mandrel collector
4. Nosepiece 6,4 mm
INSTRUCTIONS
The handtool will be standard equipped with the 6,4 mm nosepiece for
blind rivets.
The other components will be stored separate within the storage
compartment within the levels.
FIRST USE:
Make sure before using the tool that the nosepiece is suitable for the
blind rivet of use. Otherwise, change to a different size.
A
CHANGE TO A DIFFERENT SIZE BLIND RIVET:
Close the levers completely. Now use a wrench to unscrew the
nosepiece. Take the nosepiece of choice out of the storage
compartment within the levels, and replace the nosepiece by screwing
in on.
B
HOW TO SET A BLIND RIVET:
Open up the levers completely. Insert the nosepiece of the blind rivet,
and insert the blind rivet into the profile of choice. Now close the levers
completely. If necessary, repeat the above until the mandrel breaks, and
the rivet is completely set.
Read the manua
l
1
04L00022
2
04Z20194
3
04L00002
4
04L00015
5
04Z40102
6 11 16
04L21254 04Z20070 04L40103
7 12 17
04L21170 04Z20075 04L40104
8 13 18
04L21207 04Z20074 04L40105
9 14 19
04L00008 04Z40102 04Z20076
10 15 20
04Z20105 04L00021 04L20489
21 26
04L21636 04Z20107
22
04L00006
23
04P00006
24
04Z20073
25
04L20490
PL-64R
Manual
