MSK5000 - SA15
Installation
3. Provide for a relief groove in the solid shaft (see
RADIAL application: MSK5000 with MR500


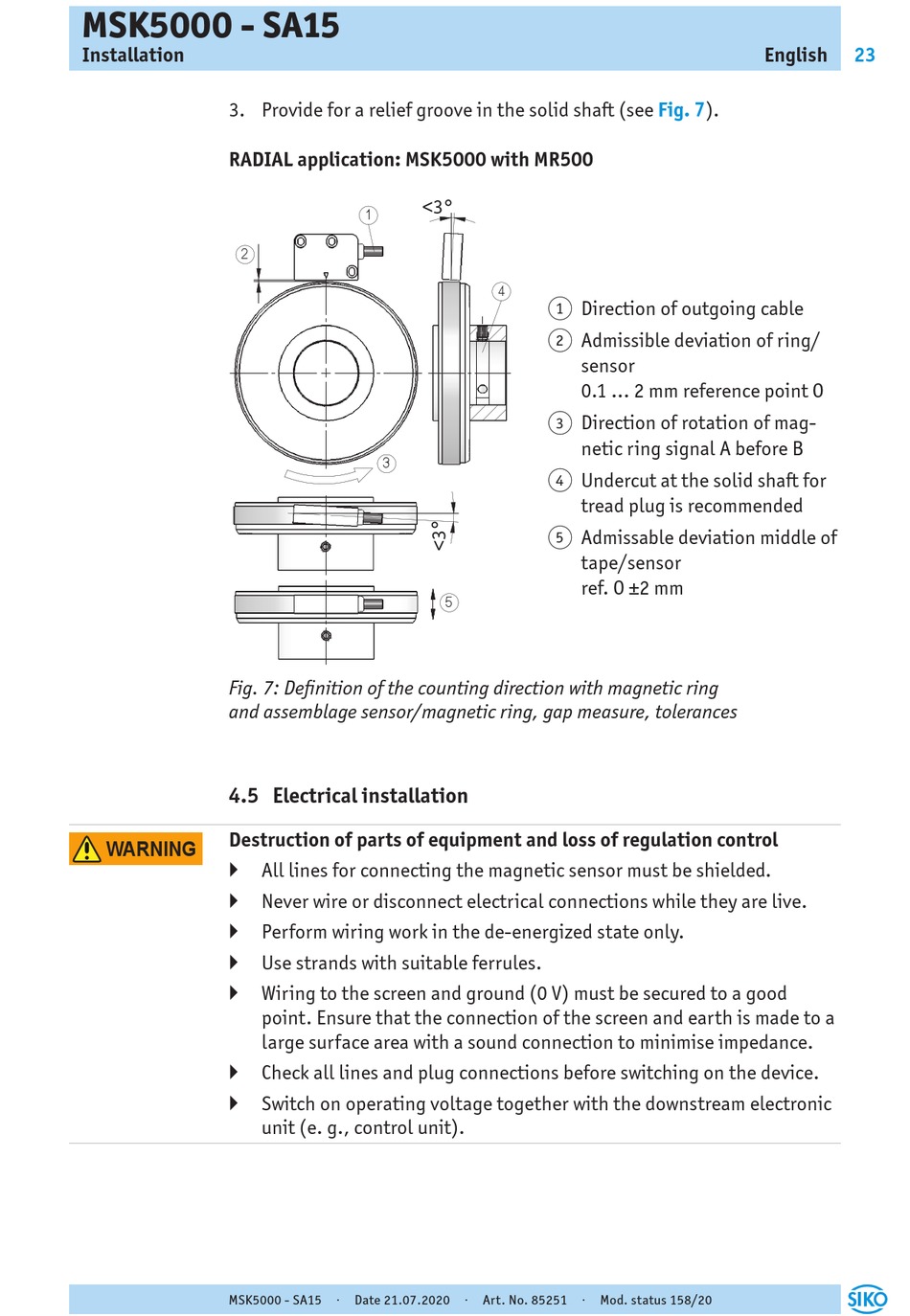

Fig. 7: Definition of the counting direction with magnetic ring
and assemblage sensor/magnetic ring, gap measure, tolerances
4.5 Electrical installation
Destruction of parts of equipment and loss of regulation control
WARNING
` All lines for connecting the magnetic sensor must be shielded.
` Never wire or disconnect electrical connections while they are live.
` Perform wiring work in the de-energized state only.
` Use strands with suitable ferrules.
` Wiring to the screen and ground (0 V) must be secured to a good
` Check all lines and plug connections before switching on the device.
` Switch on operating voltage together with the downstream electronic
MSK5000 - SA15 · Date 21.07.2020 · Art. No. 85251 · Mod. status 158/20
<3°


point. Ensure that the connection of the screen and earth is made to a
large surface area with a sound connection to minimise impedance.
unit (e. g., control unit).

Direction of outgoing cable
1
Admissible deviation of ring/
2
sensor
0.1 ... 2 mm reference point O
Direction of rotation of mag-
3
netic ring signal A before B
Undercut at the solid shaft for
4
tread plug is recommended
Admissable deviation middle of
5
tape/sensor
ref. O ±2 mm

