Strömungswächter | FS20
b Nur bei Flüssigkeiten:
Bei senkrechter Leitung möglichst nur in
Steigleitungen einbauen, um falsche Signale
durch Luftpolsterbildung zu vermeiden.
c Nur bei Flüssigkeiten:
Bei waagerechter Leitung Strömungs wächter
von unten einbauen.
d Um evtl. Funktionsstörungen auszuschließen
sind energiereiche induktive, kapazitive und
hochfrequente Einstreu ungen zu vermeiden.
3
• Die beiden Messfühler (S) müssen neben-
ein ander im Strömungsmedium liegen (siehe
Fig. 2). Dies ist der Fall, wenn die Schlüsselansatz-
flä chen (F) parallel zur Rohrleitung stehen (siehe
Fig. 4) und die Markierung auf der Front plat te mit
der Strömungsrichtung über einstimmt (siehe Fig. 3).
Einbauempfehlung:
Der Absatz der Messfühler (7 mm ab Spitze gemes-
sen) sollte etwa bei 1/8 des Rohrinnendurchmessers
øi liegen (siehe Fig. 4).
• Der Strömungswächter wird mit Hilfe der
Verschraubung mit Edelstahlschneidring oder
Teflonring und dem Sicherungsset (siehe Fig. 6)
befestigt.
Achtung!
Vor Inbetriebnahme das Rohrsystem unter Druck
setzen und es auf Festigkeit und Leckagen
überprüfen.
6
MONTIEREN
b Only for liquids:
In the case of vertical pipelines the flow
monitor should be installed where the flow
is rising, if possible.
c Only for liquids:
For horizontal pipelines the flow monitor
should be mounted on the underside of the
line (suspended).
d Avoid installing the flow monitor in known
areas of high electrical inductance, capacitance,
or high-frequency electro-magnetic fields.
3
• The two sensors (S) on the flow monitor must be
aligned side by side directly across the direction of
flow (see fig. 2). The sensors are correctly positioned
when the wrench flats (F) are aligned parallel with
the pipeline (see fig. 4) and when the marking on
the front matches the flow direction (see fig. 3).
Recommendation:
The bevel of the sensors (measured 7 mm/.28 in.
from top) should be positioned at about 1/8 of
the inside pipe diameter øi (see fig. 4).
• The flow monitor is a xed by the threaded
installation bush with stainless steel ring or
teflon sealing ring and the locking set (see fig. 6).
Caution!
Before start-up please pressurize the pipe system
and check with regard to leakages and strength.
Flow Switch
-
+
ON
Q
Adj.

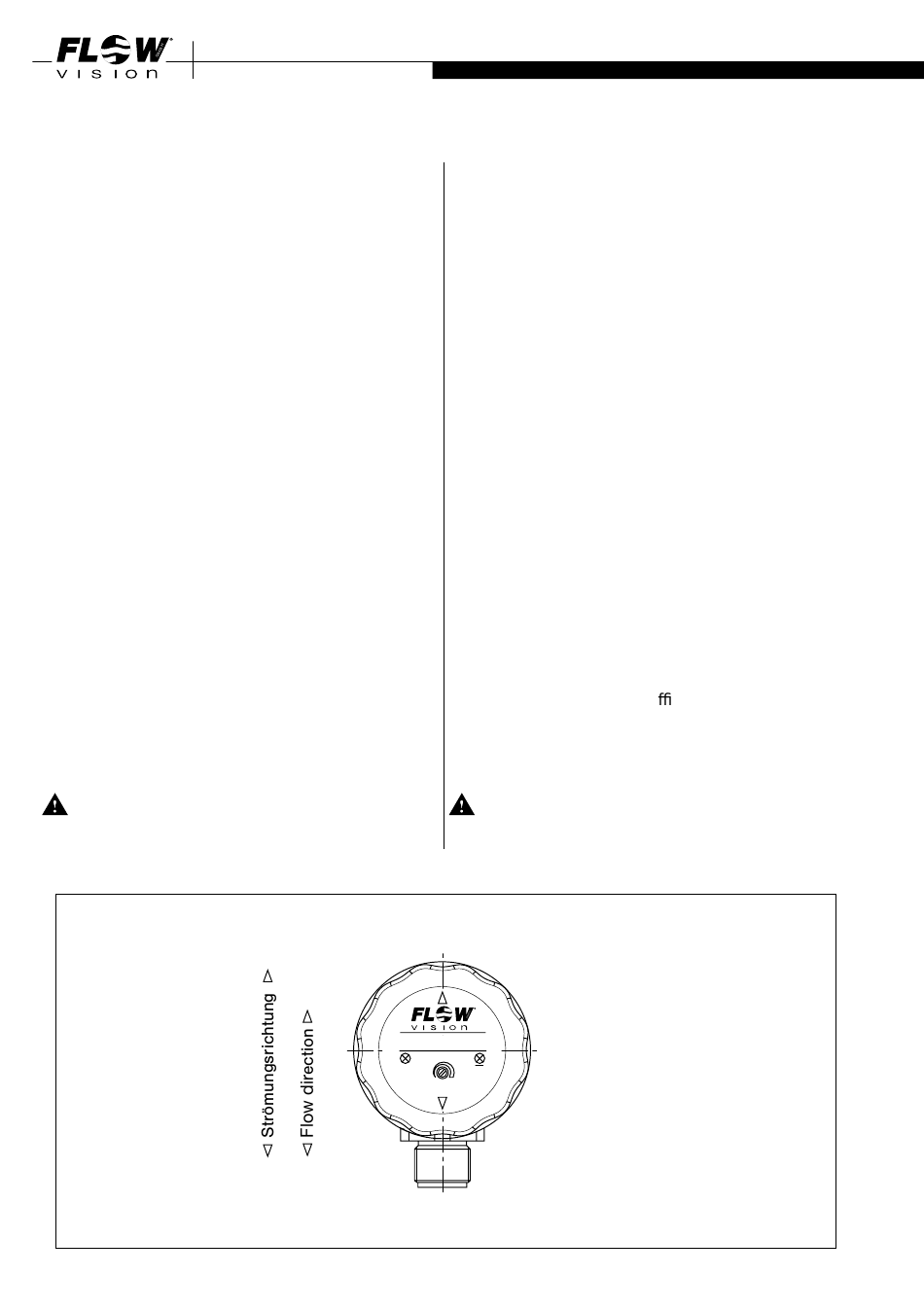

Fig. 3
