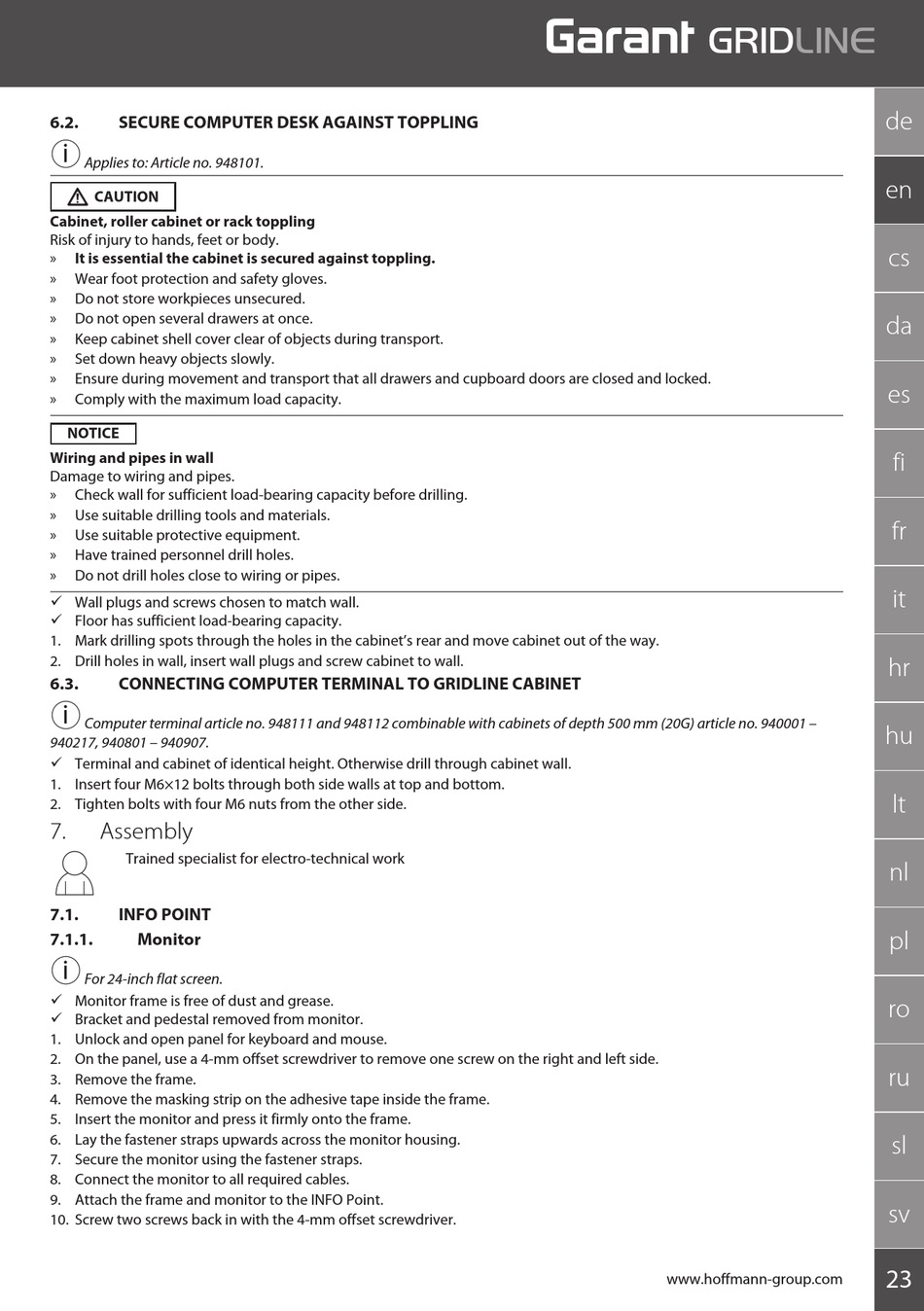

6.2. SECURE COMPUTER DESK AGAINST TOPPLING
i
Applies to: Article no. 948101.
CAUTION
Cabinet, roller cabinet or rack toppling
Risk of injury to hands, feet or body.
» It is essential the cabinet is secured against toppling.
» Wear foot protection and safety gloves.
» Do not store workpieces unsecured.
» Do not open several drawers at once.
» Keep cabinet shell cover clear of objects during transport.
» Set down heavy objects slowly.
» Ensure during movement and transport that all drawers and cupboard doors are closed and locked.
» Comply with the maximum load capacity.
NOTICE
Wiring and pipes in wall
Damage to wiring and pipes.
» Check wall for sufficient load-bearing capacity before drilling.
» Use suitable drilling tools and materials.
» Use suitable protective equipment.
» Have trained personnel drill holes.
» Do not drill holes close to wiring or pipes.
ü Wall plugs and screws chosen to match wall.
ü Floor has sufficient load-bearing capacity.
1. Mark drilling spots through the holes in the cabinet's rear and move cabinet out of the way.
2. Drill holes in wall, insert wall plugs and screw cabinet to wall.
6.3. CONNECTING COMPUTER TERMINAL TO GRIDLINE CABINET
i
Computer terminal article no. 948111 and 948112 combinable with cabinets of depth 500 mm (20G) article no. 940001 –
940217, 940801 – 940907.
ü Terminal and cabinet of identical height. Otherwise drill through cabinet wall.
1. Insert four M6×12 bolts through both side walls at top and bottom.
2. Tighten bolts with four M6 nuts from the other side.
7. Assembly
Trained specialist for electro-technical work
7.1. INFO POINT
7.1.1. Monitor
i
For 24-inch flat screen.
ü Monitor frame is free of dust and grease.
ü Bracket and pedestal removed from monitor.
1. Unlock and open panel for keyboard and mouse.
2. On the panel, use a 4-mm offset screwdriver to remove one screw on the right and left side.
3. Remove the frame.
4. Remove the masking strip on the adhesive tape inside the frame.
5. Insert the monitor and press it firmly onto the frame.
6. Lay the fastener straps upwards across the monitor housing.
7. Secure the monitor using the fastener straps.
8. Connect the monitor to all required cables.
9. Attach the frame and monitor to the INFO Point.
10. Screw two screws back in with the 4-mm offset screwdriver.
