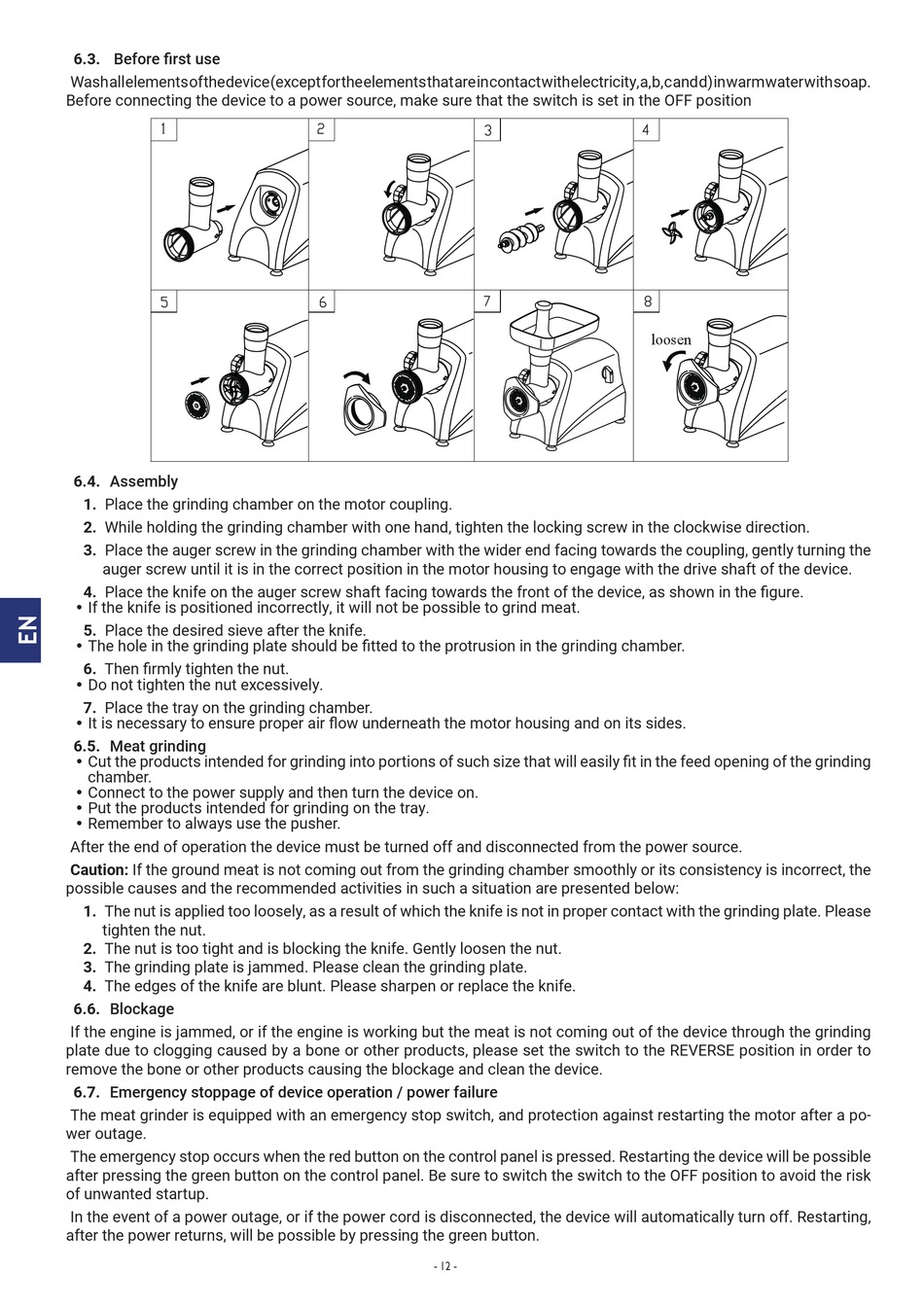

6.3.   Before first use
Wash all elements of the device (except for the elements that are in contact with electricity, a, b, c and d) in warm water with soap.
Before connecting the device to a power source, make sure that the switch is set in the OFF position
6.4.  Assembly
1. Place the grinding chamber on the motor coupling.
2. While holding the grinding chamber with one hand, tighten the locking screw in the clockwise direction.
3. Place the auger screw in the grinding chamber with the wider end facing towards the coupling, gently turning the
auger screw until it is in the correct position in the motor housing to engage with the drive shaft of the device.
4. Place the knife on the auger screw shaft facing towards the front of the device, as shown in the figure.
• If the knife is positioned incorrectly, it will not be possible to grind meat.
5. Place the desired sieve after the knife.
• The hole in the grinding plate should be fitted to the protrusion in the grinding chamber.
6. Then firmly tighten the nut.
• Do not tighten the nut excessively.
7. Place the tray on the grinding chamber.
• It is necessary to ensure proper air flow underneath the motor housing and on its sides.
6.5.  Meat grinding
• Cut the products intended for grinding into portions of such size that will easily fit in the feed opening of the grinding
chamber.
• Connect to the power supply and then turn the device on.
• Put the products intended for grinding on the tray.
• Remember to always use the pusher.
After the end of operation the device must be turned off and disconnected from the power source.
Caution: If the ground meat is not coming out from the grinding chamber smoothly or its consistency is incorrect, the
possible causes and the recommended activities in such a situation are presented below:
1. The nut is applied too loosely, as a result of which the knife is not in proper contact with the grinding plate. Please
tighten the nut.
2. The nut is too tight and is blocking the knife. Gently loosen the nut.
3. The grinding plate is jammed. Please clean the grinding plate.
4. The edges of the knife are blunt. Please sharpen or replace the knife.
6.6.  Blockage
If the engine is jammed, or if the engine is working but the meat is not coming out of the device through the grinding
plate due to clogging caused by a bone or other products, please set the switch to the REVERSE position in order to
remove the bone or other products causing the blockage and clean the device.
6.7.  Emergency stoppage of device operation / power failure
The meat grinder is equipped with an emergency stop switch, and protection against restarting the motor after a po-
wer outage.
The emergency stop occurs when the red button on the control panel is pressed. Restarting the device will be possible
after pressing the green button on the control panel. Be sure to switch the switch to the OFF position to avoid the risk
of unwanted startup.
In the event of a power outage, or if the power cord is disconnected, the device will automatically turn off. Restarting,
after the power returns, will be possible by pressing the green button.
- 12 -
loosen
loose
