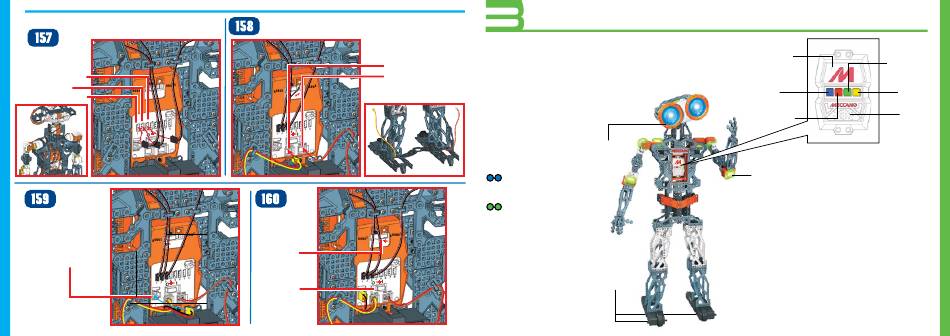

2.2 CONNECT THE ELECTRONICS
Plug in servos and
LED module into ports
1, 2 and 3
Right Arm Servo
Neck Servo
Left Arm Servo
Plug in battery cable
54
Plug in
left foot motor
and right foot motor.
Left Foot Motor Right Foot Motor
Left Foot Motor
Make sure robot is in
robot mode
Turn robot on
Well done, your
build is complete.
PLAY
3.1 LET'S PLAY
1 Meccanoid will start speaking and do a systems check to verify connections.
2 If connections are correct, the robot will restart, ask for your name, and then introduce himself.
Note: If connections are not correct, the robot will let you know. Return to step 157 and review connections.
3 Meccanoid will ask you to test its voice commands. Listen for the directions.
4 Say "Meccanoid," then wait for the beep, wait for his eyes to turn GREEN,
then say "Tell me a joke".
Eye color communicates mode
When the Robot's eye's are BLUE, he is
listening for "Meccanoid" (or custom name).
After hearing his name, his eyes will turn
GREEN. Now say any Main Menu command.
YOU ARE NOW READY TO PLAY!
Motors
MeccaBrain TM
Microphone GREEN
L.I.M. Library
BLUE
YELLOW
No/Exit
Yes/Save
RED
Speaker
Record L.I.M.
TIP: Press any button when
they are all unlit for help. The
robot will also tell you about its
Servo Motor
button functions.
55
