Start up
3.1 Lifting and carrying
Model
AV30
AV37
AV45
AV55
3.2 Dimensions
H
D

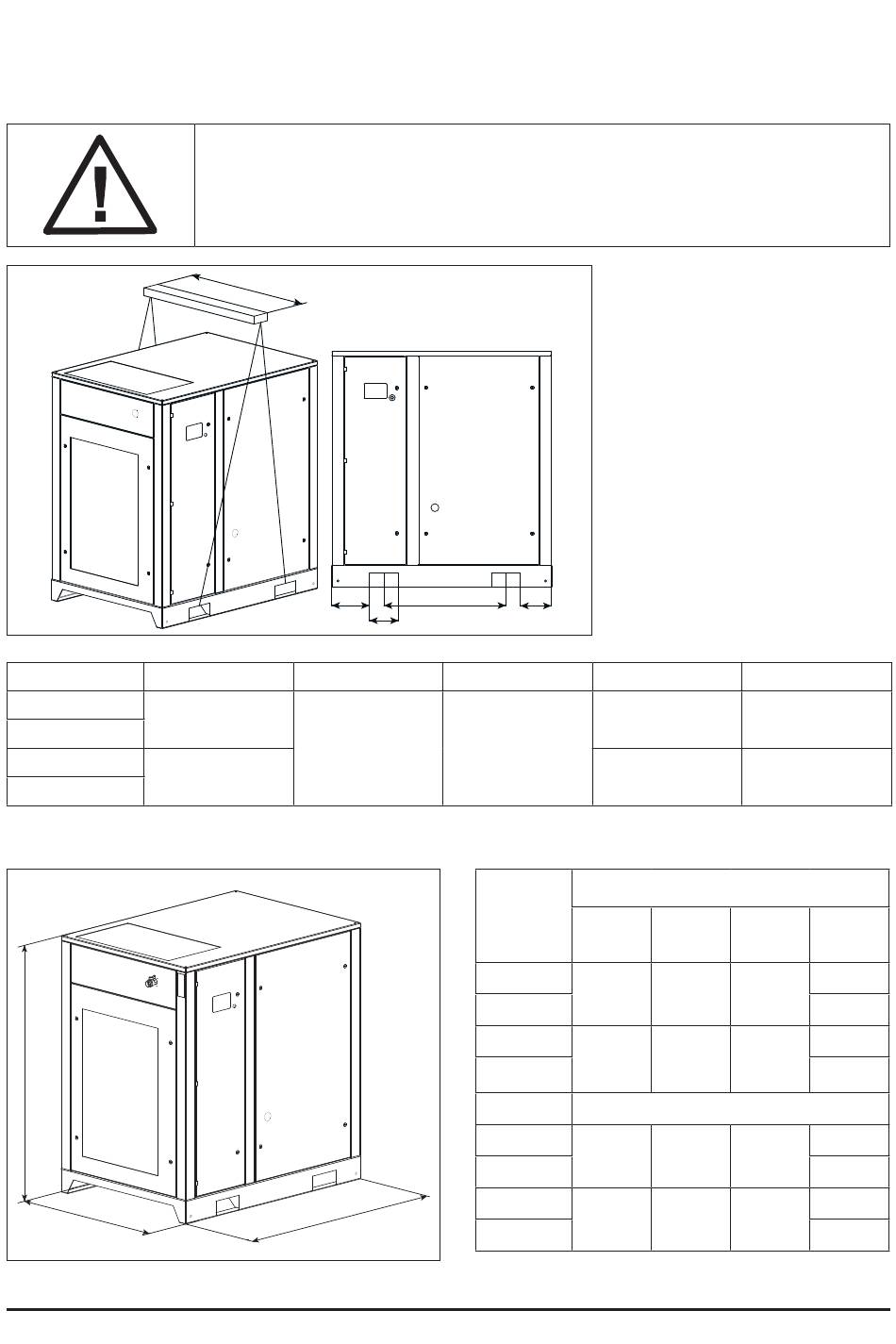

Fig. 3.2 Dimension drawing AV30-55.
14
All lifting should be carried out using a forklift truck with a carrying capacity
suited to the compressor. Lifting may be carried out with loading cranes,
winches and other machinery, using a crossbeam with the right length. Lo-
cal safety guidelines for lifting have to be observed.
G
A
A,mm
B, mm
332
775
540
L
D
B
C
C, mm
185
Model
АV30
АV37
АV45
АV55
АV30
АV37
АV45
АV55
For transport with a forklift
truck, use the rigging holes
in the frame. The compressor
has slotted rigging holes with
width C – fig. 3.1. Move the
compressor carefully.
Fig. 3.1 Lifting and carrying
AV30-55.
D, mm
292
150
Compressor dimensions
Length
Width
Height
L, mm
D, mm
H,mm
1400
1000
1500
1650
1250
1720
Packaging dimensions
1600
1100
1750
1850
1350
1950
G, mm
1200
1300
Weight,
kg
725
765
1015
1190
755
795
1055
1240
