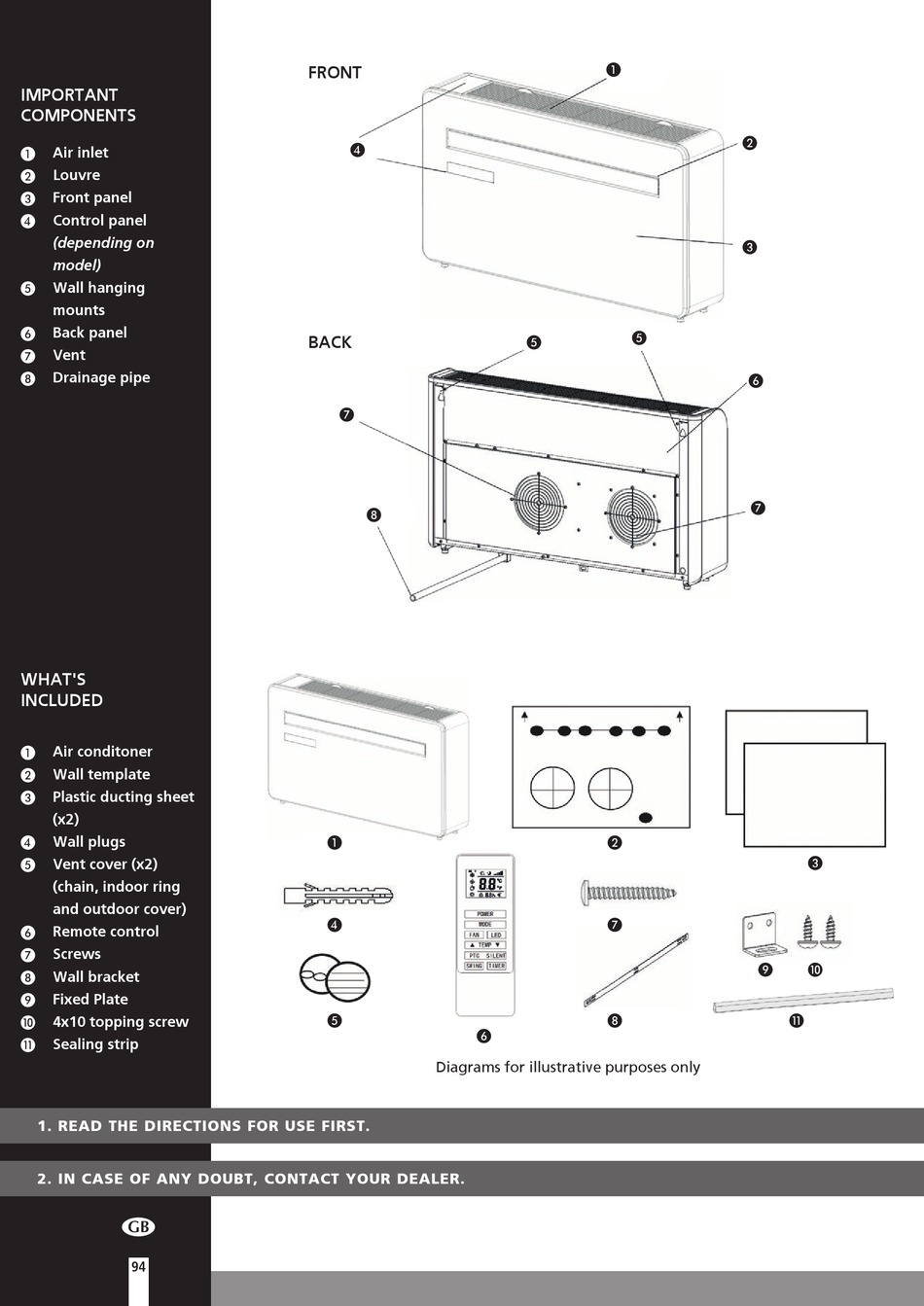

IMPORTANT
COMPONENTS
Air inlet
A
Louvre
B
Front panel
C
Control panel

(depending on
model)
Wall hanging

mounts
Back panel

Vent

Drainage pipe

WHAT'S
INCLUDED
Air conditoner
A
Wall template
B
Plastic ducting sheet
C
(x2)
Wall plugs

Vent cover (x2)

(chain, indoor ring
and outdoor cover)
Remote control

Screws

Wall bracket

Fixed Plate

4x10 topping screw

Sealing strip
K
1. READ THE DIRECTIONS FOR USE FIRST.
2. IN CASE OF ANY DOUBT, CONTACT YOUR DEALER.
4
94
FRONT

BACK


A



Diagrams for illustrative purposes only
A


B


B
C


C
 
K
