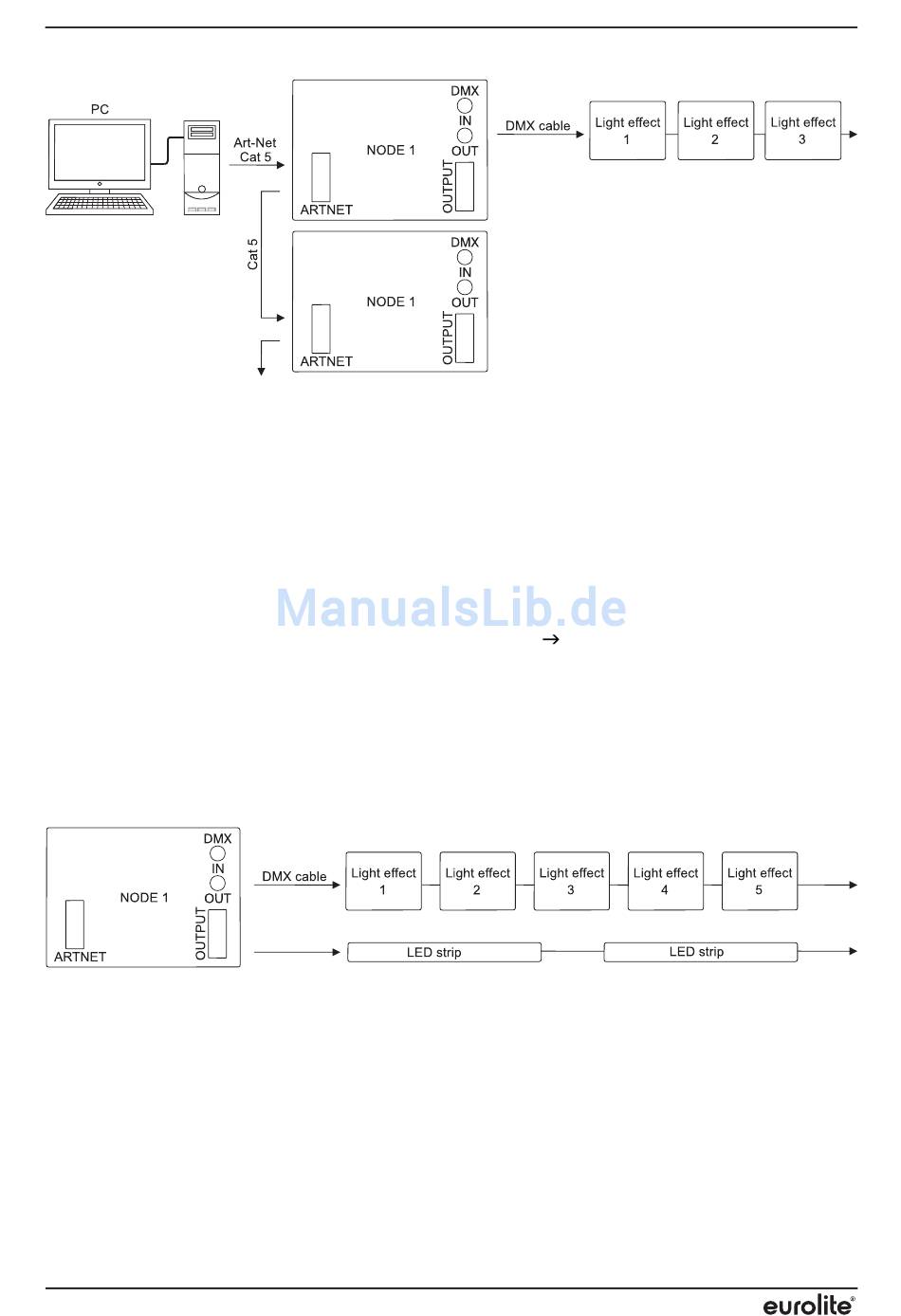

Controlling Light Effects via Art-Net

1
Launch your lighting control software (e. g. MADRIX).
2
In the menu, select the operating mode "Artnet" > "Out DMX".
3
Connect one of the node's Ethernet ports to a computer network. If
necessary, connect several nodes in series. Connect the light effects to
the jack DMX IN.
4
Map the light effects in your software (under MADRIX e.g. with the
Generator or Patch).
5
Control the light effects with the software ( documentation of the
software).

Operation without external Control

The LED strips and light effects can be controlled solely via the node. For this
purpose, 16 light programs and an individual color setting mode are provided.
1
Connect the LED strips/light effect as described before.
2
For constant lighting in red, green and blue of the LEDs connected,
select the mode "Manual" and adjust the desired brightness in the
corresponding submenus. Adjust the desired flash frequency under
"Flash".
3
For automic mode with a built-in light program, select the mode "Prog
Run" and the number of the desired program. In the submenus, adjust
the running speed of the program and the flash frequency.
