APPLICATIONS

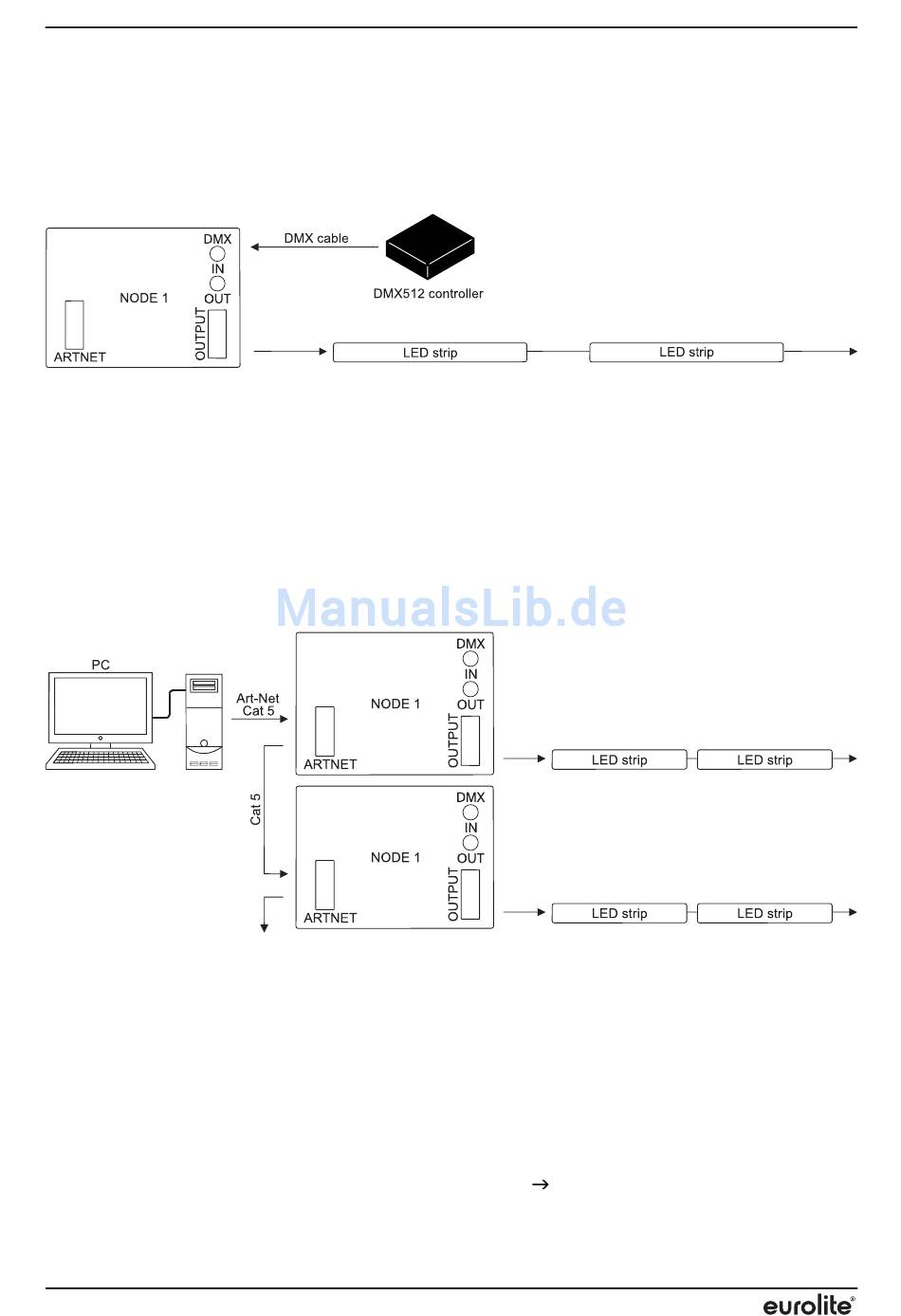

Controlling LED Strips via DMX

1
In the menu, select the operating mode "LED Tape" and the number of
pixels to be controlled.
2
Connect the DMX controller to the jack DMX IN and the LED strips to
the OUTPUT terminals.
3
Control the LED strips with the DMX controller.

Controlling LED Strips via Art-Net

1
Launch your lighting control software (e. g. MADRIX).
2
In the menu, select the operating mode "Artnet" > "Out Tape".
3
Connect one of the node's Ethernet ports to a computer network. If
necessary, connect several nodes in series. Connect the LED strips to
the OUTPUT terminals.
4
Map the LED strips in your software (under MADRIX e.g. with the
Generator or Patch).
5
Control the LED strips with the software ( documentation of the
software).
