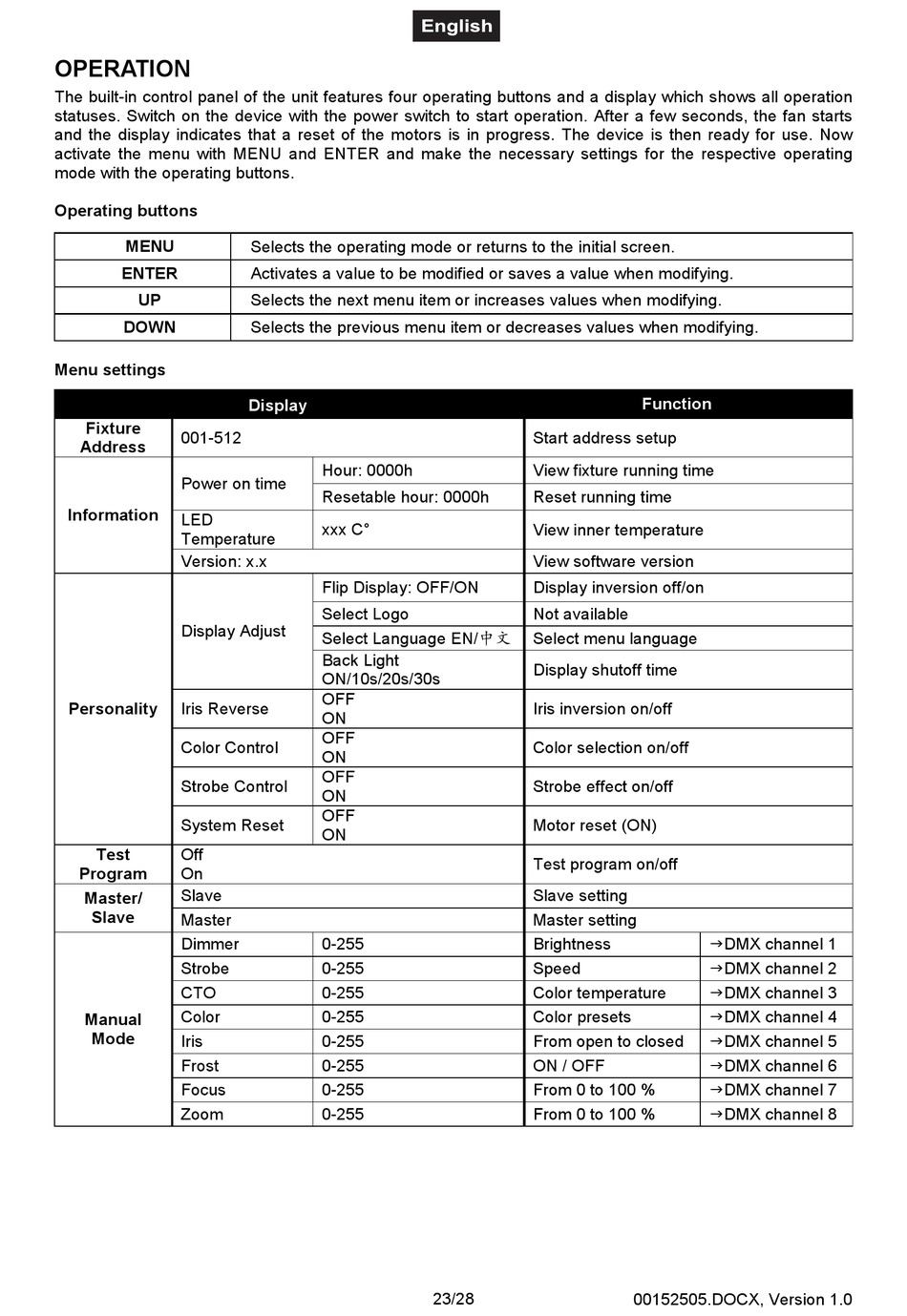

OPERATION

The built-in control panel of the unit features four operating buttons and a display which shows all operation
statuses. Switch on the device with the power switch to start operation. After a few seconds, the fan starts
and the display indicates that a reset of the motors is in progress. The device is then ready for use. Now
activate the menu with MENU and ENTER and make the necessary settings for the respective operating
mode with the operating buttons.
Operating buttons
MENU
ENTER
UP
DOWN
Menu settings
Fixture
001-512
Address
Power on time
Information
LED
Temperature
Version: x.x
Display Adjust
Personality Iris Reverse
Color Control
Strobe Control
System Reset
Test Off
Program On
Slave
Master/
Slave
Master
Dimmer
Strobe
CTO
Color
Manual
Mode
Iris
Frost
Focus
Zoom
Selects the operating mode or returns to the initial screen.
Activates a value to be modified or saves a value when modifying.
Selects the next menu item or increases values when modifying.
Selects the previous menu item or decreases values when modifying.
Display
Hour: 0000h
Resetable hour: 0000h
xxx C°
Flip Display: OFF/ON
Select Logo
Select Language EN/中文
Back Light
ON/10s/20s/30s
OFF
ON
OFF
ON
OFF
ON
OFF
ON
0-255
0-255
0-255
0-255
0-255
0-255
0-255
0-255
Start address setup
View fixture running time
Reset running time
View inner temperature
View software version
Display inversion off/on
Not available
Select menu language
Display shutoff time
Iris inversion on/off
Color selection on/off
Strobe effect on/off
Motor reset (ON)
Test program on/off
Slave setting
Master setting
Brightness
Speed
Color temperature
Color presets
From open to closed
ON / OFF
From 0 to 100 %
From 0 to 100 %
23/28
Function
DMX channel 1
DMX channel 2
DMX channel 3
DMX channel 4
DMX channel 5
DMX channel 6
DMX channel 7
DMX channel 8
