MECHANICAL FEATURES
The threaded inserts on the two sides of the speaker which allow it to be fixed to the bracket supplied using the
two screws and rubber washers included in the package.
For the IS4T model, the bracket provides two possible mounting positions; on the IS5T and IS6T there are three
possible positions.
For further details, refer to the WALL MOUNTING section in this manual.
PROTECTION AGAINST SOLID OBJECTS AND LIQUIDS (IP RATING)
The speakers are protected against the ingress of solid objects and liquids with a rating of IP32 as defined by
EN 60529.
To guarantee this specification is met, the speakers must be installed facing downwards with a tilt angle of at
least 15° to the vertical.
The cables connecting the speakers to the amplifier must have a diameter of at least 8 mm (0.31 inch).
Failure to comply with these installation prescriptions could adversely affect the declared
protection ratings.

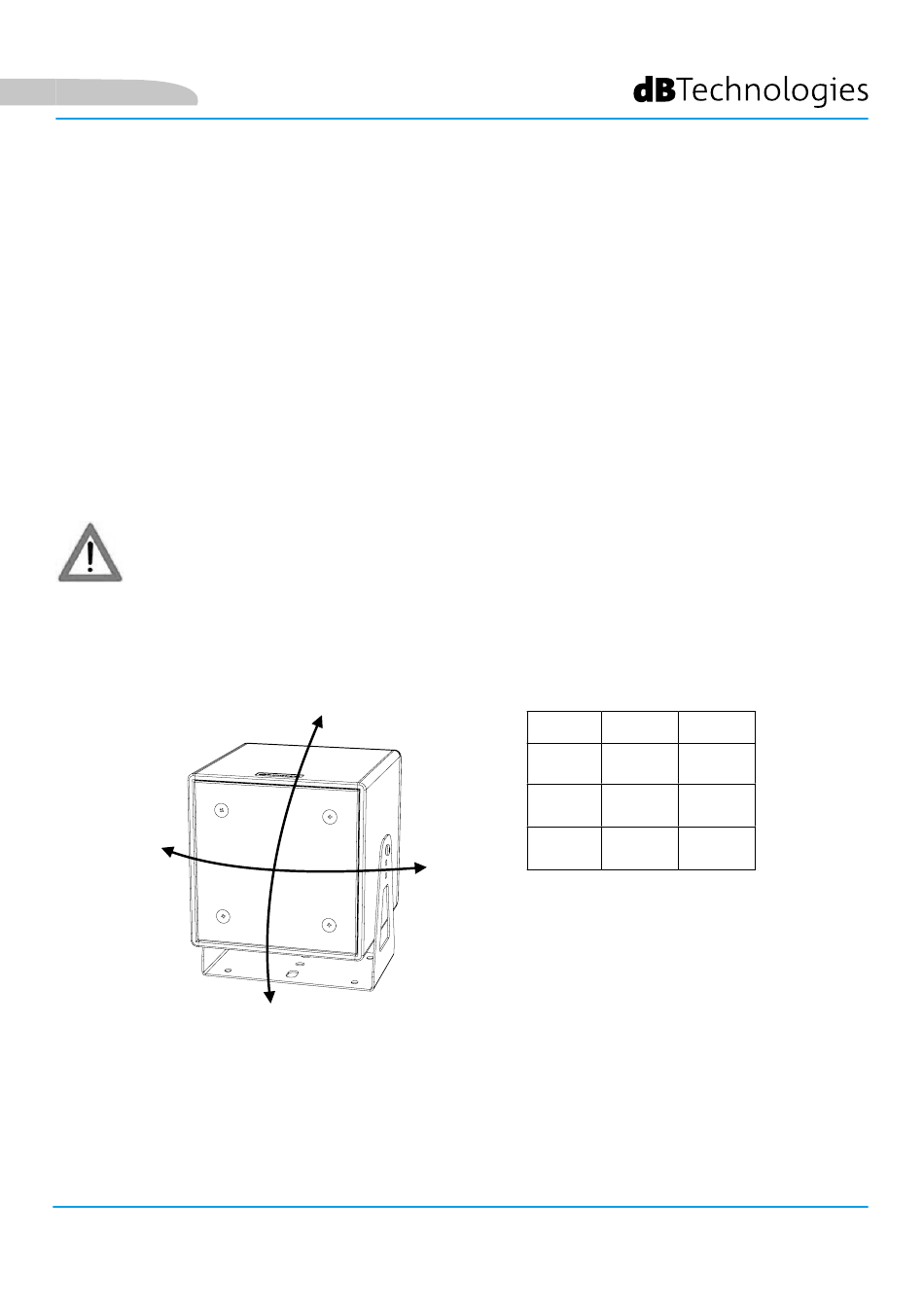

ACOUSTIC COVERAGE
For the IS4T and IS5T, the coverage is 110°x110°, while the IS6T has a coverage of 100°x100°.
IS4T-IS5T-IS6T
V
IMG_DISPERSIONE
IS4T
IS5T
IS6T
H
H V
110° 110°
110° 110°
100° 100°
