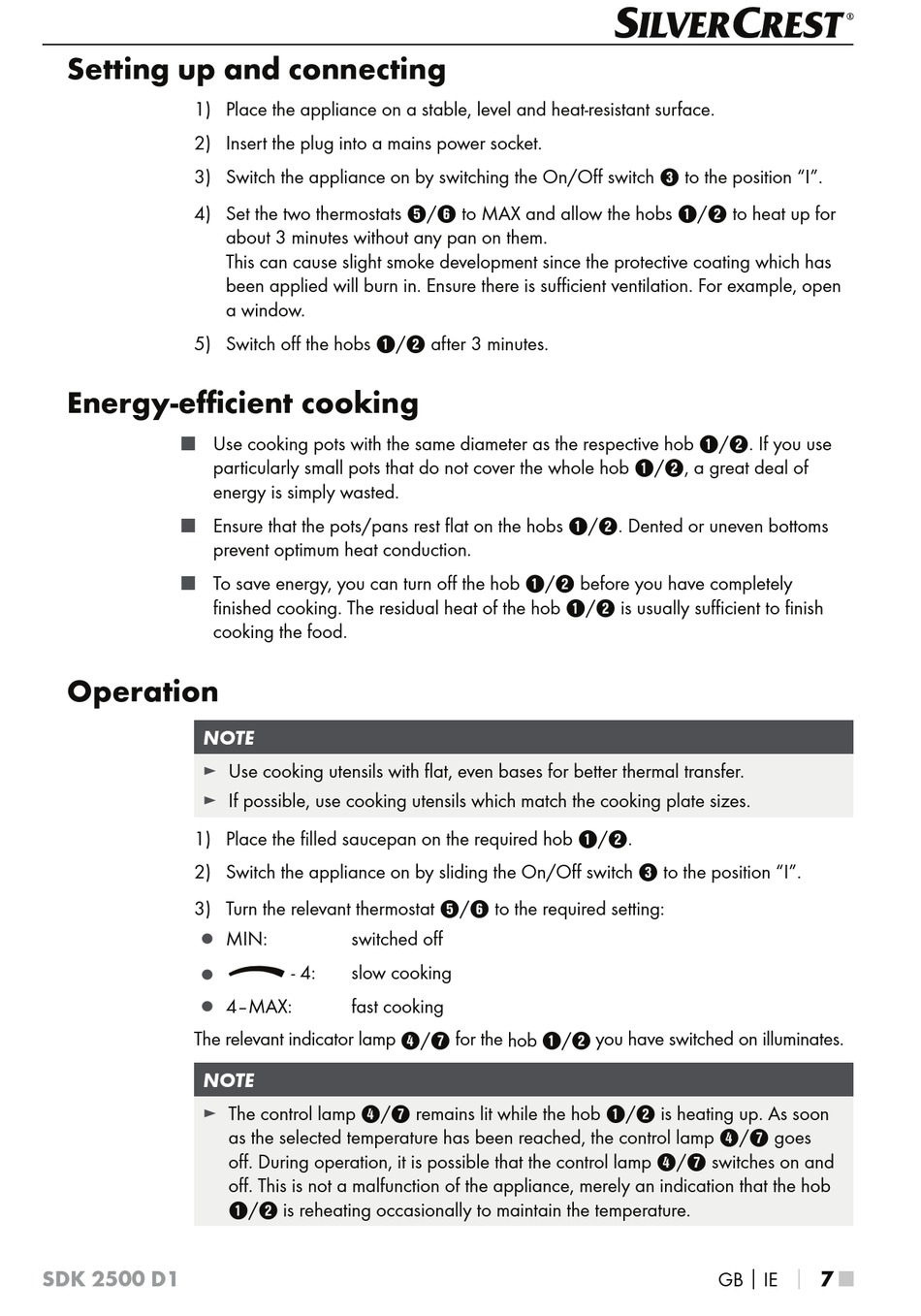

Setting up and connecting
1) Place the appliance on a stable, level and heat-resistant surface.
2) Insert the plug into a mains power socket.
3) Switch the appliance on by switching the On/Off switch 3 to the position "I".
4) Set the two thermostats 5/6 to MAX and allow the hobs 1/2 to heat up for
5) Switch off the hobs 1/2 after 3 minutes.
Energy-efficient cooking
Use cooking pots with the same diameter as the respective hob 1/2. If you use
■
particularly small pots that do not cover the whole hob 1/2, a great deal of
energy is simply wasted.
Ensure that the pots/pans rest flat on the hobs 1/2. Dented or uneven bottoms
■
prevent optimum heat conduction.
To save energy, you can turn off the hob 1/2 before you have completely
■
finished cooking. The residual heat of the hob 1/2 is usually sufficient to finish
cooking the food.
Operation
NOTE
►
►
1) Place the filled saucepan on the required hob 1/2.
2) Switch the appliance on by sliding the On/Off switch 3 to the position "I".
3) Turn the relevant thermostat 5/6 to the required setting:
▯
▯
▯
The relevant indicator lamp 4/7 for the hob 1/2 you have switched on illuminates.
NOTE
►
SDK 2500 D1
about 3 minutes without any pan on them.
This can cause slight smoke development since the protective coating which has
been applied will burn in. Ensure there is sufficient ventilation. For example, open
a window.
Use cooking utensils with flat, even bases for better thermal transfer.
If possible, use cooking utensils which match the cooking plate sizes.
MIN: switched off
- 4: slow cooking
4–MAX: fast cooking
The control lamp 4/7 remains lit while the hob 1/2 is heating up. As soon
as the selected temperature has been reached, the control lamp 4/7 goes
off. During operation, it is possible that the control lamp 4/7 switches on and
off. This is not a malfunction of the appliance, merely an indication that the hob
1/2 is reheating occasionally to maintain the temperature.
GB │ IE │
7 ■
