Start-up
7.3

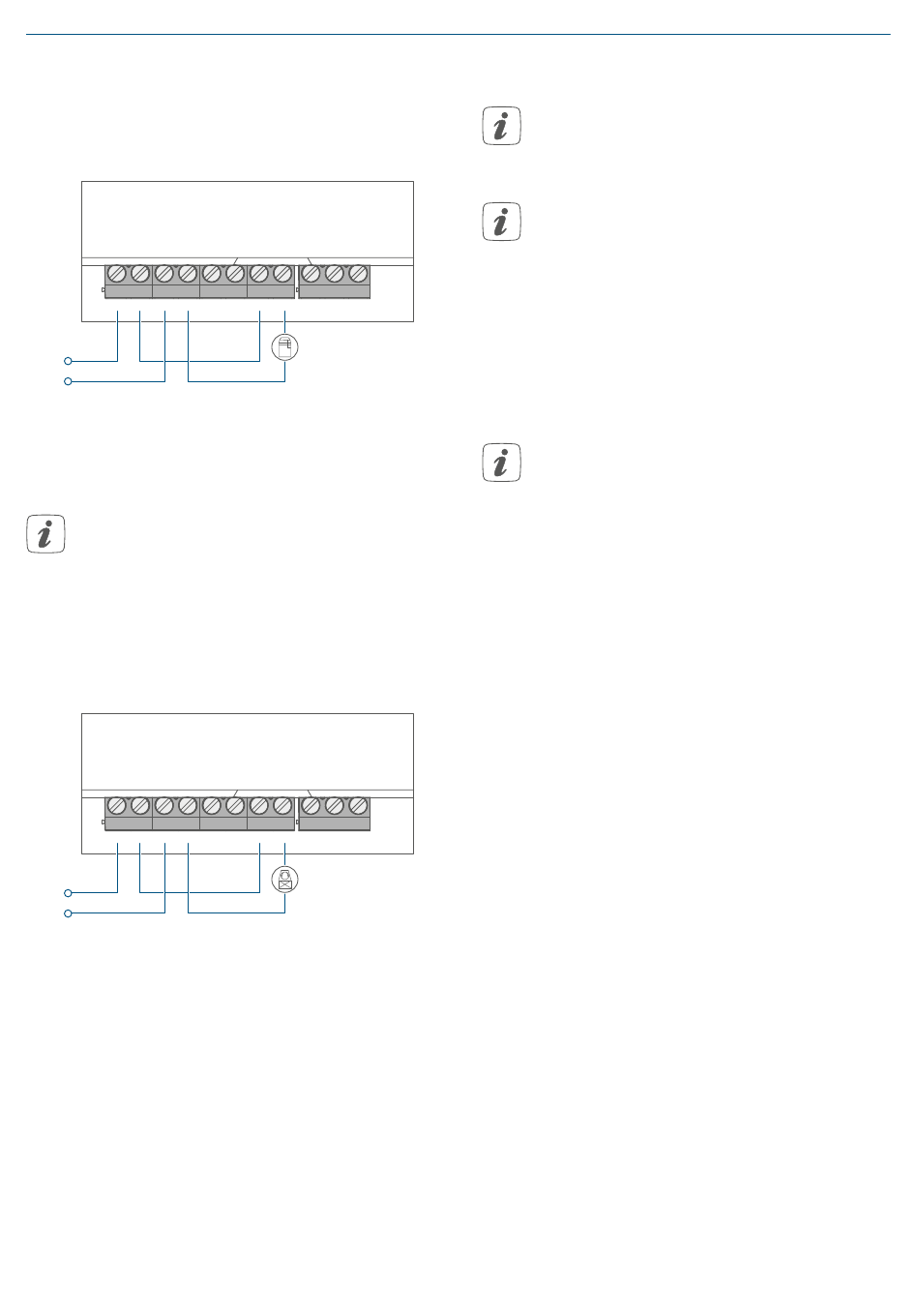

Connections

7.3.1

Boiler connection

L L N N
L
N
Figure 5
7.3.2

Air dehumidifier connection

This type of connection can be
realised only in conjunction with a
Homematic IP Access Point or
Homematic Central Control Unit
CCU3.
L L N N
L
N
Figure 6
▲ ▼ ▼ ▼ ▲
PE PE L 1 2 1 L
▲ ▼ ▼ ▼ ▲
PE PE L 1 2 1 L
7.4

Pairing

Please read this entire section
before starting the pairing proce-
dure.
You can connect the device either
to the Homematic IP Access Point
or the Central Control Unit CCU3.
Further information is available in
the Homematic IP User Guide
(available to download in the
Downloads section at
www.homematic-ip.com).
First set up your Homematic IP
Access Point using the
Homematic IP app so that you can
use other Homematic IP devices
in the system. For further informa-
tion, please refer to the Ac-
cess Point operating manual.
To integrate the switch actuator into
your system and enable it to communi-
cate with other devices, you must add
it first.
To add your switch actuator to the ac-
cess point, please proceed as follows:
• Open the Homematic IP app on
your smartphone.
• Select "Add device".
21
