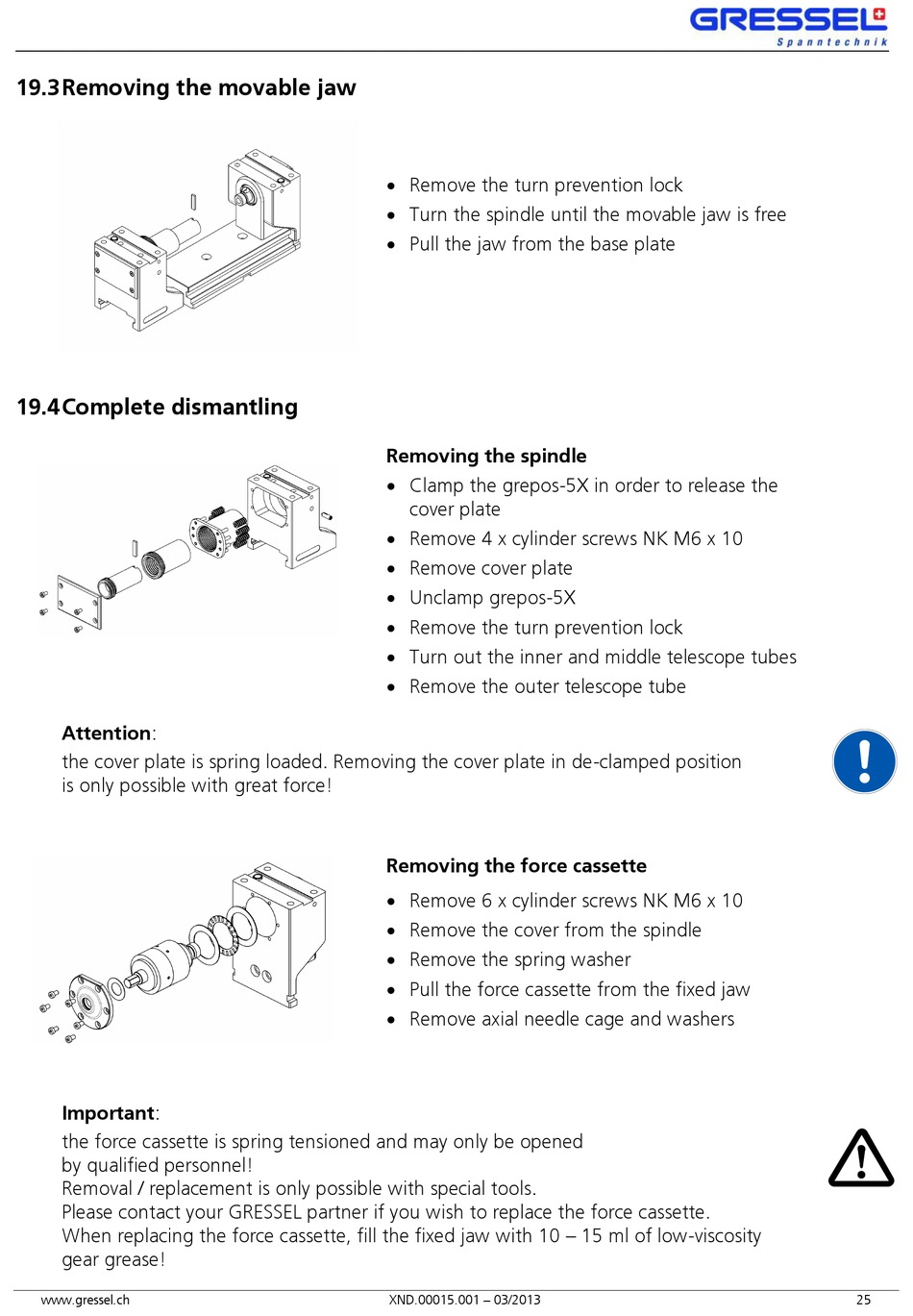

19.3 Removing the movable jaw

19.4 Complete dismantling

Attention:
the cover plate is spring loaded. Removing the cover plate in de-clamped position
is only possible with great force!
Important:
the force cassette is spring tensioned and may only be opened
by qualified personnel!
Removal / replacement is only possible with special tools.
Please contact your GRESSEL partner if you wish to replace the force cassette.
When replacing the force cassette, fill the fixed jaw with 10 – 15 ml of low-viscosity
gear grease!
www.gressel.ch
 Remove the turn prevention lock
 Turn the spindle until the movable jaw is free
 Pull the jaw from the base plate
Removing the spindle
 Clamp the grepos-5X in order to release the
cover plate
 Remove 4 x cylinder screws NK M6 x 10
 Remove cover plate
 Unclamp grepos-5X
 Remove the turn prevention lock
 Turn out the inner and middle telescope tubes
 Remove the outer telescope tube
Removing the force cassette
 Remove 6 x cylinder screws NK M6 x 10
 Remove the cover from the spindle
 Remove the spring washer
 Pull the force cassette from the fixed jaw
 Remove axial needle cage and washers
XND.00015.001 – 03/2013
