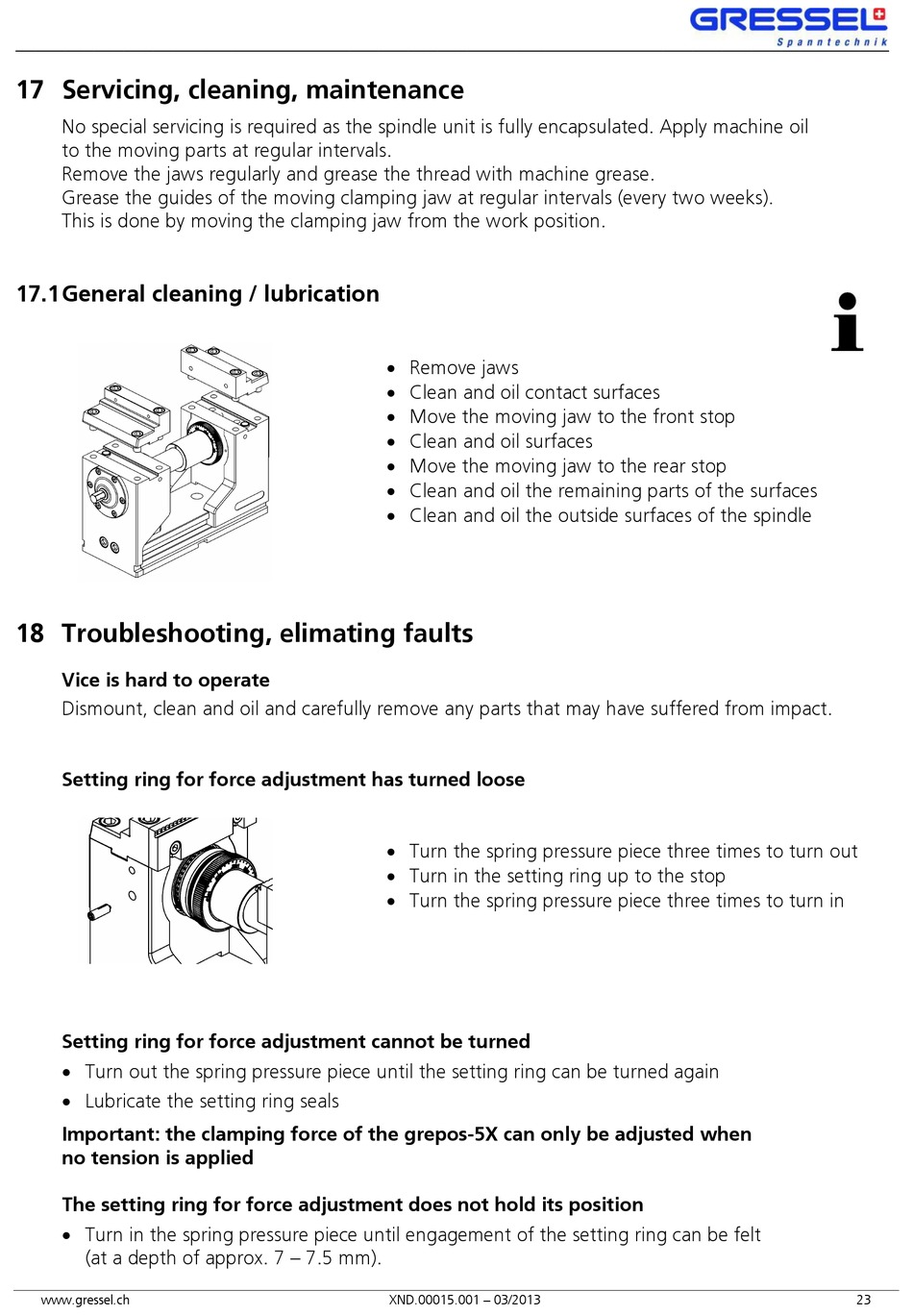

17 Servicing, cleaning, maintenance

No special servicing is required as the spindle unit is fully encapsulated. Apply machine oil
to the moving parts at regular intervals.
Remove the jaws regularly and grease the thread with machine grease.
Grease the guides of the moving clamping jaw at regular intervals (every two weeks).
This is done by moving the clamping jaw from the work position.

17.1 General cleaning / lubrication

18 Troubleshooting, elimating faults

Vice is hard to operate
Dismount, clean and oil and carefully remove any parts that may have suffered from impact.
Setting ring for force adjustment has turned loose
Setting ring for force adjustment cannot be turned
 Turn out the spring pressure piece until the setting ring can be turned again
 Lubricate the setting ring seals
Important: the clamping force of the grepos-5X can only be adjusted when
no tension is applied
The setting ring for force adjustment does not hold its position
 Turn in the spring pressure piece until engagement of the setting ring can be felt
(at a depth of approx. 7 – 7.5 mm).
www.gressel.ch
 Remove jaws
 Clean and oil contact surfaces
 Move the moving jaw to the front stop
 Clean and oil surfaces
 Move the moving jaw to the rear stop
 Clean and oil the remaining parts of the surfaces
 Clean and oil the outside surfaces of the spindle
 Turn the spring pressure piece three times to turn out
 Turn in the setting ring up to the stop
 Turn the spring pressure piece three times to turn in
XND.00015.001 – 03/2013 23
