DESCRIPTION OF THE CHAIR

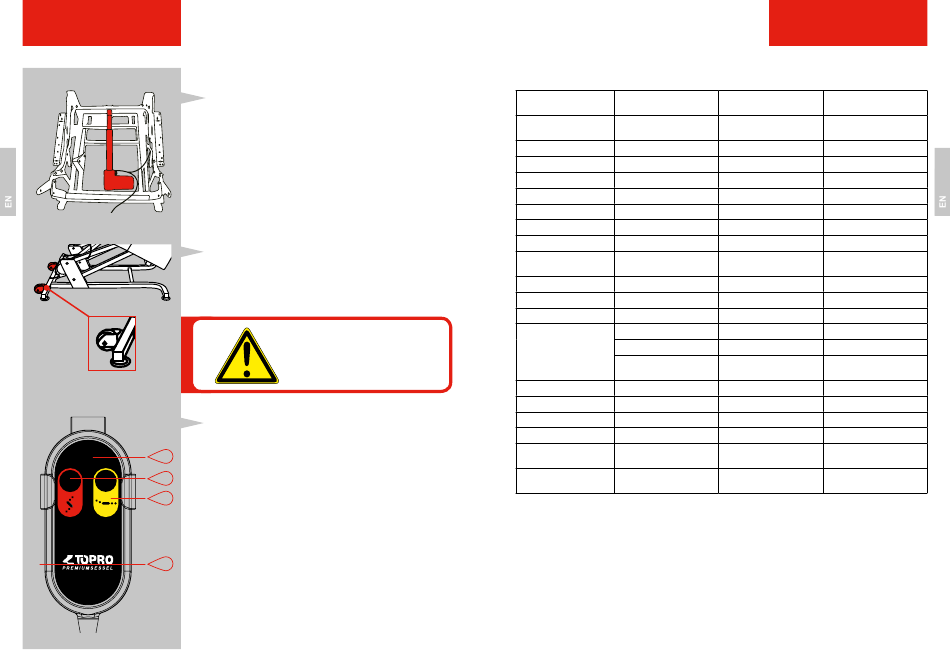

Chart 3: Frame and motor
Chart 4: Underframe with wheels
1
2
3
4
Chart 5: Remote control
46

4.4 Structure and components

4 4 1 Frame and motor

Motor (marked red) controls footrest, backrest and
standing-up function.

4 4 2 Underframe with wheels

With the two integrated wheels the chair can be
easily moved from one place to another. To move the
chair, balance it on the wheels on the backside of the
chair.
DANGER!
Moving of the chair whilst another
person is seated can be very
dangerous and is therefore
forbidden!

4 4 3 Remote control

1. 1. Signal lamp glows if a button is pushed.
2. Red button: Sitting straight and support for
standing-up
3. Yellow button: Support for sitting down and
reclining of backrest.
4. Port for Safety-Pin (see chapter 5.2.3)

4.5 Technical specifications

Mechanical
Seat width
specifications
Seat height
Seat depth
Body size
Backrest height
Backrest tilt angle
Chair height
Chair width
Chair length in lying
position
Maximum load
Space needed
Weight
Electrical
Operating voltage
specifications
Control voltage
Strength of electric
current
Rated voltage range
Rated frequency range
Rated input
Place of installation
Operation mode 1)
at max rated load
Max Adjustment
speed 2)
1) O perating mode = Intermittent operation of 2 min/18 min, which means maximum use of
2 minutes under max. rated load, afterwards there has to be a required pause interval of
18 minutes. Otherwise malfunctioning can happen!
2) Adjustment speed = Speed at which the clevis travels (speed varies according to the load).
DESCRIPTION OF THE CHAIR
Model Model
Modena Siena
51cm 51cm
43,5 cm 45,5 cm
52 cm 54 cm
ca. 160-180 cm ca. 160-180 cm
61,5 cm 57,5 cm
ca. 158º degree ca. 158º degree
105 cm 103 cm
83 cm 80 cm
162 cm 162 cm
150 kg 150 kg
162 x 80 cm 162 x 80 cm
42,30 kg 46,50 kg
230 Volt 230 Volt
24 Volt 24 Volt
6 Amp 6 Amp
100-240 V 100-240 V
50-60 Hz 50-60 Hz
345 W 345 W
Inside Inside
10 % / max. 10 % / max.
5 Schaltzyklen 5 Schaltzyklen
44 mm/s 44 mm/s
