AS-Interface Sensormodul

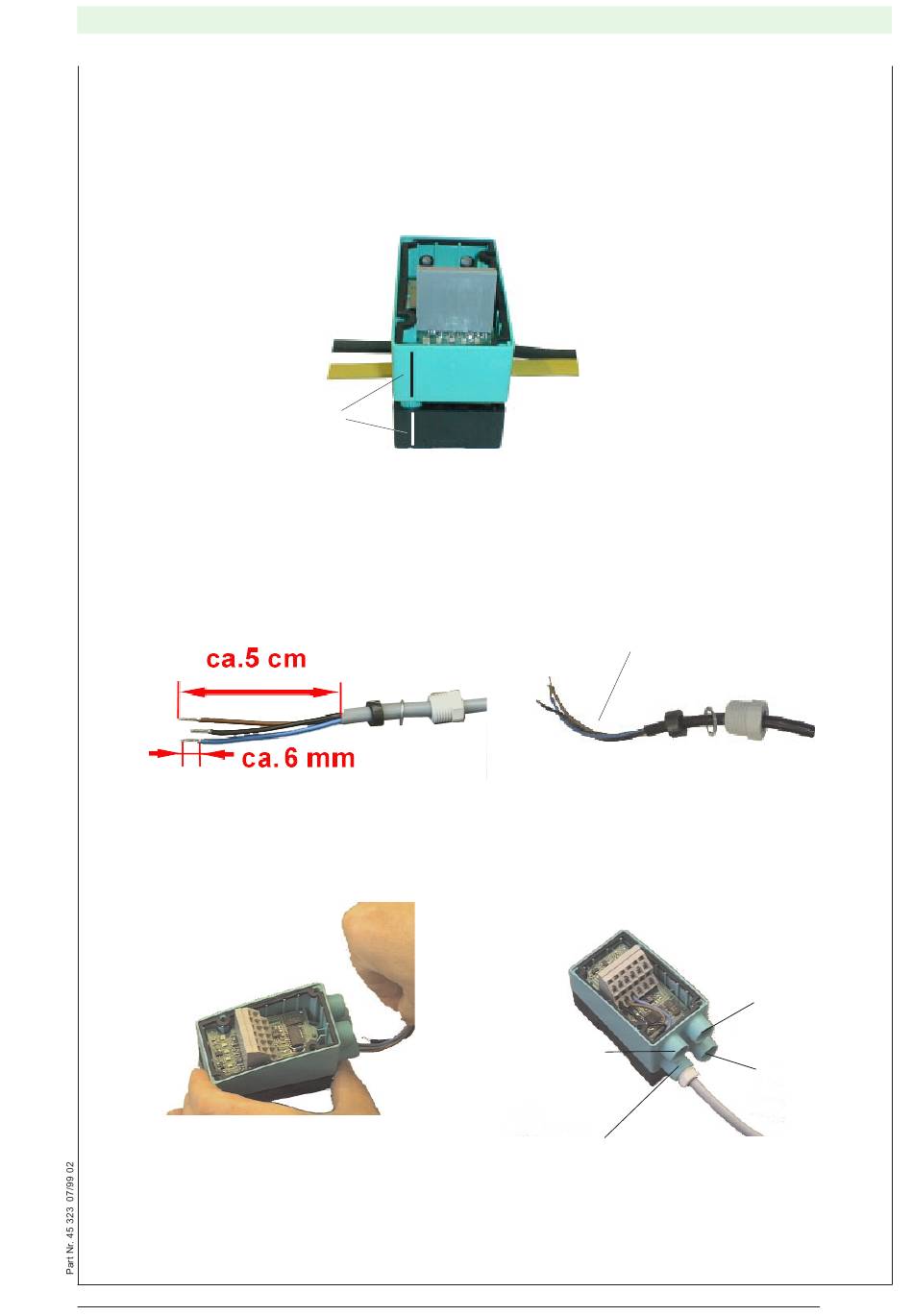

Description "Handling G4-Modules with bottom parts U-G1F or U-G1FF"
The mounting of G4-Modules needs 4 steps:
1. Mount the bottom part at the correct place. To make the mounting easier, the top and the bottom part are
marked with a nut. Insert the AS-i insert the AS-i flat cable and, if necessary, the flat cable for external power
supply.
Note at mounting
2. If the middle part is not pre-addressed, address it now. Place the middle part onto the bottom part and press it
on.
3. Put the screw fittings on the sensor/actuator cable.
Connect the de-insulated sensor/actuator cable in sequence 3, 4, 2, 1.
4. Draw up the PG7 screw fitting and the top part.
Subject to reasonable modifications due to technical advances.
Pepperl+Fuchs Group · Tel.: Germany (6 21) 7 76-11 11 · USA (3 30) 4 25 35 55 · Singapore 7 79 90 91 · Internet http://www.pepperl-fuchs.com
Elektronic Output
Cabel bended
1
3
Copyright Pepperl+Fuchs, Printed in Germany
2
4
3
