Geberit Mapress adapter jaws [2XL] and [3]

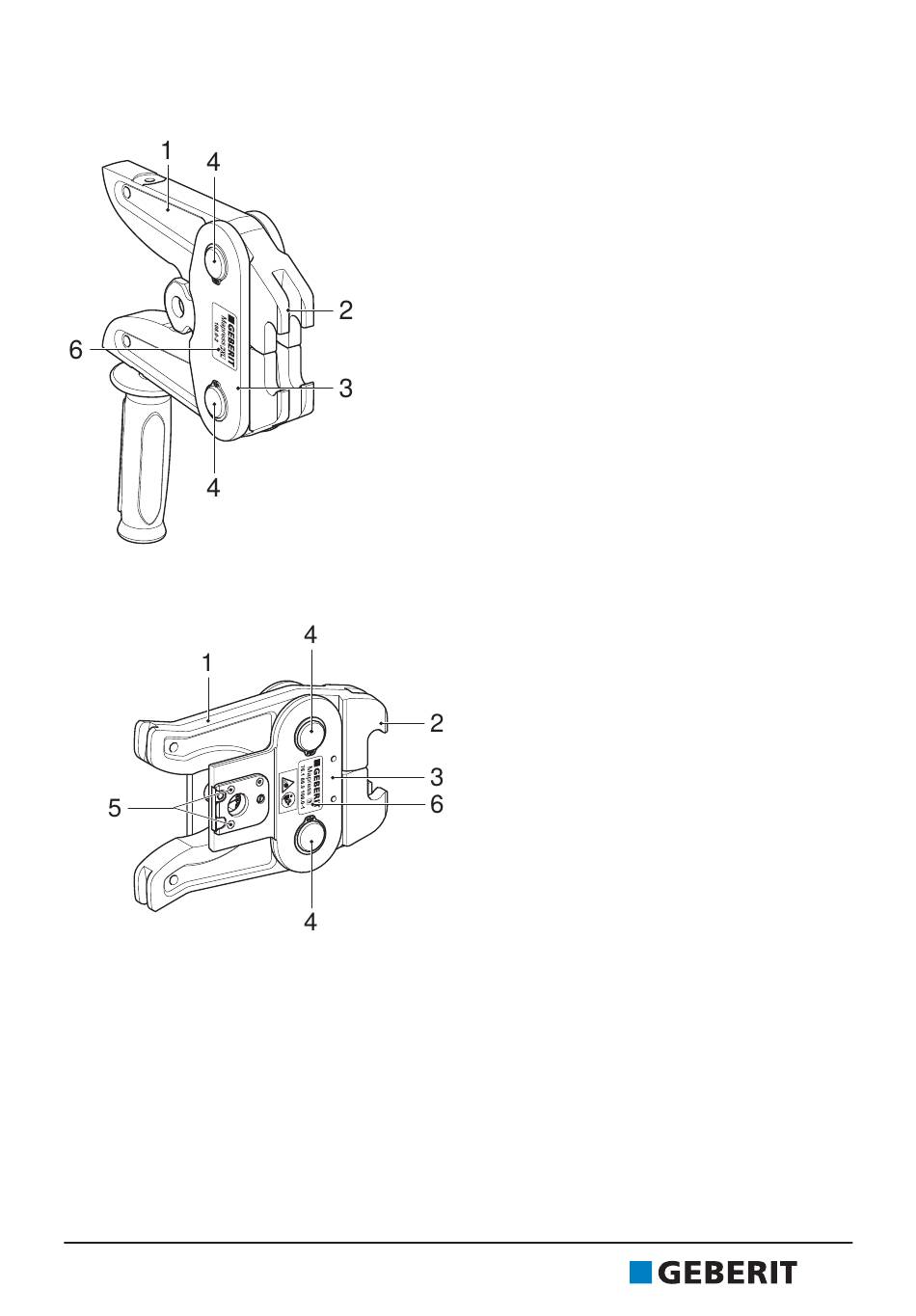

Figure 3: Geberit Mapress adapter jaw [2XL], ZB 221 and ZB 222
Figure 4: Geberit Mapress adapter jaw [3], ZB 323 and ZB 324
1 Jaw lever
2 Claw
3 Flange
4 Jaw joints
5 Electrical contacts
6 Compatibility mark
