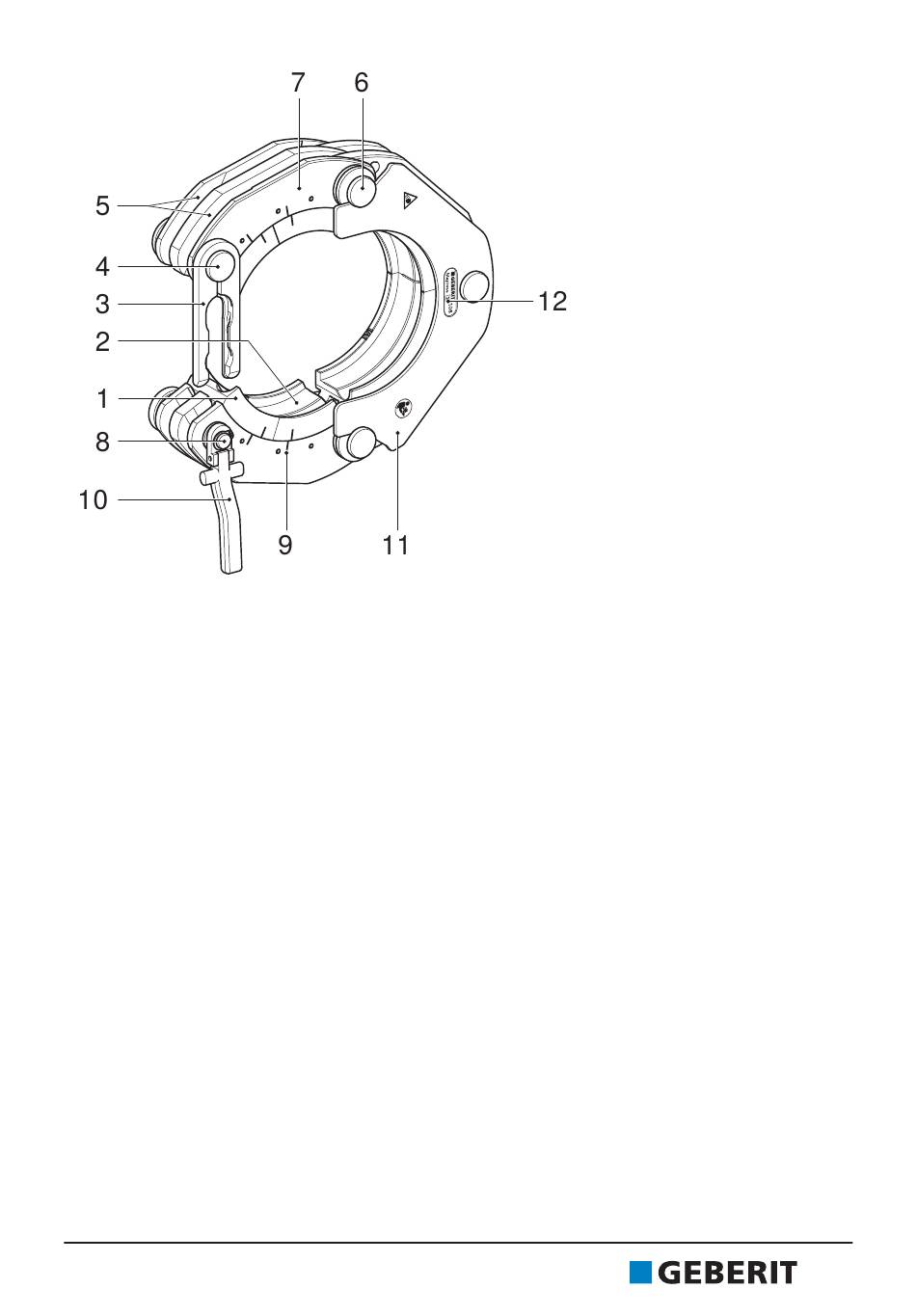

Figure 2: Geberit Mapress pressing collar d108
1 Sliding segments
2 Pressing contour
3 Locking lug
4 Pins and contact
5 Grooves
6 Collar joints
7 Segment shells
8 Locking pin with contact
9 Marks
10 Release lever
11 Centring plate
12 Compatibility mark
