Assembly Instructions

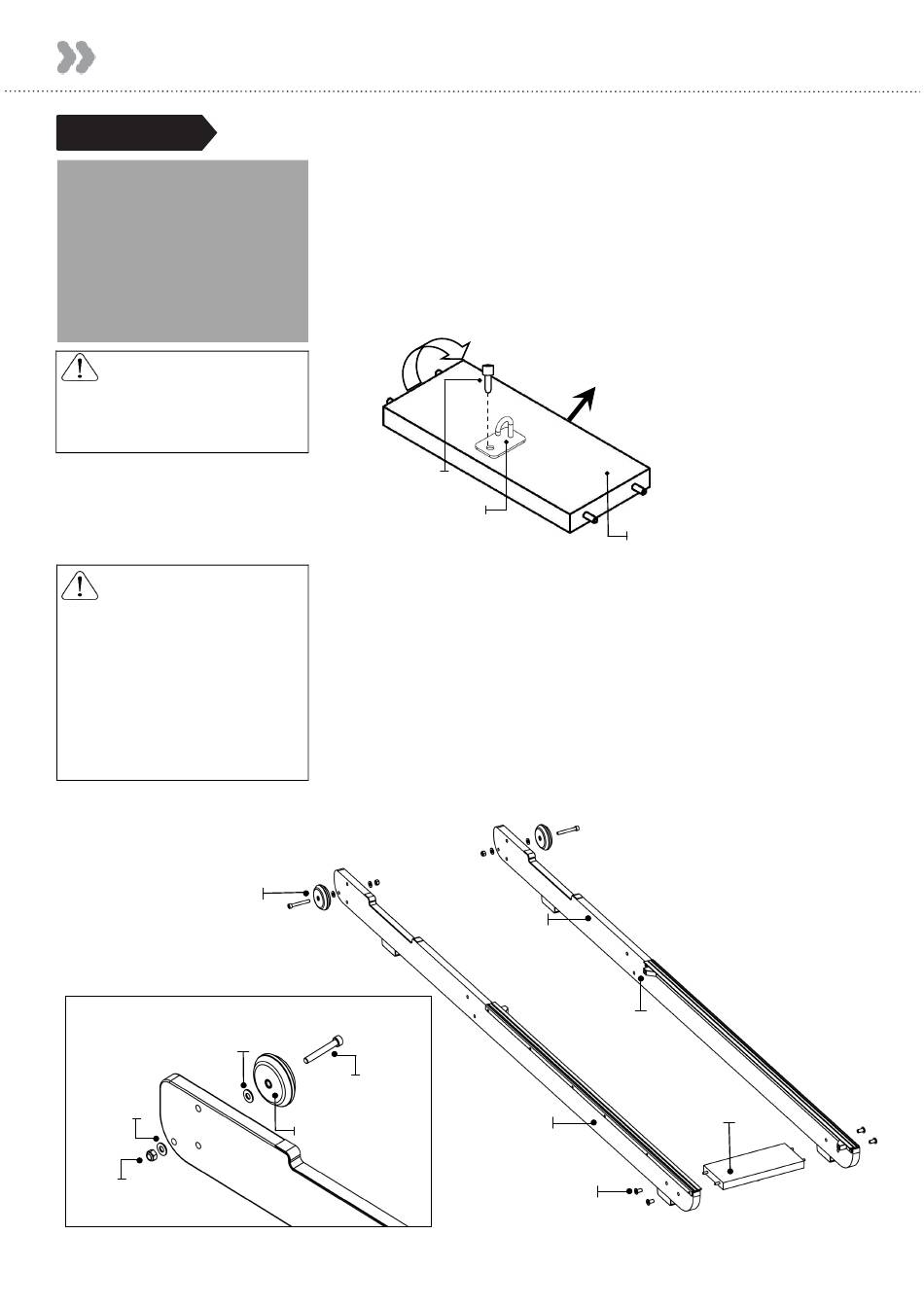

Installing the Rear Brace and Transport Wheel
STEP 1
onto the Side Rails
REQUIRED
Side Rail Left / Right [2]
Rear Brace [4]
Bungee Hook Mount [5]
Transport Wheel Assembly [6]
4x M6x15mm Bolts [12]
WARNING
Rotate Rear Brace to correct
orientation before assembly
onto Side Rails
WARNING
Note Transport wheels must
be mounted on the outside of
Side Rails As shown below.
Do not over tighten the
Transport Wheel Axle as it
may inhibit Transport Wheel
.
rotation
Transport Wheel
Transport Wheel Assembly
M8 Washer
M8 Washer
M8 Nylock Nut
a) Start with the Rear Brace and on the underside you will
find a Pre-installed Bolt. From the Hardware Kit, take
the Bungee Hook Mount and install it onto the Rear
Brace as shown. Note the orientation of the Brace and
the Hook must be correct in order to hold the end of the
Bungee Shock Cord as depicted by the arrow in the
illustration, which points toward the front of Rower.
Pre-installed Bolt
Bungee Hook Mount
b) Next, connect the Side Rail Left and Side Rail Right[2]
using 4x M6x15mm Bolts[12] and Rear Brace[4].
DO NOT TIGHTEN.
Tip: Bumpstops facing inside of the Rail for correct
assembly orientation.
c) Once the Rear Brace and Side Rails are assembled,
mount the Transport Wheel Assembly[6] onto the
Left/Right Side Rails[2].
Note: One Washer on outside and one Washer on the
inside of the Side Rail.
Side Rail Right
M8 x 60mm Bolt
Side Rail Left
Transport Wheel
M6x15mm Bolts
9
Towards Front of Rower
Rear Brace (Underside)
Bumpstop
Rear Brace
