operation of the power tool. If the power
tool is damaged, it is necessary to have it
repaired before using it again. Many accidents
are caused by insufficiently maintained power tools.
f) It is necessary to keep cutting power tools
clean and sharp. Correctly maintained and sharpe-
ned cutting power tools are less likely to get stuck on
material or to jam and they are also easier to control.
g) It is necessary to use power tools, accesso-
ries, working tools, etc. in accordance with
these instructions and in such a manner as
prescribed for the specific power tool with
respect to the given work conditions and the
type of work being performed. Using power
tools for tasks other than for which they are designed
may lead to dangerous situations.
h) Handles and grip surfaces must be kept dry,
clean and free of grease. Slippery handles and
grip surfaces do not ensure a safe grip and control
over the power tool in unexpected situations.
5) OPERATING AND MAINTAINING COR-
DLESS POWER TOOLS
a) The power tool charge only using the char-
ger specified by the manufacturer. A charger
that may be suitable for one type of battery pack,
may lead to a fire hazard if used with a different
battery pack.
b) Only use the tool with a battery pack that is
explicitly determined for the given tool. Using any
other battery pack may create a accident or fire hazard.
c) When the battery pack is not being used,
protect it against contact with other metal
items such as paper clips, coins, keys, nails,
screws or other small metal items that could
make a connection between both battery
contacts. Short circuiting the battery contacts may
cause burns or a fire.
d) Incorrect use may cause liquids to leak out of
the battery; avoid coming into contact with
them. In the event of accidental contact with
these liquids, rinse the affected area with
water. In the event that the liquid enters the
eye, seek medical help. Liquids leaking from the
battery may cause inflammations or burns.
EN
e) A battery pack or power tool that is damaged
or modified, must not be used. Damaged or
modified batteries may behave erratically, which may
result in a fire, an explosion or an injury hazard.
f) Battery packs or power tools must not be
exposed to a fire or excessive heat. Exposure
to fire or a temperature exceeding 130°C may result
in an explosion.
g) It is necessary to adhere to all battery
charging instructions and not to charge the
battery pack or power tool outside the tempe-
rature range specified in this user's manual.
Incorrect charging, or charging at temperatures
outside the specified range may damage the battery
and increase the risk of fire.
6) SERVICE
a) Have your cordless power tool repaired by
a qualified person using identical spare parts.
This will ensure that the same level of safety will be
achieved as before the repair of the power tool.
b) Damaged battery packs must never be
repaired. The battery pack should only be repaired
by the manufacturer or at an authorised service centre.
IX. Maintenance and Repair
y Before carrying out servicing (maintenance) tasks,
remove the battery from the power tool to
reduce the risk of accidental start up. When
performing service maintenance, particularly when
handling the blades, use protective gloves - risk of cuts
on the sharp cutting edge.
y Only original spare parts of the manufacturer may be
used for repairs.
SPARE PARTS
AVAILABLE FOR PURCHASE IF REQUIRED
Name of the replace-
Part number
ment part
Top and bottom cutting
402456C
edge
Cutting edge fastening
402456D
bolt with accessories
Table 3
52

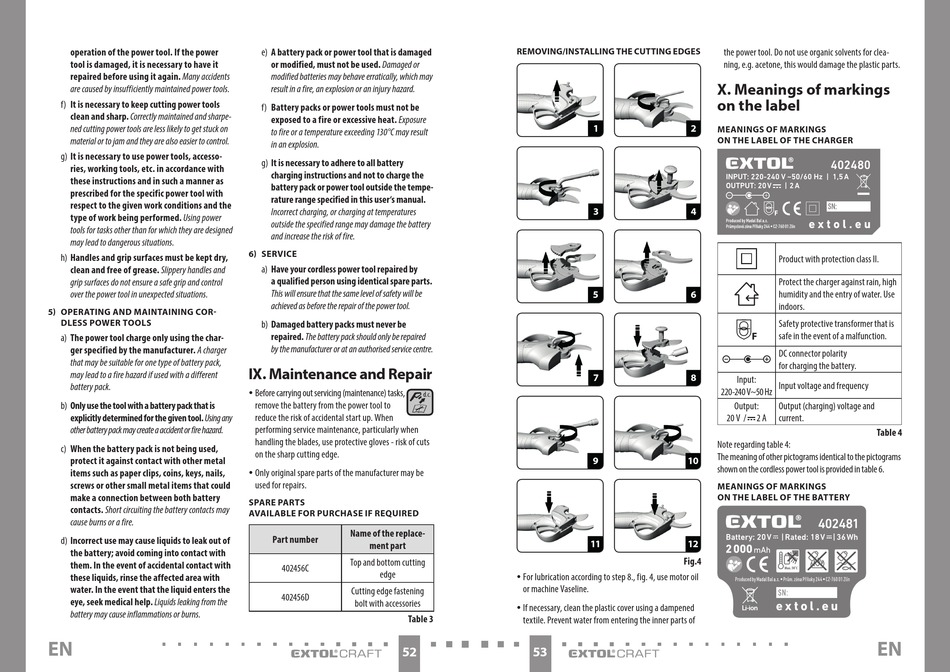

REMOVING/INSTALLING THE CUTTING EDGES
1 2
3 4
5 6
7 8
9 10
11 12
Fig.4
y For lubrication according to step 8., fig. 4, use motor oil
or machine Vaseline.
y If necessary, clean the plastic cover using a dampened
textile. Prevent water from entering the inner parts of
53
the power tool. Do not use organic solvents for clea-
ning, e.g. acetone, this would damage the plastic parts.
X. Meanings of markings
on the label
MEANINGS OF MARKINGS
ON THE LABEL OF THE CHARGER
Product with protection class II.
Protect the charger against rain, high
humidity and the entry of water. Use
indoors.
Safety protective transformer that is
safe in the event of a malfunction.
DC connector polarity
for charging the battery.
Input:
Input voltage and frequency
220-240 V~50 Hz
Output: Output (charging) voltage and
20 V / 2 A current.
Table 4
Note regarding table 4:
The meaning of other pictograms identical to the pictograms
shown on the cordless power tool is provided in table 6.
MEANINGS OF MARKINGS
ON THE LABEL OF THE BATTERY
Max. 50˚C
