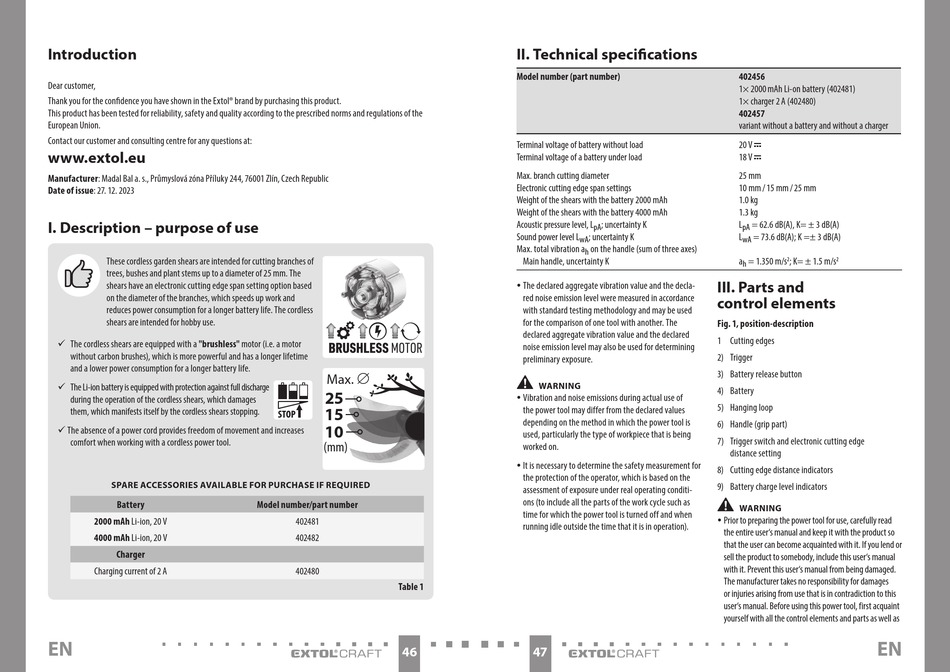

Introduction
EN
Dear customer,
Thank you for the confidence you have shown in the Extol® brand by purchasing this product.
This product has been tested for reliability, safety and quality according to the prescribed norms and regulations of the
European Union.
Contact our customer and consulting centre for any questions at:
www.extol.eu
Manufacturer: Madal Bal a. s., Průmyslová zóna Příluky 244, 76001 Zlín, Czech Republic
Date of issue: 27. 12. 2023
I. Description – purpose of use
These cordless garden shears are intended for cutting branches of
trees, bushes and plant stems up to a diameter of 25 mm. The
shears have an electronic cutting edge span setting option based
on the diameter of the branches, which speeds up work and
reduces power consumption for a longer battery life. The cordless
shears are intended for hobby use.
 The cordless shears are equipped with a "brushless" motor (i.e. a motor
without carbon brushes), which is more powerful and has a longer lifetime
and a lower power consumption for a longer battery life.
 The Li-ion battery is equipped with protection against full discharge
during the operation of the cordless shears, which damages
them, which manifests itself by the cordless shears stopping.
 The absence of a power cord provides freedom of movement and increases
comfort when working with a cordless power tool.
SPARE ACCESSORIES AVAILABLE FOR PURCHASE IF REQUIRED
Battery
2000 mAh Li-ion, 20 V
4000 mAh Li-ion, 20 V
Charger
Charging current of 2 A
EN
∅
Max.
25
15
10
(mm)
Model number/part number
402481
402482
402480
Table 1
46
II. Technical specifications
Model number (part number)
Terminal voltage of battery without load
Terminal voltage of a battery under load
Max. branch cutting diameter
Electronic cutting edge span settings
Weight of the shears with the battery 2000 mAh
Weight of the shears with the battery 4000 mAh
Acoustic pressure level, L ; uncertainty K
pA
Sound power level L ; uncertainty K
wA
Max. total vibration a on the handle (sum of three axes)
h
Main handle, uncertainty K
y The declared aggregate vibration value and the decla-
red noise emission level were measured in accordance
with standard testing methodology and may be used
for the comparison of one tool with another. The
declared aggregate vibration value and the declared
noise emission level may also be used for determining
preliminary exposure.
•
WARNING
y Vibration and noise emissions during actual use of
the power tool may differ from the declared values
depending on the method in which the power tool is
used, particularly the type of workpiece that is being
worked on.
y It is necessary to determine the safety measurement for
the protection of the operator, which is based on the
assessment of exposure under real operating conditi-
ons (to include all the parts of the work cycle such as
time for which the power tool is turned off and when
running idle outside the time that it is in operation).
47
402456
1× 2000 mAh Li-on battery (402481)
1× charger 2 A (402480)
402457
variant without a battery and without a charger
20 V
18 V
25 mm
10 mm / 15 mm / 25 mm
1.0 kg
1.3 kg
L = 62.6 dB(A), K= ± 3 dB(A)
pA
L = 73.6 dB(A); K =± 3 dB(A)
wA
a = 1.350 m/s 2 ; K= ± 1.5 m/s 2
h
III. Parts and
control elements
Fig. 1, position-description
1 Cutting edges
2) Trigger
3) Battery release button
4) Battery
5) Hanging loop
6) Handle (grip part)
7) Trigger switch and electronic cutting edge
distance setting
8) Cutting edge distance indicators
9) Battery charge level indicators
•
WARNING
y Prior to preparing the power tool for use, carefully read
the entire user's manual and keep it with the product so
that the user can become acquainted with it. If you lend or
sell the product to somebody, include this user's manual
with it. Prevent this user's manual from being damaged.
The manufacturer takes no responsibility for damages
or injuries arising from use that is in contradiction to this
user's manual. Before using this power tool, first acquaint
yourself with all the control elements and parts as well as
EN
