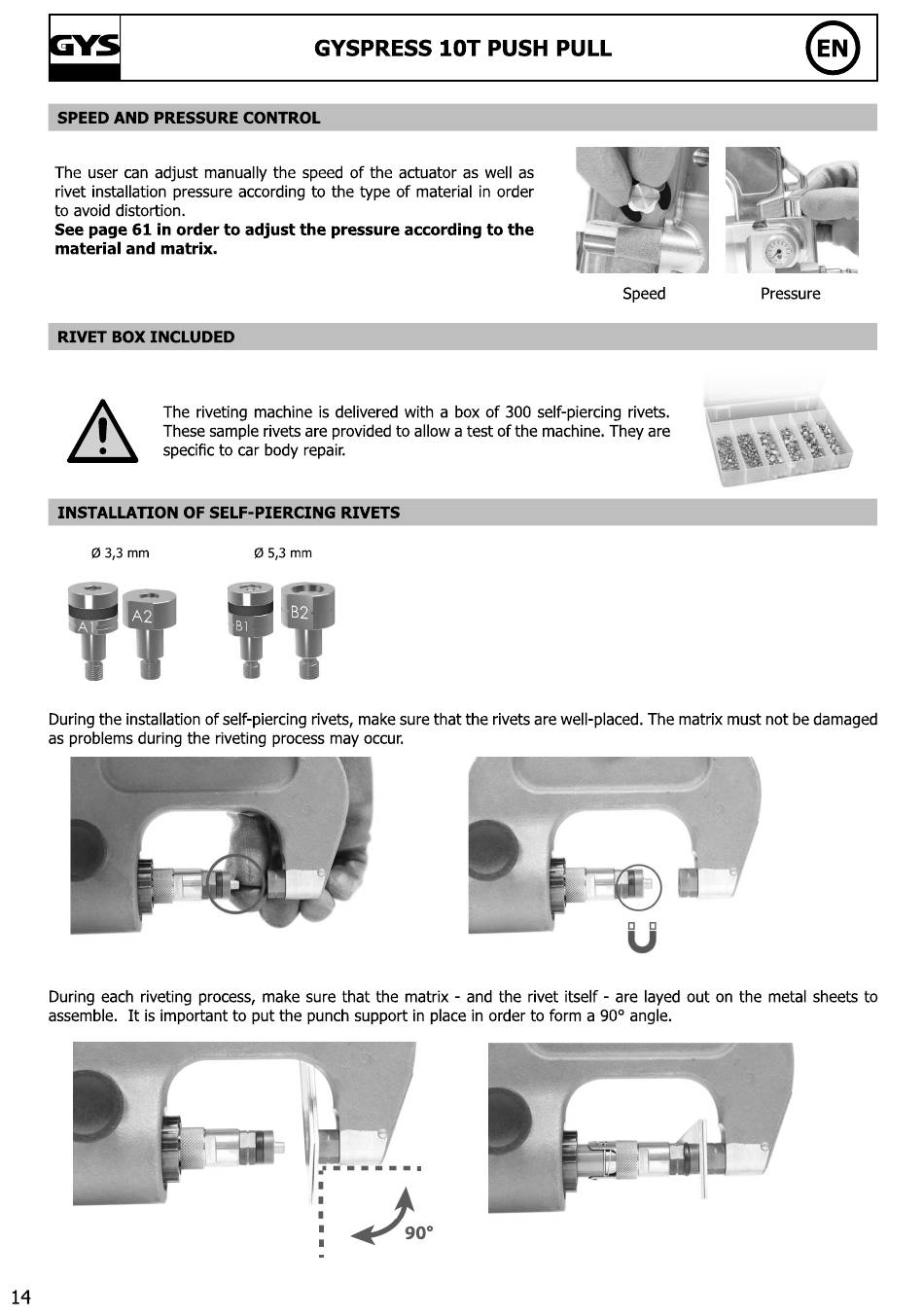

SPEED
AND
PRESSURE
The user can adjust manually the speed of the actuator as well as
rivet installation
pressure according to the type of material in order
to avoid
distortion.
See page 61 in order
material
and
matrix.
RIVET
BOX
INCLUDED
The riveting machine is delivered with a box of 300 self-piercing
These sample rivets are provided to allow a test of the machine. They are
specific to car body repair.
INSTALLATION
OF SELF-PIERCING
Ø 3,3 mm
During the installation of self-piercing rivets, make sure that the rivets are well-placed. The matrix must not be damaged
as problems during the riveting process may occur.
During each riveting process, make sure that the matrix - and the rivet itself - are layed out on the metal sheets to
assemble. It is important to put the punch support in place in order to form a 900 angle.
14
GYSPRESS
CONTROL
to adjust
the pressure
RIVETS
Ø 5,3 mm
1
IOT
PUSH
PULL
according
to the
900
Speed
Pressure
rivets.
EN
