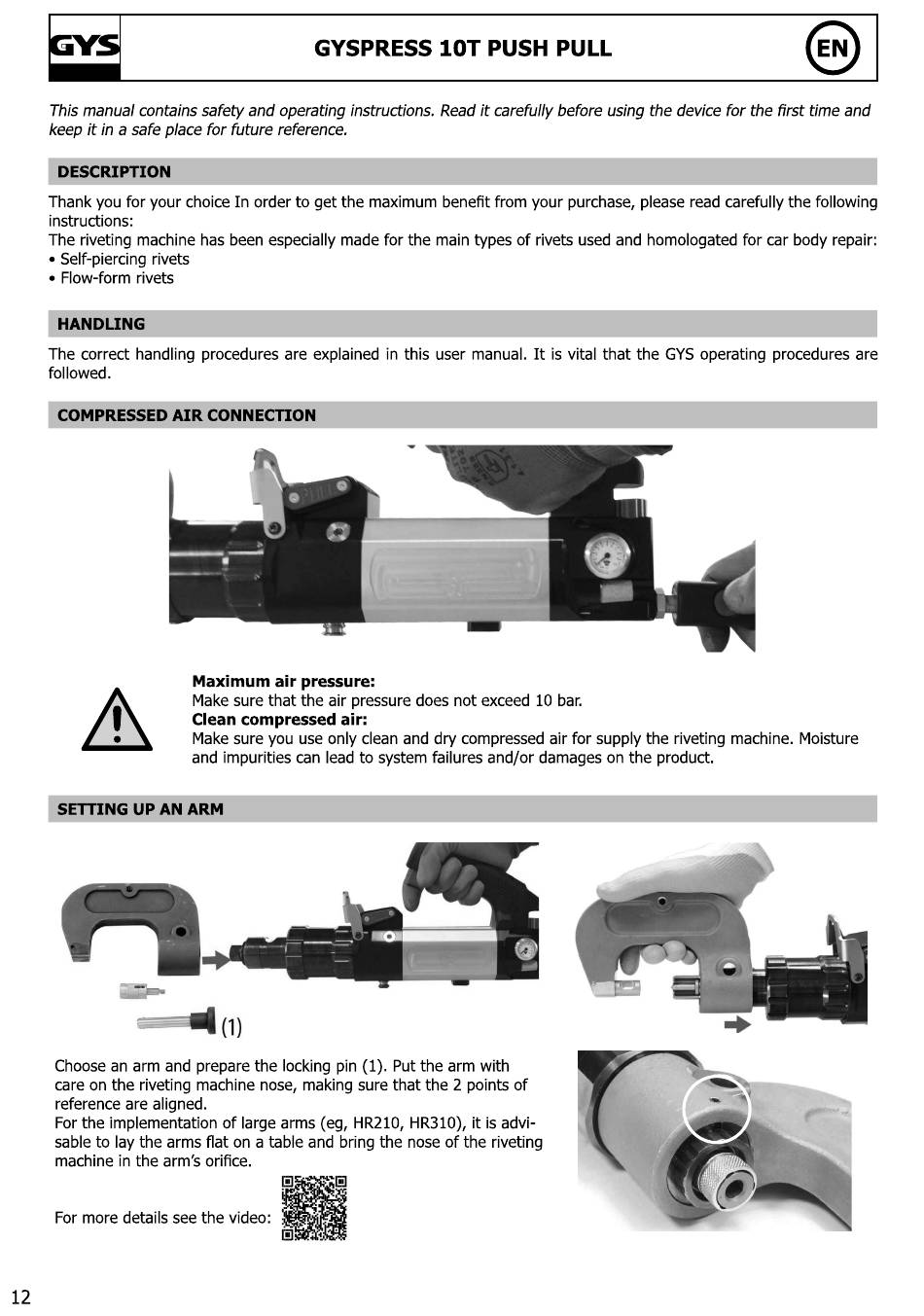

This manual contains safety and operating instructions. Read it carefully before using the device for the first time and
keep it in a safe place for future reference.
DESCRIPTION
Thank you for your choice In order to get the maximum benefit from your purchase, please read carefully the following
instructions:
The riveting machine has been especially made for the main types of rivets used and homologated for car body repair:
• Self-piercing rivets
• Flow-form
rivets
HANDLING
The correct handling procedures are explained in this user manual. It is vital that the GYS operating
followed.
COMPRESSED
AIR
SETTING
UP
AN
Choose an arm and prepare the locking pin (1). Put the arm with
care on the riveting machine nose, making sure that the 2 points of
reference are aligned
For the implementation
sable to lay the arms flat on a table and bring the nose of the riveting
machine
in the arm's
For more
details
see the video:
12
GYSPRESS
CONNECTION
Maximum
air pressure:
Make sure that the air pressure does not exceed 10 bar.
Clean compressed
air:
Make sure you use only clean and dry compressed air for supply the riveting machine. Moisture
and impurities can lead to system failures and/or damages on the product.
ARM
of large arms (eg, HR210, HR310), it is advi-
orifice.
IOT
PUSH
PULL
EN
procedures are
