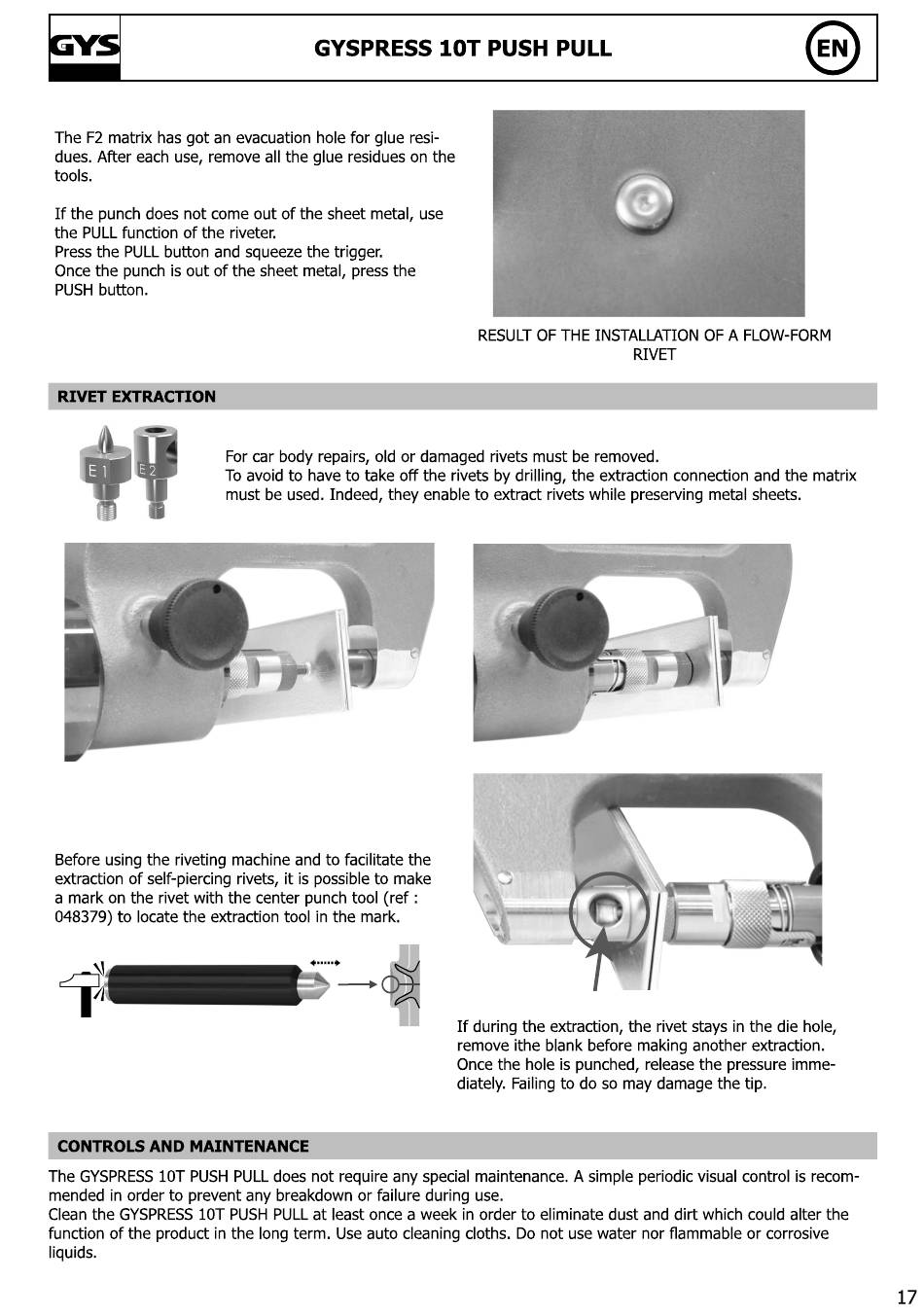

The F2 matrix has got an evacuation hole for glue resi-
dues. After each use, remove all the glue residues on the
tools.
If the punch does not come out of the sheet metal, use
the PULL function
of the riveter.
Press the PULL button and squeeze the trigger.
Once the punch is out of the sheet metal, press the
PUSH button.
RIVET
EXTRACTION
Before using the riveting machine and to facilitate the
extraction of self-piercing rivets, it is possible to make
a mark on the rivet with the center punch tool (ref :
048379) to locate the extraction tool in the mark.
CONTROLS
AND
MAINTENANCE
The GYSPRESS 10T PUSH PULL does not require any special maintenance.
mended in order to prevent any breakdown or failure during use.
Clean the GYSPRESS
10T PUSH PULL at least once
function of the product in the long term. Use auto cleaning cloths. Do not use water nor flammable or corrosive
liquids.
GYSPRESS
For car body repairs, old or damaged rivets must be removed.
To avoid to have to take off the rivets by drilling, the extraction connection and the matrix
must be used. Indeed, they enable to extract rivets while preserving metal sheets.
IOT
PUSH
PULL
RESULT
OF THE
If during the extraction, the rivet stays in the die hole,
remove ithe blank before making another extraction.
Once the hole is punched, release the pressure imme-
diately. Failing to do so may damage the tip.
A simple periodic visual control is recom-
a week
in order
to eliminate
INSTALLATION
OF A FLOW-FORM
RIVET
dust
and dirt which
could
EN
alter
the
17
