Sunny PERFORMANCE INTERACTIVE Serie Benutzerhandbuch Seite 5

We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-
907-8669).

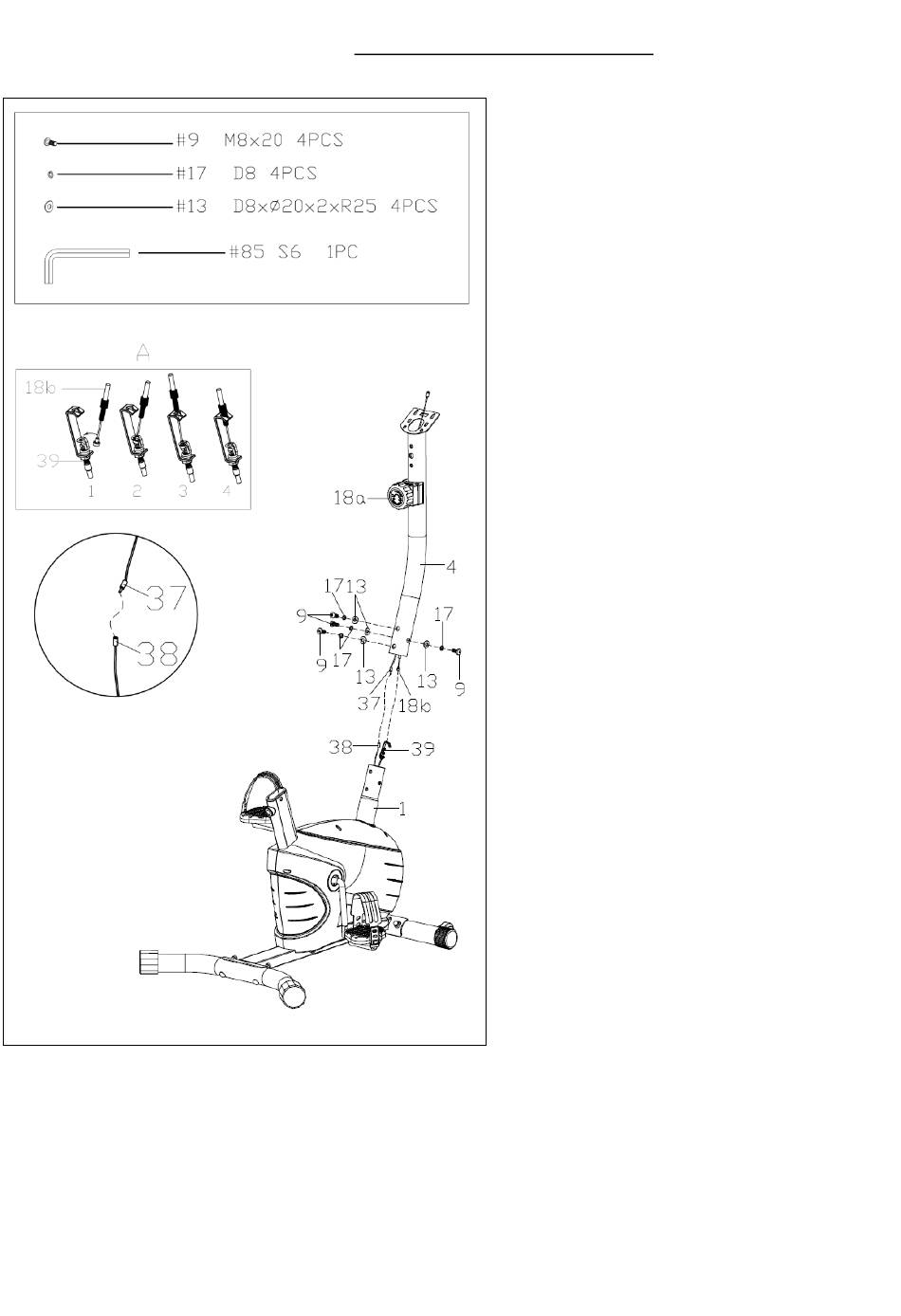

STEP 3
NOTE: Make
Controller (No. 18a) is at the lowest level
before you connect the cable. This
ensures the wires are at their longest
point. We recommend the assistance of a
second person
Handlebar Post (No. 4). This will make
the connection easier when you are
attaching Tension Hook (No. 39) to the
Tension Cable (No. 18b).
Attach the Tension Cable (No. 18b) into
the metal bracket of Tension Hook (No.
39) as shown in drawing A-①. Then, pull
Tension Cable (No. 18b) upward and
insert it into the slot of metal bracket of
Tension Hook (No. 39) as shown in
drawing A-③. Make sure the metal fitting
on Tension Cable (No. 18b) is secured in
the metal bracket.
Connect the Sensor Extension Wire 2
(No. 37) to the Sensor Extension Wire 1
(No. 38).
Remove 4 Screws (No. 9), 4 Spring
Washers (No. 17) and 4 Arc Washers
(No. 13) from the Main Frame (No. 1)
using Allen Wrench (No. 85).
Attach the Handlebar Post (No. 4) to the
Main Frame (No. 1) with 4 Screws (No.
9), 4 Spring Washers (No. 17) and 4 Arc
Washers
removed. Tighten and secure with the
Allen Wrench (No. 85).
NOTE: Do not cut or pinch any wires
when attaching the Handlebar Post (No.
4).
4
sure the
to help
(No. 13) that
Tension
hold the
were just
