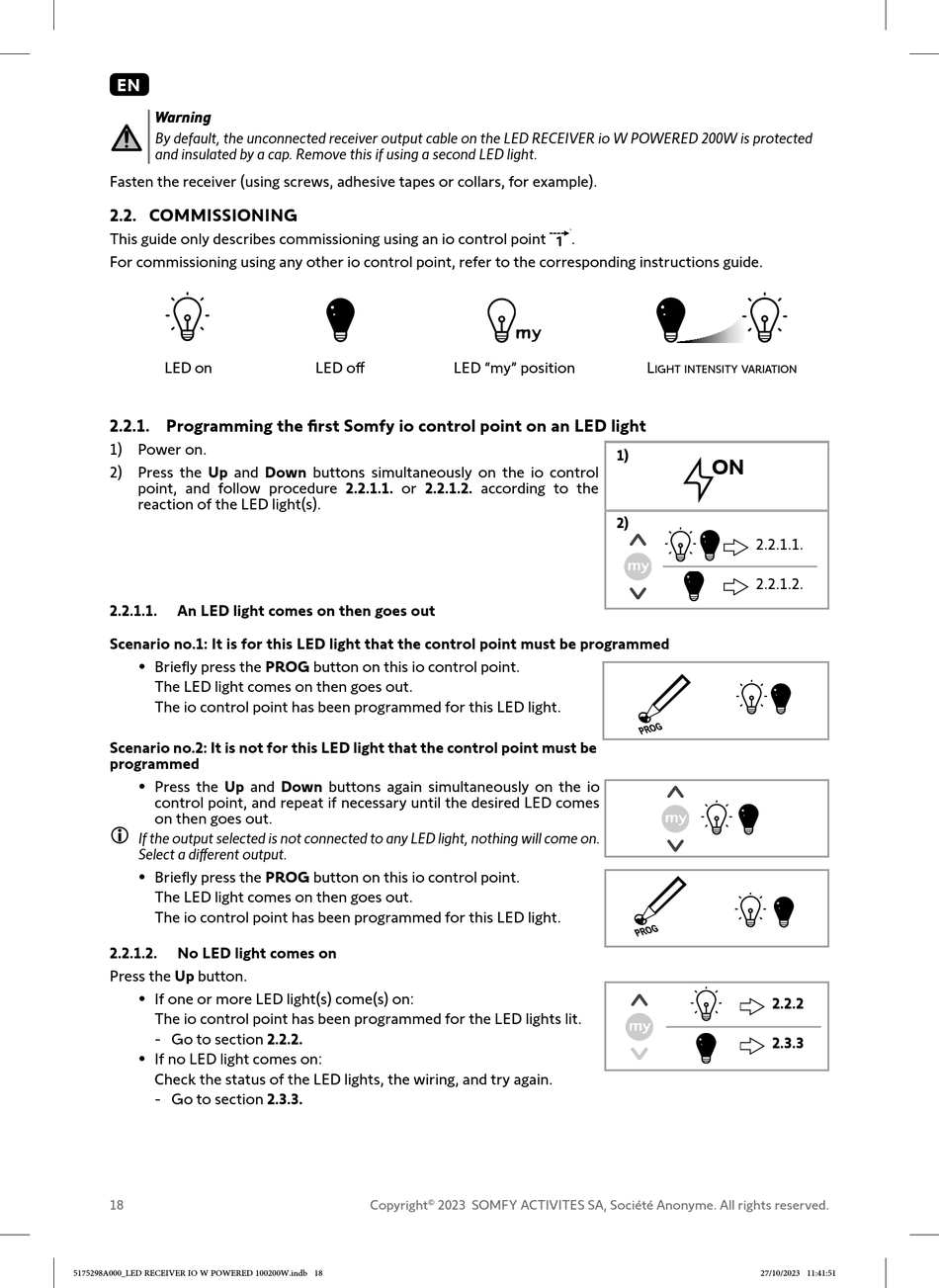

EN
Warning
By default, the unconnected receiver output cable on the LED RECEIVER io W POWERED 200W is protected
and insulated by a cap. Remove this if using a second LED light.
Fasten the receiver (using screws, adhesive tapes or collars, for example).
2.2. COMMISSIONING
This guide only describes commissioning using an io control point
For commissioning using any other io control point, refer to the corresponding instructions guide.
LED on
2.2.1. Programming the first Somfy io control point on an LED light
1) Power on.
2) Press the Up and Down buttons simultaneously on the io control
point, and follow procedure 2.2.1.1. or 2.2.1.2. according to the
reaction of the LED light(s).
2.2.1.1. An LED light comes on then goes out
Scenario no.1: It is for this LED light that the control point must be programmed
• Briefly press the PROG button on this io control point.
The LED light comes on then goes out.
The io control point has been programmed for this LED light.
Scenario no.2: It is not for this LED light that the control point must be
programmed
• Press the Up and Down buttons again simultaneously on the io
control point, and repeat if necessary until the desired LED comes
on then goes out.
͉
If the output selected is not connected to any LED light, nothing will come on.
Select a different output.
• Briefly press the PROG button on this io control point.
The LED light comes on then goes out.
The io control point has been programmed for this LED light.
2.2.1.2. No LED light comes on
Press the Up button.
• If one or more LED light(s) come(s) on:
The io control point has been programmed for the LED lights lit.
- Go to section 2.2.2.
• If no LED light comes on:
Check the status of the LED lights, the wiring, and try again.
- Go to section 2.3.3.
18
5175298A000_LED RECEIVER IO W POWERED 100200W.indb 18 5175298A000_LED RECEIVER IO W POWERED 100200W.indb 18
LED off LED "my" position
Copyright 2023 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
©
.
L
ight intensity VAriAtion
1) 1)
ON
2) 2)
2.2.1.1.
2.2.1.2.
2.2.2
2.3.3
