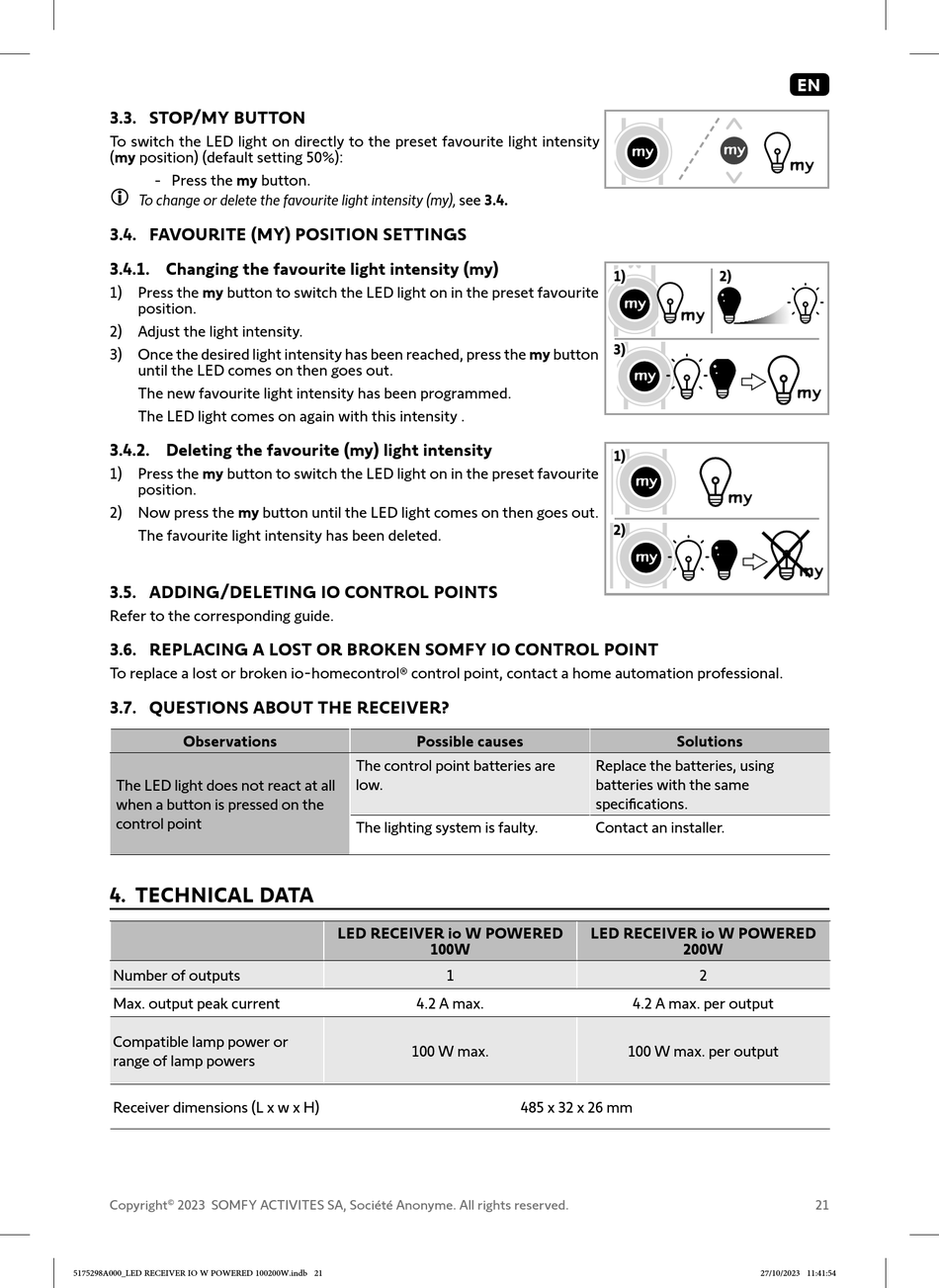

3.3. STOP/MY BUTTON
To switch the LED light on directly to the preset favourite light intensity
(my position) (default setting 50%):
- Press the my button.
͉
To change or delete the favourite light intensity (my), see 3.4.
3.4. FAVOURITE (MY) POSITION SETTINGS
3.4.1. Changing the favourite light intensity (my)
1) Press the my button to switch the LED light on in the preset favourite
position.
2) Adjust the light intensity.
3) Once the desired light intensity has been reached, press the my button
until the LED comes on then goes out.
The new favourite light intensity has been programmed.
The LED light comes on again with this intensity .
3.4.2. Deleting the favourite (my) light intensity
1) Press the my button to switch the LED light on in the preset favourite
position.
2) Now press the my button until the LED light comes on then goes out.
The favourite light intensity has been deleted.
3.5. ADDING/DELETING IO CONTROL POINTS
Refer to the corresponding guide.
3.6. REPLACING A LOST OR BROKEN SOMFY IO CONTROL POINT
To replace a lost or broken io-homecontrol® control point, contact a home automation professional.
3.7. QUESTIONS ABOUT THE RECEIVER?
Observations
The LED light does not react at all
when a button is pressed on the
control point
4. TECHNICAL DATA
Number of outputs
Max. output peak current
Compatible lamp power or
range of lamp powers
Receiver dimensions (L x w x H)
Copyright 2023 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
©
5175298A000_LED RECEIVER IO W POWERED 100200W.indb 21 5175298A000_LED RECEIVER IO W POWERED 100200W.indb 21
Possible causes
The control point batteries are
low.
The lighting system is faulty.
LED RECEIVER io W POWERED
100W
1
4.2 A max.
100 W max.
1) 1)
3) 3)
1) 1)
2) 2)
Solutions
Replace the batteries, using
batteries with the same
specifications.
Contact an installer.
LED RECEIVER io W POWERED
200W
4.2 A max. per output
100 W max. per output
485 x 32 x 26 mm
EN
2) 2)
2
21
