1.2. LIABILITY
Before installing and using the receiver, please read this instructions guide carefully.
It must be installed by a home automation professional, in accordance with Somfy's instructions and the
regulations applicable in the country in which it is commissioned.
Any operation of the receiver outside the field of application described above is prohibited. Such use, and any
failure to comply with the instructions given in this guide, would exempt Somfy of any liability and invalidate
the warranty.
The installer must inform their customers of the operating and maintenance conditions of the receiver,
and must provide them with the operating and maintenance instructions after installing it. Any After-Sales
Service operation on the receiver must be performed by a home automation professional.
Never begin installing without first checking the compatibility of this product with the associated equipment
and accessories.
Should any doubt arise when installing the receiver or for additional information, consult a Somfy contact
or visit www.somfy.com.

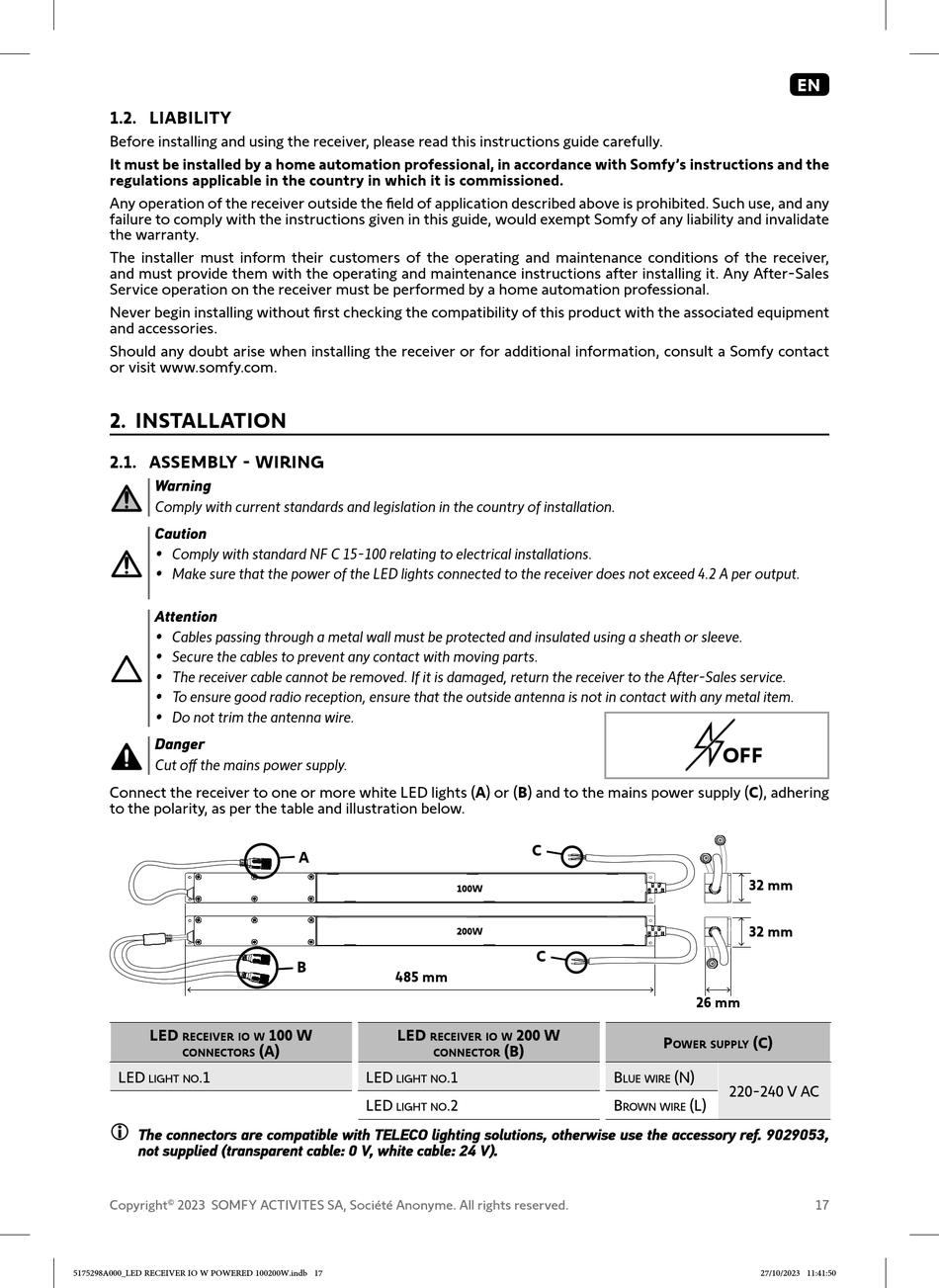

2. INSTALLATION
2.1. ASSEMBLY - WIRING
Warning
Comply with current standards and legislation in the country of installation.
Caution
• Comply with standard NF C 15-100 relating to electrical installations.
• Make sure that the power of the LED lights connected to the receiver does not exceed 4.2 A per output.
Attention
• Cables passing through a metal wall must be protected and insulated using a sheath or sleeve.
• Secure the cables to prevent any contact with moving parts.
• The receiver cable cannot be removed. If it is damaged, return the receiver to the After-Sales service.
• To ensure good radio reception, ensure that the outside antenna is not in contact with any metal item.
• Do not trim the antenna wire.
Danger
Cut off the mains power supply.
Connect the receiver to one or more white LED lights (A) or (B) and to the mains power supply (C), adhering
to the polarity, as per the table and illustration below.
Led
reCeiver io w
ConneCtors
LeD
.1
Light no
͉
The connectors are compatible with TELECO lighting solutions, otherwise use the accessory ref. 9029053,
not supplied (transparent cable: 0 V, white cable: 24 V).
