Important Safety Information, continued
Cautions:
- Protect the AGILITY from blunt force shocks that may cause damage and/or breakage.
- The components of the AGILITY Direct Mount Hardware are not intended to be used separately from an AGILITY or in conjunction with other wheelchair back
supports.

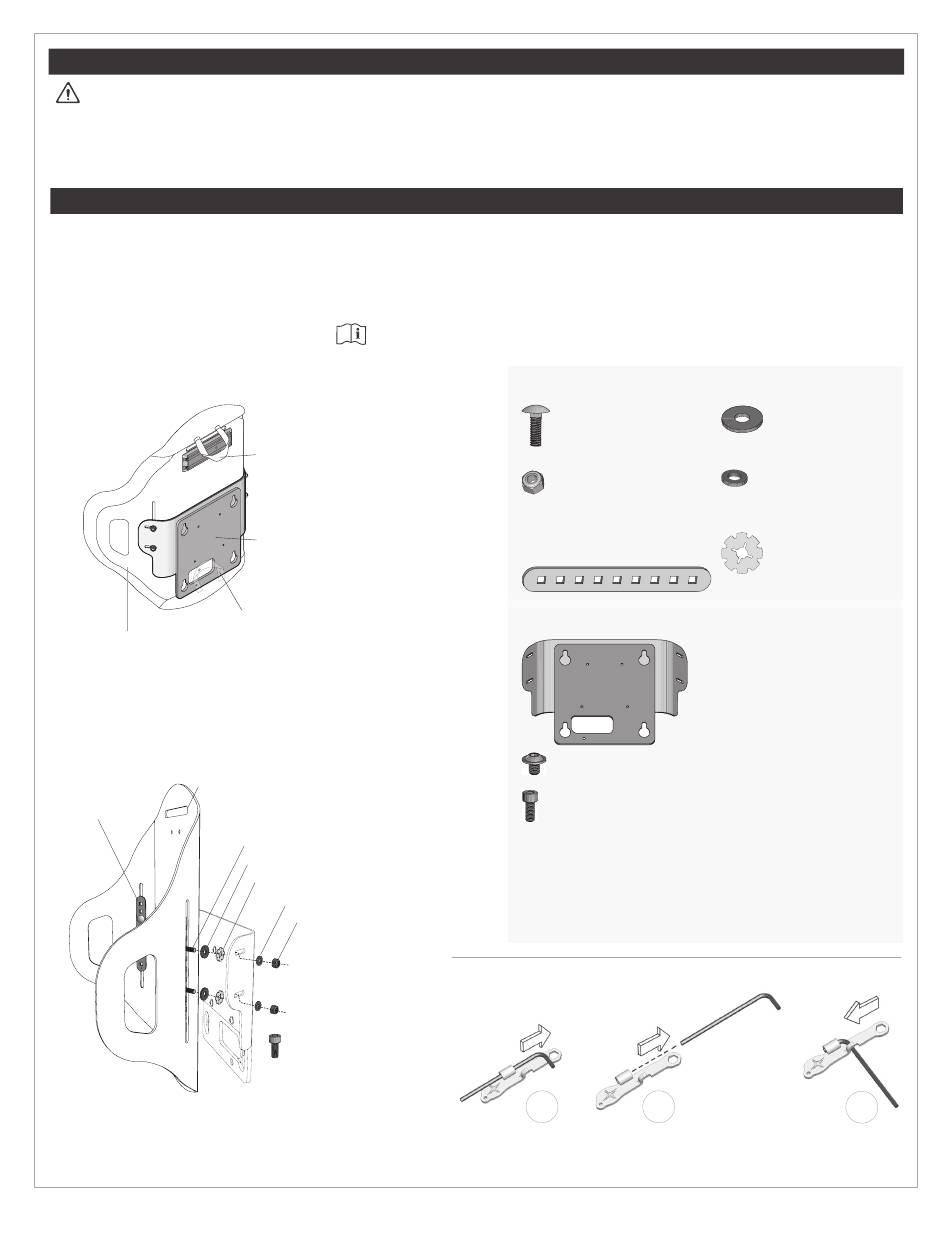

Parts Detail and Product Specifications
Package contents: AGILITY Direct Mount Hardware, components to attach the Direct Mount Hardware, UniTrack (for headrest attachment; not included with all
AGILITY models)*, Dual Wrench, operation manual, limited warranty supplement, product registration card
A torque wrench and a tape measure or ruler are recommended but are not included in the package contents.
The product may be provided unassembled (hardware unattached). This manual includes instructions for attaching the Direct Mount Hardware.
To order replacement parts, contact the product provider or Customer Support.
* Refer to the instructions provided with the UniTrack.
Direct Mount Hardware attached to AGILITY
AGILITY Back Shell and Cover
(Refer to the instructions provided with the ROHO AGILITY Back Support.)
Components to attach the Direct Mount Hardware to AGILITY
Slot located near the top of the
AGILITY Back Shell
Sliding height
adjustment bar
ROHO AGILITY Back Support Direct Mount Hardware Operation Manual
Cover handle (top)
Direct Mount Hardware
Cover handle (bottom)
Bolt
Nylon washer
Star washer
Washer
Lock Nut
Cap screw
(for securing the Direct Mount
Hardware to the wheelchair)
For Attaching AGILITY with Direct Mount Hardware:
Bolt (x4)
(carriage bolt)
M6 x 20mm
Lock nut (x4)
(nylon-insert lock nut)
M6 (uses 10mm hex wrench)
Sliding height adjustment bar (x2)
Unique assembly component
For Direct Mount Hardware:
Screw (x4) (button-head hex screw) M6 x 8mm
Cap screw (x1) (socket-head cap screw) M5 x 12mm
Materials: Direct Mount Hardware Wing Bracket/Center Bracket: steel
Sizing: Refer to labeling to confirm that the width of the AGILITY Back Shell
is compatible with the width of the Direct Mount Hardware. For example: AG-
HDWR-DM15 is compatible with the back shell AG6-1520A-X ("15" indicates the
back shell width).
Expected product lifetime: 5 years
Dual Wrench - To separate and assemble for use as an Allen Wrench:
1
3
Nylon washer (x4) M6
Washer (x4)
(stainless steel)
M6
Star lock washer (x4)
for M6 bolt
Wing bracket / Center bracket
Direct Mount Hardware
Weight range: 7.25 - 8.50 lb. (3.3 - 3.9 kg)
4mm hex key
10mm box end wrench
2 3
