Removal from the Wheelchair
Warnings:
- DO NOT perform any tasks without first reading and understanding all of the safety information and provided instructions.
- DO NOT remove or install the AGILITY while the individual is seated in the wheelchair.
- DROPPING, PINCHING, CRUSHING RISK: The AGILITY with Direct Mount Hardware is heavy. To avoid injury, hold securely and use extreme caution when
installing, adjusting, removing or otherwise handling the AGILITY with Direct Mount Hardware. Ask for assistance if needed.

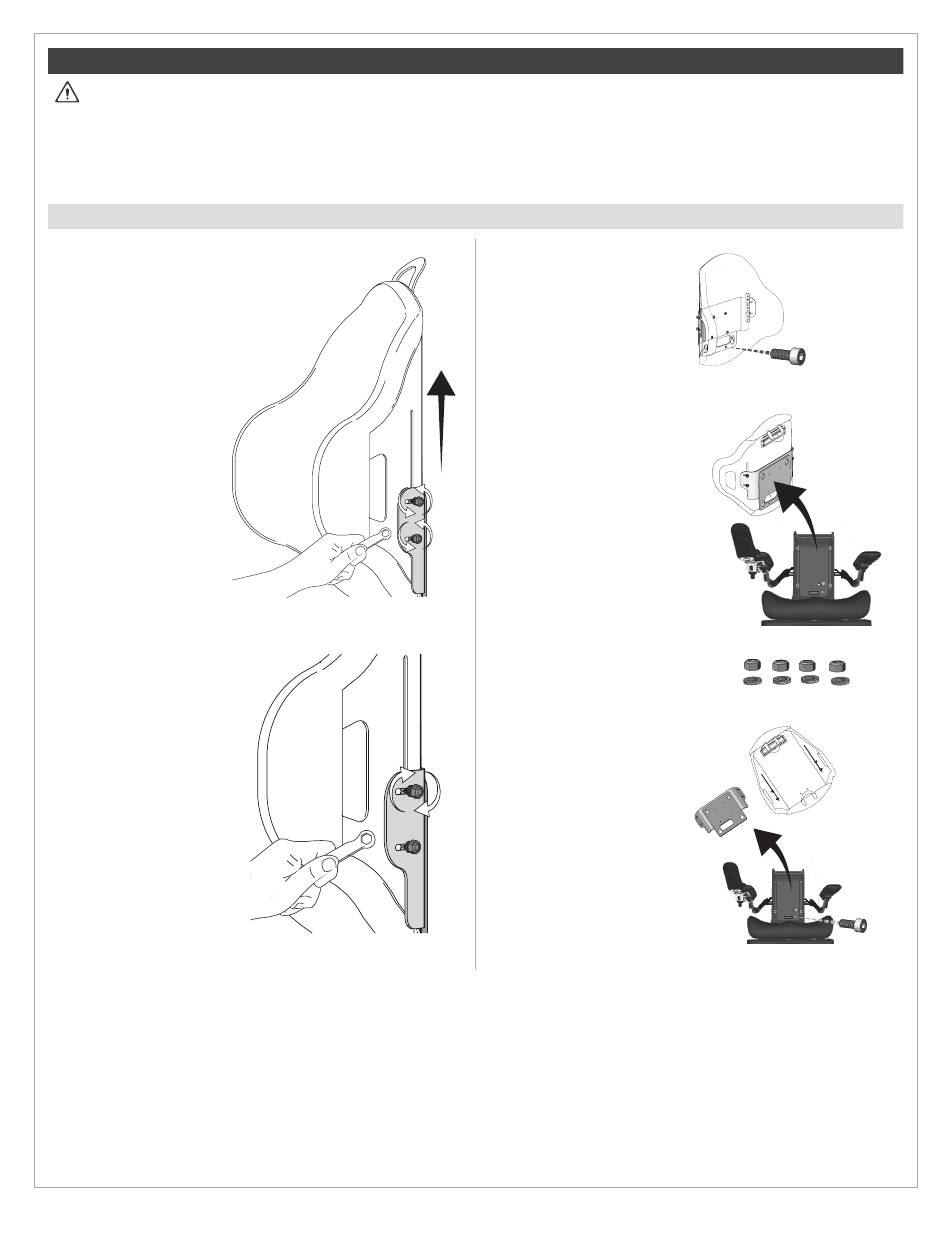

To remove AGILITY and the Direct Mount Hardware
1. If a headrest is installed,
remove it.
2. Loosen the four nylon-
insert lock nuts, then slide
the AGILITY up as far as
it will go.
3. To keep the AGILITY from
sliding up or down during
removal, securely tighten
one of the lock nuts.
ROHO AGILITY Back Support Direct Mount Hardware Operation Manual
4. Remove the AGILITY with the
OPTION: Remove the AGILITY and
Direct Mount Hardware separately:
9
Direct Mount Hardware:
a. Remove the cap screw, which is
located beneath the lower front
of the cover.
b. Lift upward and then away from
the wheelchair to remove the
AGILITY and the Direct Mount
Hardware. The four keyholes on
the Direct Mount Hardware will
disengage from the four pins on
the wheelchair.
a. Remove the four lock nuts and
washers.
b. Remove the AGILITY from the
wheelchair, but do not remove
the Direct Mount Hardware from
the wheelchair.
c. Replace the four washers and
lock nuts on the bolts.
d. Remove the cap screw.
e. Lift upward and then away from
the wheelchair to remove the
Direct Mount Hardware from the
wheelchair.
Cap screw
Cap Screw
