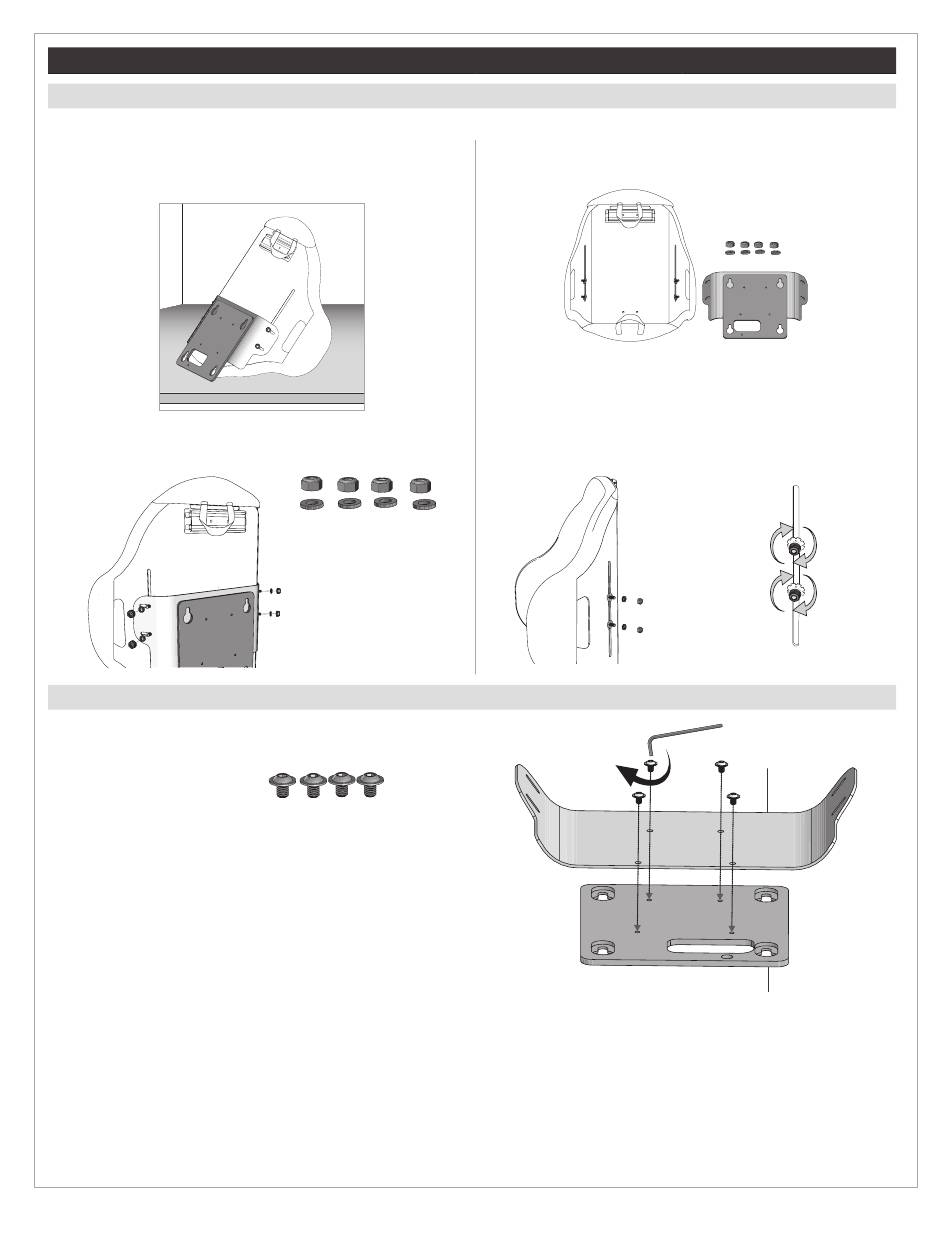

Direct Mount Hardware Removal or Assembly
Removing the Direct Mount Hardware
Follow these instructions if you need to remove or assemble the Direct Mount Hardware for storage or another reason.
1. Place the AGILITY with the Direct Mount Hardware onto a stable, level,
sturdy surface.
2. Loosen and remove all four nylon-insert lock nuts and washers.
Assembling the Direct Mount Hardware
1. Place the wing bracket onto the center bracket. The oval-shaped keyhole
openings should face up.
2. Insert the four screws into the
holes.
3. Use an Allen wrench to tighten the screws until snug + one-quarter turn.
Note: Reverse this process to separate the wing bracket from the center
bracket.
ROHO AGILITY Back Support Direct Mount Hardware Operation Manual
3. Remove the Direct Mount Hardware from the AGILITY back shell.
4. Replace the washers and the lock
11
nuts.
5. Tighten the lock nuts.
Wing Bracket
Center Bracket
