ROBO Compact W500 / W600
6.1 Setting up and connecting the torch neck and cable assembly
Carry out each step in accordance with the figures below:
ROBO Compact W500
ROBO Compact W600

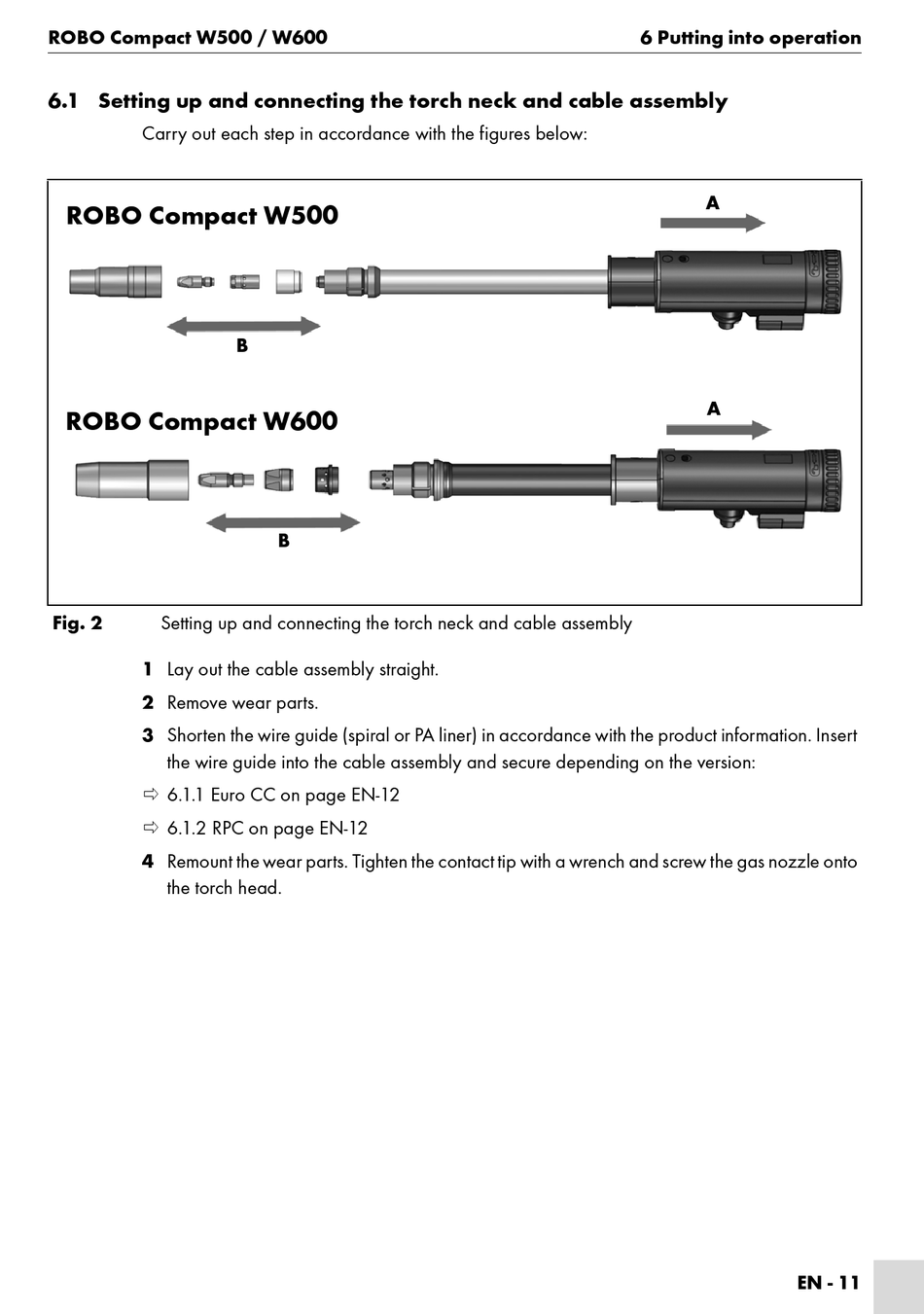

Fig. 2 Setting up and connecting the torch neck and cable assembly
1 Lay out the cable assembly straight.
2 Remove wear parts.
3 Shorten the wire guide (spiral or PA liner) in accordance with the product information. Insert
the wire guide into the cable assembly and secure depending on the version:
 6.1.1 Euro CC on page EN-12
 6.1.2 RPC on page EN-12
4 Remount the wear parts. Tighten the contact tip with a wrench and screw the gas nozzle onto
the torch head.
