CH. 3 TECHNICAL DETAILS

3.1 MAIN TECHNICAL SPECIFICATIONS

Carriage translation on high strength, low friction coefficient technopolymer sliding shoes.
Lifting and lowering movements obtained by means of bronze bearing nuts coupled with fine pitch actuator screws to guarantee
movements cannot be reversed.
Electronic safety device to prevent further lifting movements in the event of complete wear of the bearing nut.
Automatic lubrication of the actuator screws at each stroke.
Carriage realignment by electronic device.
Locking device for misalignment of carriages exceeding 32 mm.

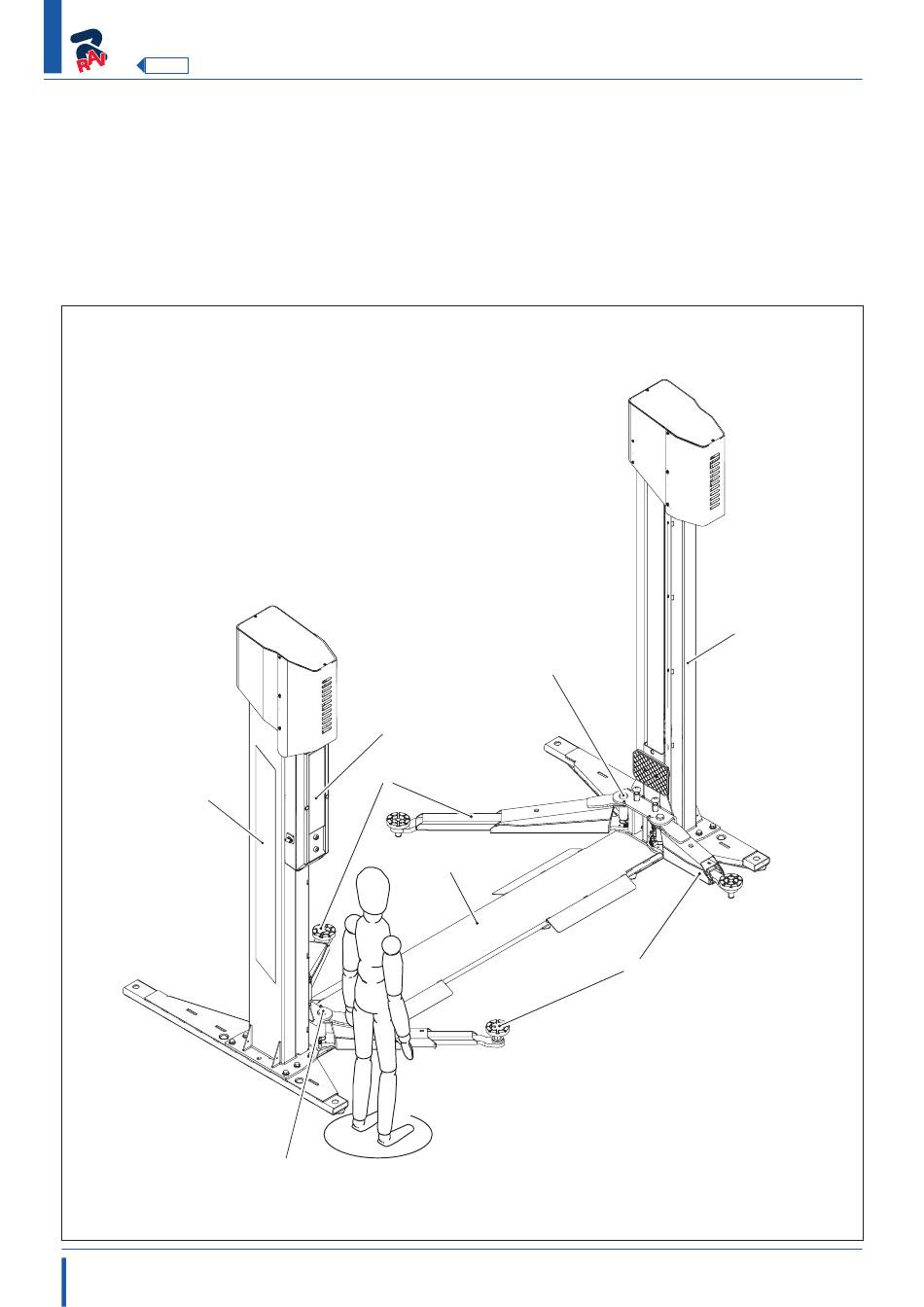

1 CONTROL POST
2 OPPOSITE POST
3 CARRIAGES
4 ARMS
5 CONTROL BOX
6 EXTERNAL PLATFORM
1
EN_4 0474-M001-0
5
4
6
3
CONTROL POSITION
3
4
KPS32
2
