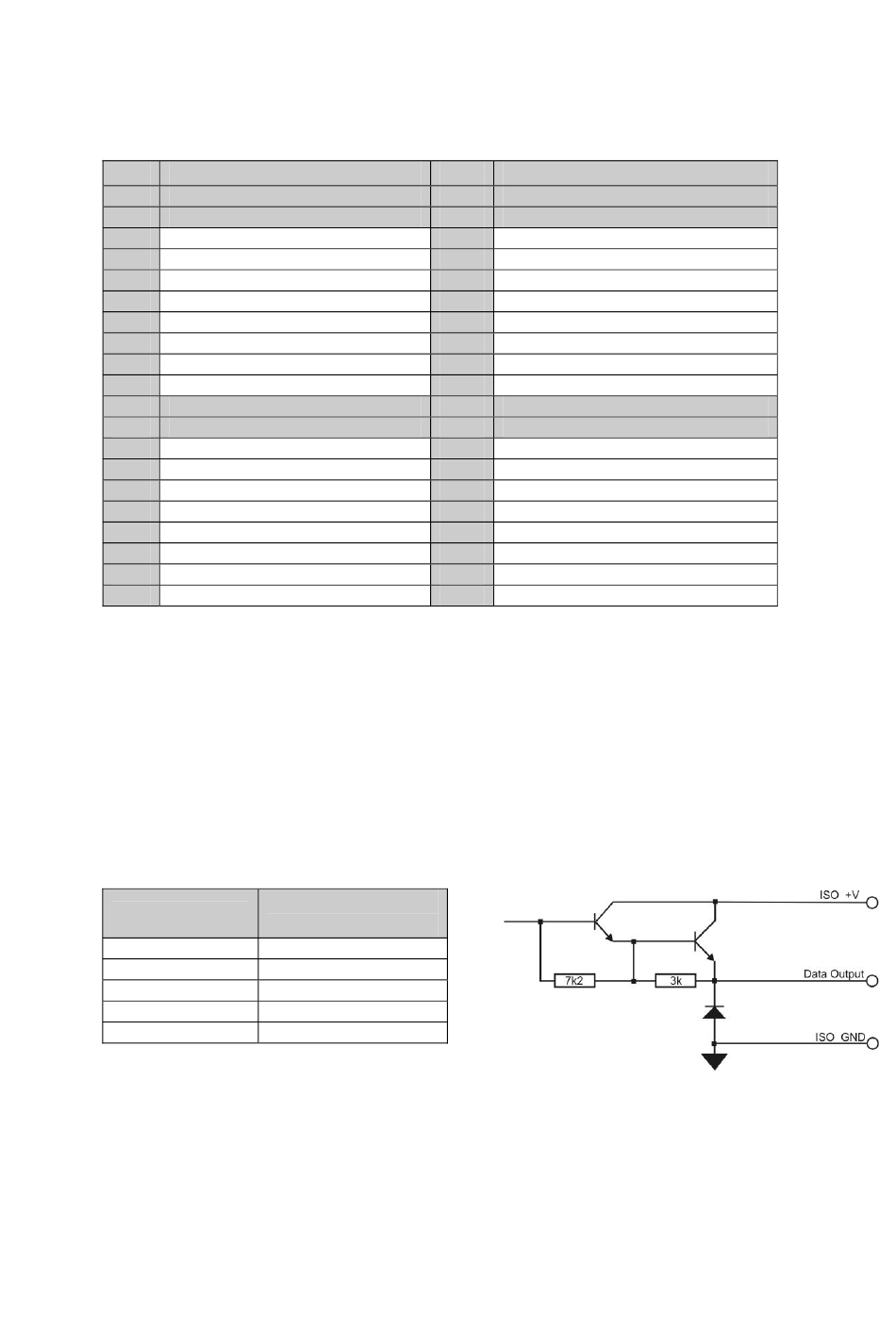

PARALLELE BCD DATEN

J3 FUNCTION
1 ISO +external Supply Voltage
2
ISO GND isolated Supply GND
3 Strobe
4 Overrange
5 Negative Sign
6 Decimal Point Bit C
7 Decimal Point Bit B
8 Decimal Point Bit A
9 6 Digit Bit D 800 000
10 6 Digit Bit C 400 000
11 ISO +external Supply Voltage
12 ISO GND isolated Supply GND
13 6 Digit Bit B 200 000
14 6 Digit Bit A 100 000
15 5 Digit Bit D
16 5 Digit Bit C
17 5 Digit Bit B
18 5 Digit Bit A
19 4 Digit Bit D
20 4 Digit Bit C
10.1

Dezimalpunkte am Datenausgang

Dezimalpunkt
XXXXX
XXXX.X
XXX.XX
XX.XXX
X.XXXX
J3
21
22
23
24
25
26
27
28
29
30
31
32
33
34
80 000 35
40 000 36
20 000 37
10 000 38
8 000 39
4 000 40
A-B-C- Bit
Kombinationen
0-0-1
1-1-0
0-1-0
1-'0-0
0-0-0
12
FUNCTION
ISO +external Supply Voltage
ISO GND isolated Supply GND
4 Digit Bit B 2 000
4 Digit Bit A 1 000
3 Digit Bit D 800
3 Digit Bit C 400
3 Digit Bit B 200
3 Digit Bit A 100
2 Digit Bit D
2 Digit Bit C
ISO +external Supply Voltage
ISO GND isolated Supply GND
2 Digit Bit B
2 Digit Bit A
1 Digit Bit D
1 Digit Bit C
1 Digit Bit B
1 Digit Bit A
+ Overrange
- Overrange
10.2

Ausgangsstufe BCD parallel

80
40
20
10
8
4
2
1
