BFT ARGO BT A 20 Montageanleitung Seite 16

x2
***
0--- 10--
Add. 1ch
Add. 2ch
Add. 3ch
Add. 4ch
erase 64
erase 1
language
Fig. G
autoset
phases 8 --> 13
Fig. G
reg fc
phases 1 --> 7
stat vers OK
- + No total manoeuvres(in hundreds)
n. cycles OK
- +
No radio controldevices memorised
OK
n. remotes
- +
List of last 30 errors
err
OK
0---
password
16-
ARGO BT A 20-35

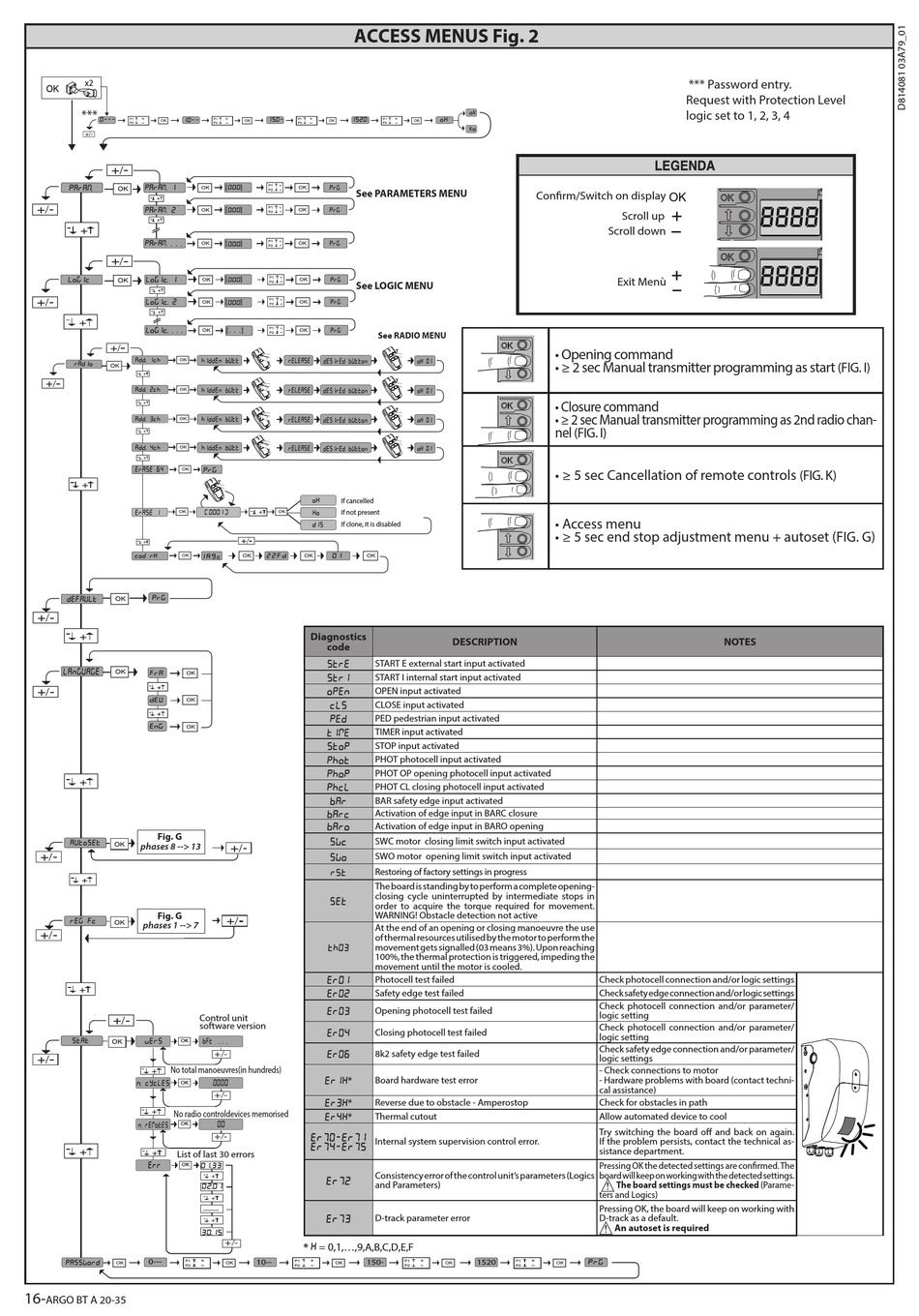

ACCESS MENUS Fig. 2
150- 1520
See PARAMETERS MENU
See LOGIC MENU
hidden butt
release desired button
hidden butt release desired button
hidden butt release
desired button
hidden butt release
desired button
ok If cancelled
If not present
( 0001 ) KO
If clone, it is disabled
dis
Diagnostics
code
STRE
STRI
OPEN
CLS
PED
TIME
STOP
PHOT
PHOP
PHCL
BAR
BARc
BARo
SWC
SWO
rst
SET
TH03
ER01
ER02
ER03
Control unit
software version
ER04
bft . . .
+/-
er06
ER1x*
0000
+/-
ER3x*
ER4x*
00
+/-
ER70-ER71
ER74-ER75
01. 3 3
ER72
02. 0 1
........
ER73
30. 1 5
+/-
* X = 0,1,...,9,A,B,C,D,E,F
10-- 150-
ENGLISH
ok
Con rm/Switch on display
See RADIO MENU
20 2126 27
DESCRIPTION
START E external start input activated
START I internal start input activated
OPEN input activated
CLOSE input activated
PED pedestrian input activated
TIMER input activated
STOP input activated
PHOT photocell input activated
PHOT OP opening photocell input activated
PHOT CL closing photocell input activated
BAR safety edge input activated
Activation of edge input in BARC closure
Activation of edge input in BARO opening
SWC motor closing limit switch input activated
SWO motor opening limit switch input activated
Restoring of factory settings in progress
The board is standing by to perform a complete opening-
closing cycle uninterrupted by intermediate stops in
order to acquire the torque required for movement.
WARNING! Obstacle detection not active
At the end of an opening or closing manoeuvre the use
of thermal resources utilised by the motor to perform the
movement gets signalled (03 means 3%). Upon reaching
100%, the thermal protection is triggered, impeding the
movement until the motor is cooled.
Photocell test failed
Safety edge test failed
Opening photocell test failed
Closing photocell test failed
8k2 safety edge test failed
Board hardware test error
Reverse due to obstacle - Amperostop
Thermal cutout
Internal system supervision control error.
Consistency error of the control unit's parameters (Logics
and Parameters)
D-track parameter error
1520
*** Password entry.
Request with Protection Level
logic set to 1, 2, 3, 4
Scroll up
Scroll down
Exit Menù
• Opening command
• ≥ 2 sec Manual transmitter programming as start
• Closure command
• ≥ 2 sec Manual transmitter programming as 2nd radio chan-
nel
(FIG. I)
• ≥ 5 sec Cancellation of remote controls
• Access menu
• ≥ 5 sec end stop adjustment menu + autoset (FIG. G)
NOTES
Check photocell connection and/or logic settings
Check safety edge connection and/or logic settings
Check photocell connection and/or parameter/
logic setting
Check photocell connection and/or parameter/
logic setting
Check safety edge connection and/or parameter/
logic settings
- Check connections to motor
- Hardware problems with board (contact techni-
cal assistance)
Check for obstacles in path
Allow automated device to cool
Try switching the board off and back on again.
If the problem persists, contact the technical as-
sistance department.
Pressing OK the detected settings are confirmed. The
board will keep on working with the detected settings.
The board settings must be checked (Parame-
ters and Logics)
Pressing OK, the board will keep on working with
D-track as a default.
An autoset is required
prg
8888
8888
(FIG. I)
20 2126 27 50 515260 6162 70 7172 73
20 2126 27 50 515260 6162 70 7172 73
(FIG. K)
