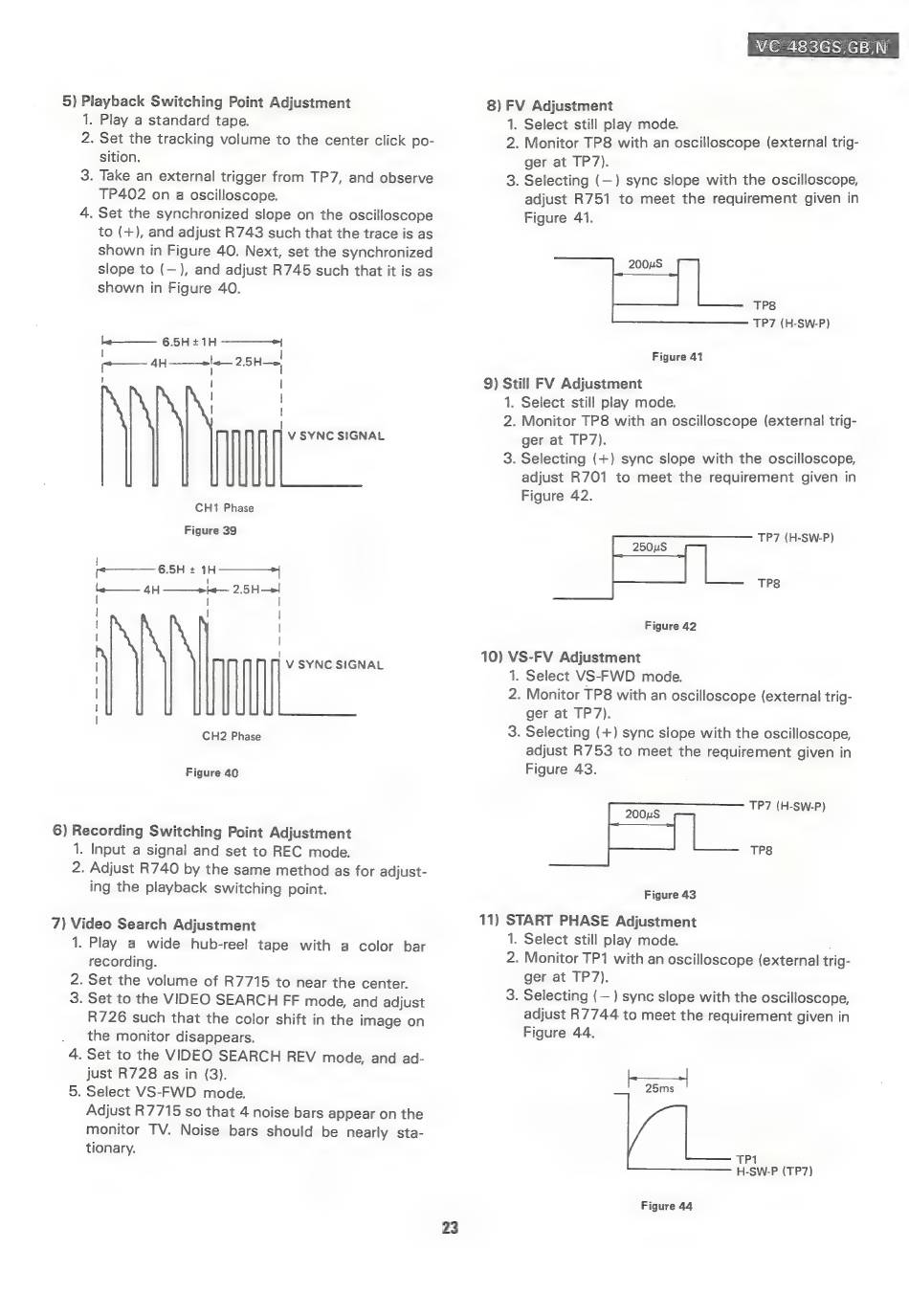

5) Playback Switching Point Adjustment
1. Play a standard tape.
le——
6.5H
1H ————+}
—_——
4H——+la—2.5H
aS
V SYNC SIGNAL
CH1 Phase
Figure 39
|
|
|
|
I
|
|
|
1
V SYNC SIGNAL
CH2 Phase
Figure 40
7) Video Search Adjustment
1. Play a wide
hub-reel
tape
with
a color
bar
recording.
2. Set the volume of R7715 to near the center.
3. Set to the VIDEO SEARCH FF mode, and adjust
R726 such that the color shift in the image on
.
the monitor disappears.
4. Set to the VIDEO SEARCH
REV mode, and ad-
just R728 as in (3).
5. Select VS-FWD
mode.
Adjust R7715 so that 4 noise bars appear on the
monitor
TV. Noise
bars should
be nearly sta-
tionary.
VC-483GS,GB,N
8) FV Adjustment
1. Select still play mode.
2. Monitor TP8 with an oscilloscope (external trig-
ger at TP7).
3. Selecting (—) sync slope with the oscilloscope,
adjust R751
to meet the requirement given in
Figure 41.
200xS
TPS
TP7 (H-SW-P)
Figure 41
9) Still FV Adjustment
1. Select still play mode.
2. Monitor TP8 with an oscilloscope (external trig-
ger at TP7).
3. Selecting (+) sync slope with the oscilloscope,
adjust R701
to meet the requirement given in
Figure 42.
TP7 (H-SW-P)
250uS
TP8
Figure 42
10) VS-FV Adjustment
1. Select VS-FWD
mode.
2. Monitor TP8 with an oscilloscope (external trig-
ger at TP7).
3. Selecting (+) sync slope with the oscilloscope,
adjust R753 to meet the requirement given in
Figure 43.
TP7
(H-SW-P
200uS
TP8
Figure 43
11) START PHASE Adjustment
1. Select still play mode.
2. Monitor TP1 with an oscilloscope (external trig-
ger at TP7).
25ms
TP1
H-SW-P (TP7)
Figure 44
23
