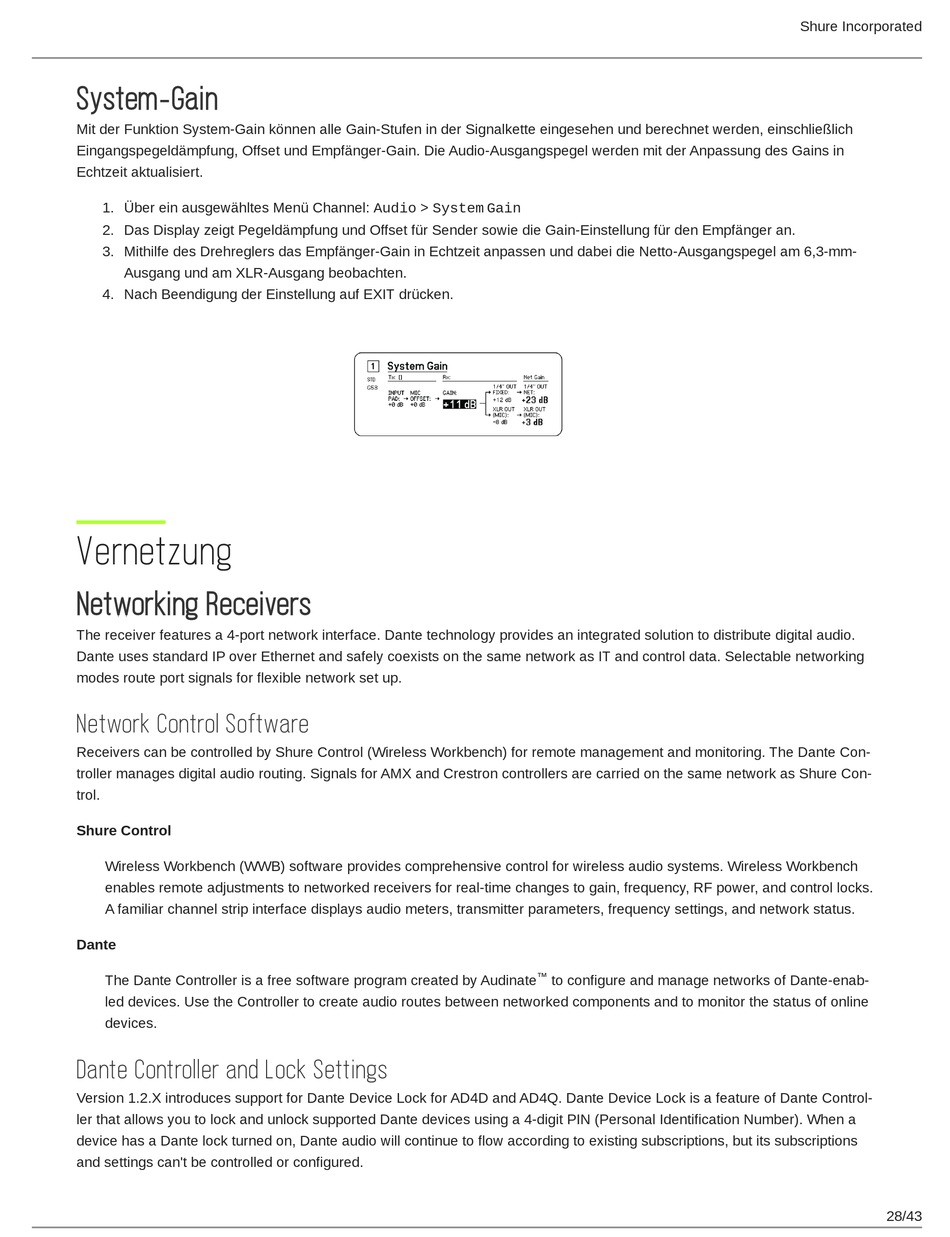

System-Gain
Mit der Funktion System-Gain können alle Gain-Stufen in der Signalkette eingesehen und berechnet werden, einschließlich
Eingangspegeldämpfung, Offset und Empfänger-Gain. Die Audio-Ausgangspegel werden mit der Anpassung des Gains in
Echtzeit aktualisiert.
1.
Über ein ausgewähltes Menü Channel: Audio > System Gain
2.
Das Display zeigt Pegeldämpfung und Offset für Sender sowie die Gain-Einstellung für den Empfänger an.
3.
Mithilfe des Drehreglers das Empfänger-Gain in Echtzeit anpassen und dabei die Netto-Ausgangspegel am 6,3-mm-
Ausgang und am XLR-Ausgang beobachten.
4.
Nach Beendigung der Einstellung auf EXIT drücken.
Vernetzung
Networking Receivers
The receiver features a 4-port network interface. Dante technology provides an integrated solution to distribute digital audio.
Dante uses standard IP over Ethernet and safely coexists on the same network as IT and control data. Selectable networking
modes route port signals for flexible network set up.
Network Control Software
Receivers can be controlled by Shure Control (Wireless Workbench) for remote management and monitoring. The Dante Con
troller manages digital audio routing. Signals for AMX and Crestron controllers are carried on the same network as Shure Con
trol.
Shure Control
Wireless Workbench (WWB) software provides comprehensive control for wireless audio systems. Wireless Workbench
enables remote adjustments to networked receivers for real-time changes to gain, frequency, RF power, and control locks.
A familiar channel strip interface displays audio meters, transmitter parameters, frequency settings, and network status.
Dante
The Dante Controller is a free software program created by Audinate to configure and manage networks of Danteenab
led devices. Use the Controller to create audio routes between networked components and to monitor the status of online
devices.
Dante Controller and Lock Settings
Version 1.2.X introduces support for Dante Device Lock for AD4D and AD4Q. Dante Device Lock is a feature of Dante Control
ler that allows you to lock and unlock supported Dante devices using a 4-digit PIN (Personal Identification Number). When a
device has a Dante lock turned on, Dante audio will continue to flow according to existing subscriptions, but its subscriptions
and settings can't be controlled or configured.
™
Shure Incorporated
28/43
