If the milling pattern needs to be set, proceed as follows:
f Place the planer on an even floor.
f Lift the machine with the height adjustment hand wheel, until all the tools are well clear
of the floor.
f Loosen the clamping screw of the eccentric shaft (3).
f On the other side of the rear wheel is a screw which keeps the wheel on the shaft (4).
f Turning the screw will also turn the eccentric shaft.
f The floor planer moves up and down on one side.
f Always turn the screw clockwise. Anti clockwise will loosen the screw.
f Keep turning until all the tools on the drum are the same distance to the floor.
f Tighten the clamping screw again

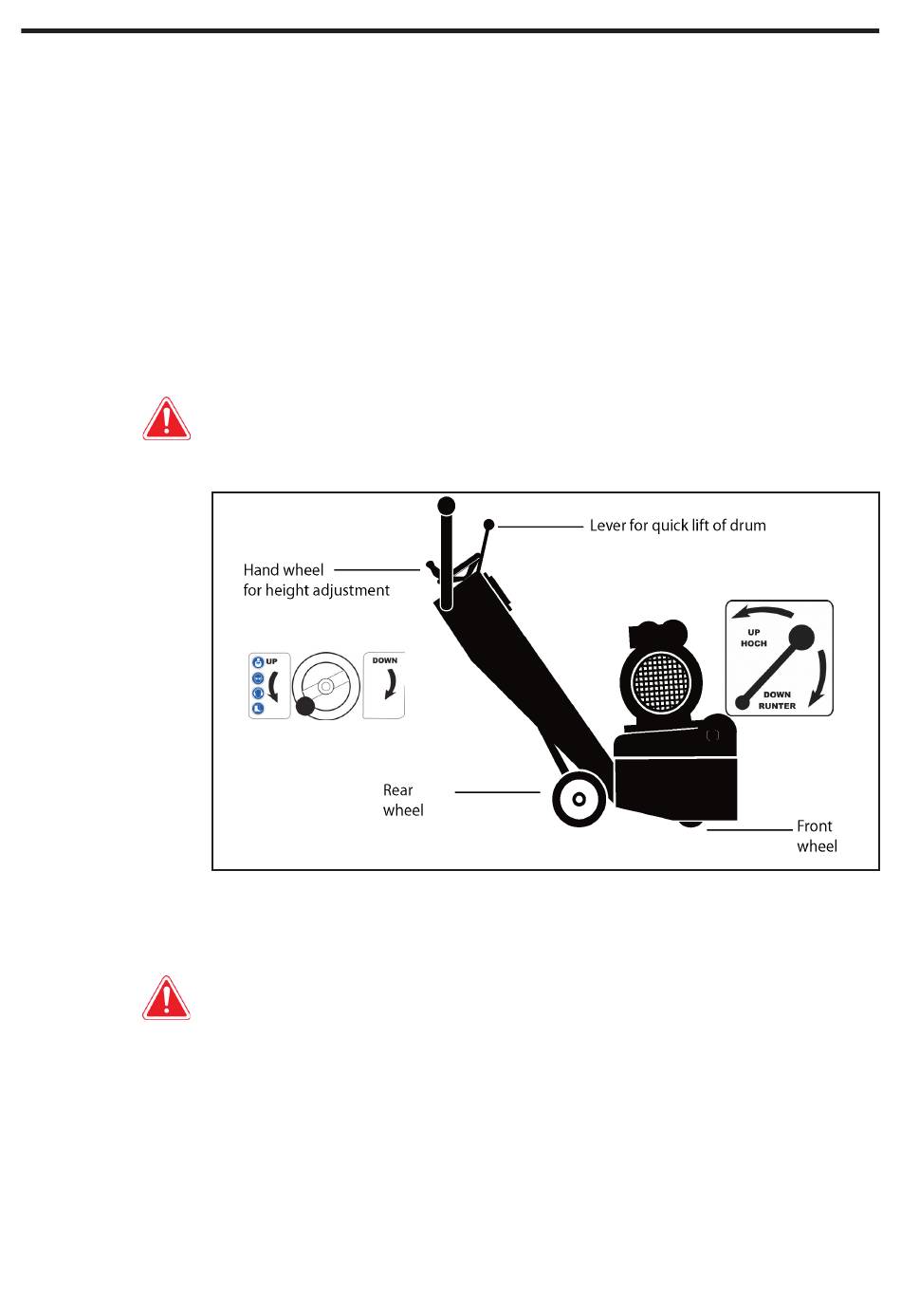

Height adjustment

Danger!
Never switch the motor of the planer on while the tools still touch the floor.
Always lift the machine and the tools clear from the floor using the quick lift lever
first and then switch the motor on. Raise the machine with the height adjustment
handwheel until all the tools are clearly off the ground.
Height adjustment of the tool drum

Changing the tool drum

Danger!
Before any maintenance, the machine must be brought to a complete stand still.
Always disconnect the machine if it is an electric model.
f Lift the machine with the lever so that the tools are well clear of the floor.
f Unscrew the screws on the right side plate (M8, Key width 13 mm)
f Carefully remove the side plate.
f Take out the drum. Remove worn out tools.
f Check shafts and drums for wear and tear. If necessary replace new tools on the drum.
f Push drum on freshly greased shaft.
f Reconnect side plate.
See 2.8.1 Drum housing complete
