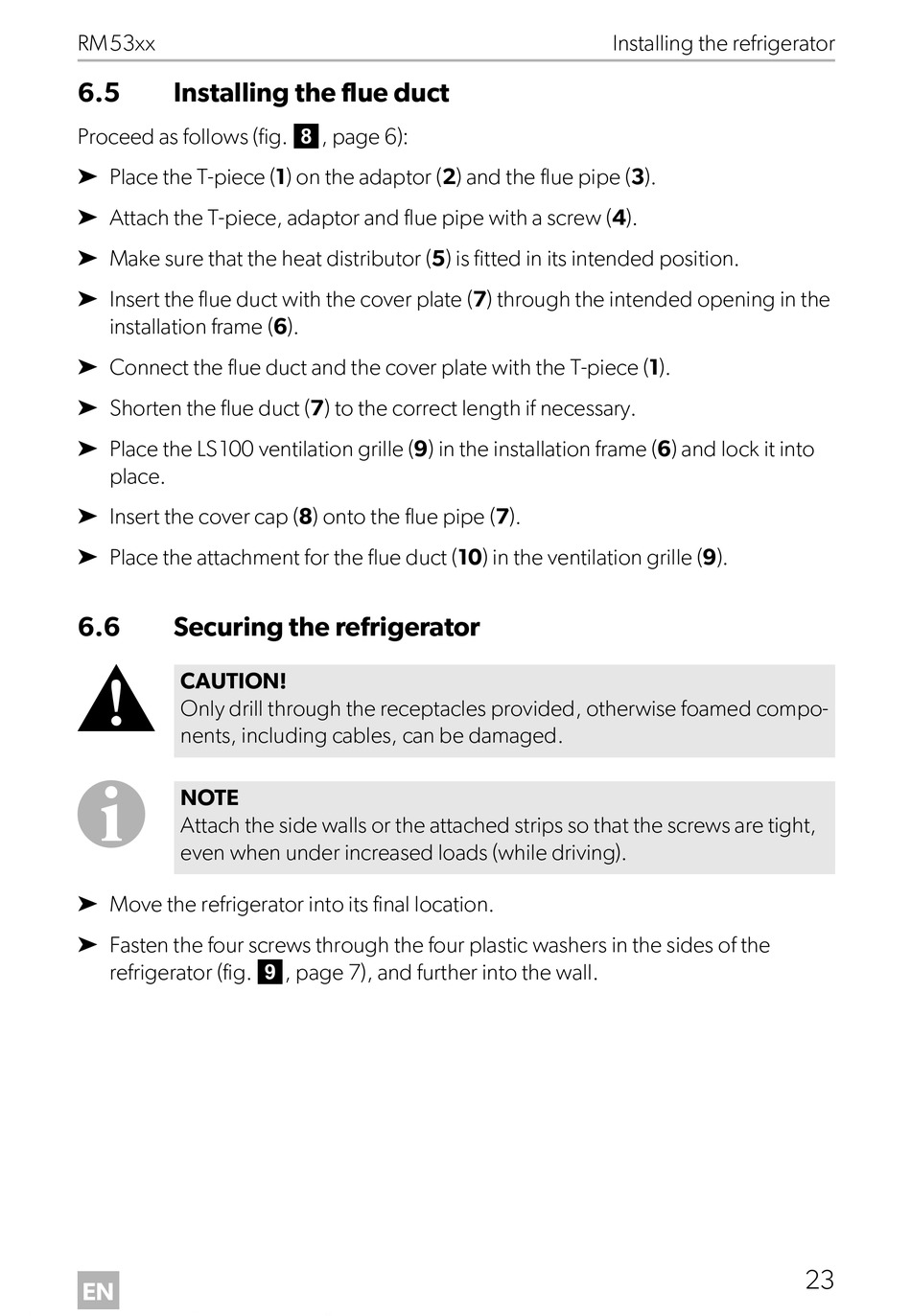

6.5 Installing the flue duct
Proceed as follows (fig. 8, page 6):
➤ Place the T-piece (1) on the adaptor (2) and the flue pipe (3).
➤ Attach the T-piece, adaptor and flue pipe with a screw (4).
➤ Make sure that the heat distributor (5) is fitted in its intended position.
➤ Insert the flue duct with the cover plate (7) through the intended opening in the
installation frame (6).
➤ Connect the flue duct and the cover plate with the T-piece (1).
➤ Shorten the flue duct (7) to the correct length if necessary.
➤ Place the LS100 ventilation grille (9) in the installation frame (6) and lock it into
place.
➤ Insert the cover cap (8) onto the flue pipe (7).
➤ Place the attachment for the flue duct (10) in the ventilation grille (9).
6.6

Securing the refrigerator

!
CAUTION!
Only drill through the receptacles provided, otherwise foamed compo-
nents, including cables, can be damaged.
I
NOTE
Attach the side walls or the attached strips so that the screws are tight,
even when under increased loads (while driving).
➤ Move the refrigerator into its final location.
➤ Fasten the four screws through the four plastic washers in the sides of the
refrigerator (fig. 9, page 7), and further into the wall.
