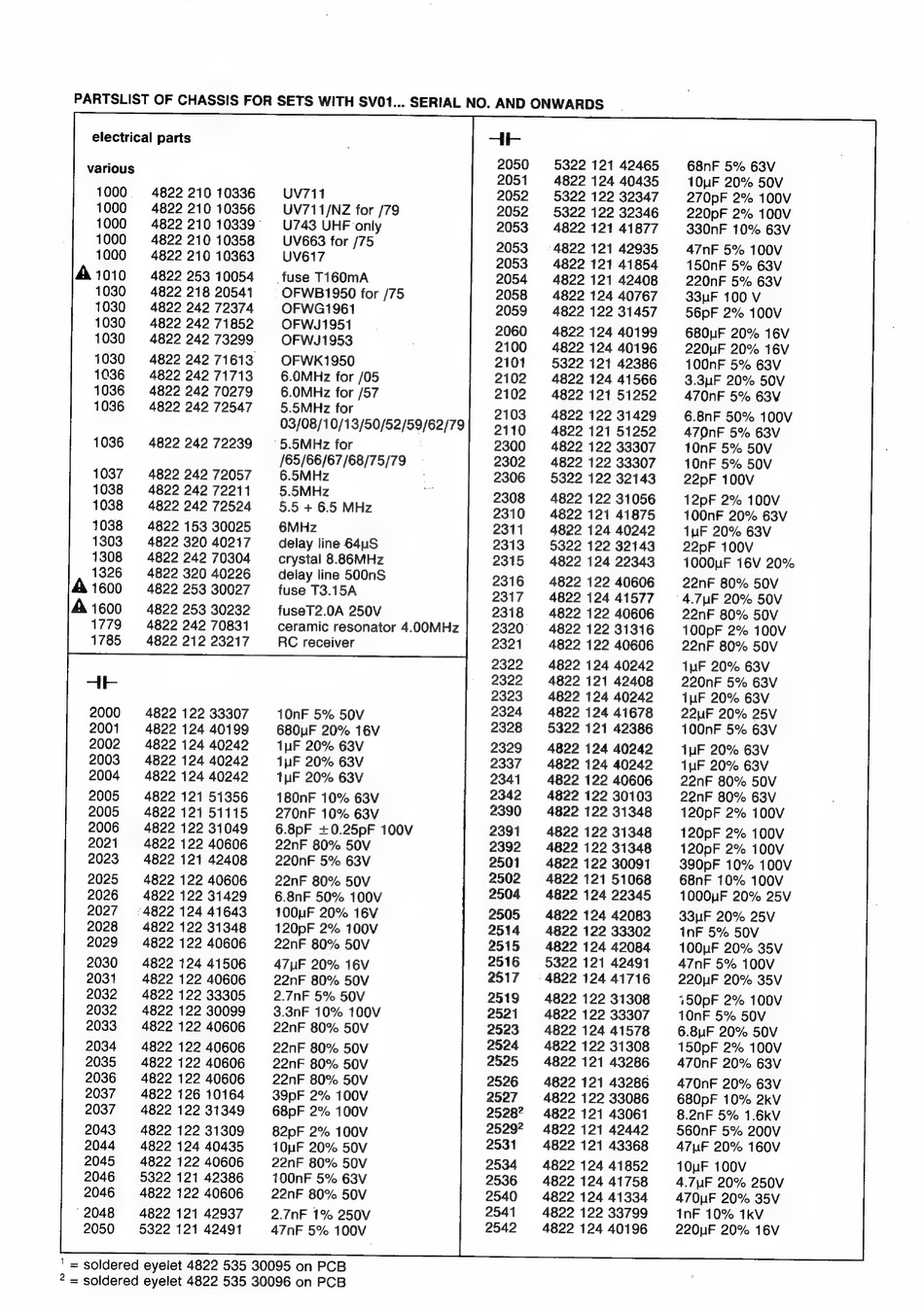

Philips Chassis GR1-AX Service Seite 53

electrical parts
2050 5322 121 42465 68nF 5% 63V
2051 4822 124 40435 10uF 20% 50V
2052 5322 122 32347 270pF 2% 100V
2052 5322 122 32346 220pF 2% 100V
2053 4822 121 41877 330nNF 10% 63V
2053 = 4822 121 42935 47nF 5% 100V
2053 94822 121 41854 150nF 5% 63V
2054 4822 121 42408 220nF 5% 63V
2058 4822 124 40767 33uF 100 V
2059 4822 122 31457 56pF 2% 100V
2060 4822 124 40199 680"F 20% 16V
2100 4822 124 40196 220UF 20% 16V
2101 5322 121 42386 100nF 5% 63V
2102 4822 124 41566 3.3uF 20% 50V
2102 4822 121 51252 470nF 5% 63V
2103 4822 122 31429 6.8nF 50% 100V
2110 4822 121 51252 470nF 5% 63V
2300 4822 122 33307 10nF 5% 50V
2302 4822 122 33307 10nF 5% 50V
2306 5322 122 32143 22pF 100V
2308 4822 122 31056 12pF 2% 100V
2310 4822 121 41875 100nF 20% 63V
2311 4822 124 40242 1uF 20% 63V
2313 5322 122 32143 22pF 100V
2315 4822 124 22343 1000uUF 16V 20%
2316 4822122 40606 22nF 80% 50V
2317 94822 124 41577 = 4.7unF 20% 50V
2318 4822122 40606 22nF 80% 50V
2320 4822 122 31316 100pF 2% 100V
2321 482212240606 22nF 80% 50V
2322 4822 124 40242 1uF 20% 63V
2322 482212142408 220nF 5% 63V
2323 4822 124 40242 TF 20% 63V
2324 482212441678 22uF 20% 25V
2328 5322 121 42386 100nF 5% 63V
2329 4822 124 40242 TF 20% 63V
2337 4822 124 40242 1yF 20% 63V
2341 4822 122 40606 22nF 80% 50V
2342 4822 122 30103 22nF 80% 63V
2390 8 ©4822 122 31348 120pF 2% 100V
2391 4822 122 31348 120pF 2% 100V
2392 ©4822 122 31348 120pF 2% 100V
2501 4822 122 30091 390pF 10% 100V
2502 4822 121 51068 68nF 10% 100V
2504 4822 124 22345 1000UF 20% 25V
2505 4822 124 42083 33UF 20% 25V
2514 4822 122 33302 InF 5% 50V
2515 4822 124 42084 100uF 20% 35V
2516 5322 121 42491 47nF 5% 100V
2517 = 4822 124 41716 220uF 20% 35V
2519 4822 122 31308 1S0pF 2% 100V
2521 4822 122 33307 10nF 5% 50V
2523 4822 124 41578 6.8uF 20% 50V
2524 4822 122 31308 150pF 2% 100V
2525 4822 121 43286 470nF 20% 63V
2526 ©4822 121 43286 470nF 20% 63V
2527 = 4822: 122 33086 680pF 10% 2kV
2528? §=4822 121 43061 8.2nF 5% 1.6kV
25292 4822 121 42442 560nF 5% 200V
2531 4822 121 43368 47UF 20% 160V
2534 4822 124 41852 10uF 100V
2536 4822 124 41758 4.7uF 20% 250V
2540 4822 124 41334 470uF 20% 35V
2541 4822 122 33799 InF 10% 1kV
2542 4822 124 40196 220uUF 20% 16V
various
1000. 4822 210 10336 UV7114
1000 4822 210 10356 UV711/NZ for /79
1000 4822 210 10339 +743 UHF only
1000 4822 210 10358 UV663 for /75
1000 4822 210 10363 UV617
A1010 4822 253 10054 —s fuse T160mA
1030 4822 218 20541 + OFWB1950 for /75
1030 4822 242 72374 OFWG1961
1030 4822 24271852 OFWJ1951
1030 4822 242 73299 OFWJ1953
1030 4822 24271613. OFWK1950
1036 4822 24271713 6.0MHz for /05
1036 4822 242 70279 —«6.0MHz for /57
1036 4822 24272547 —5.5MHz for
03/08/10/13/50/52/59/62/79
1036 4822 242 72239 = §.5MHz for
/65/66/67/68/75/79
1037 4822 24272057. 6.5MHz
1038 4822 24272211 —5.5MHz
1038 4822 24272524 §5+6.5 MHz
1038 4822 153 30025 6MHz
1303 4822 320 40217 delay line 64uS
1308 4822 242 70304 crystal 8.86MHz
1326 4822 320 40226
delay line 500nS
A 1600 4822 253 30027__—sfuse T3.15A
A1600 4822 253 30232 fuseT2.0A 250V
1779 4822 242 70831
ceramic resonator 4.00MHz
4822 212 23217 RC receiver
2000 4822 122 33307 10nF 5% 50V
2001 4822 124 40199 680UF 20% 16V
2002 4822 124 40242 1yF 20% 63V
2003 4822 124 40242 1uF 20% 63V
2004 4822 124 40242 1pF 20% 63V
2005 4822 121 51356 180nF 10% 63V
2005 4822 121 51115 270nF 10% 63V
2006 4822 122 31049 6.8pF +0.25pF 100V
2021 4822 122 40606 22nF 80% 50V
2023 4822 121 42408 220nF 5% 63V
2025 4822 122 40606 22nF 80% 50V
2026 4822 122 31429 6.8nF 50% 100V
2027 = 4822 124 41643 100uF 20% 16V
2028 4822 122 31348 120pF 2% 100V
2029 4822 122 40606 22nF 80% 50V
2030 4822 124 41506 47uF 20% 16V
2031 4822 122 40606 22nF 80% 50V
2032 4822 122 33305 2.7nNF 5% 50V
2032 4822 122 30099 3.3nF 10% 100V
2033 4822 122 40606 22nF 80% 50V
2034 4822 122 40606 22nF 80% 50V
2035 4822 122 40606 22nF 80% 50V
2036 4822 122 40606 22nF 80% 50V
2037 4822 126 10164 39pF 2% 100V
2037 4822 122 31349 68pF 2% 100V
2043 = 4822 122 31309 82pF 2% 100V
2044 4822 124 40435 10uF 20% 50V
2045 4822 122 40606 22nF 80% 50V
2046 5322 121 42386 100nF 5% 63V
2046 4822 122 40606 22nF 80% 50V
"2048 4822 121 42937 2.7NF 1% 250V
5322 121 42491 47nF 5% 100V
' = soldered eyelet 4822 535 30095 on PCB
= soldered eyelet 4822 535 30096 on PCB
