ALTERNATIVE ASSEMBLY CONFIGURATIONS:
Option A
Standard confi guration

INSTALLATION INSTRUCTIONS

To make installation quick and easy, this product has already been partially assembled.
This bracket is designed to be modular, and interchange with brackets that use the same 2"
(51mm) pole standard.
Assembly for the standard confi guration and sloped ceiling
confi guration:
1. Use the M8 bolts and Rawl plugs included to fi x top yoke to the ceiling. For concrete
ceilings use appropriate fi xings.
Option B
Sloped ceiling fi tting installed Close-coupled without a pole
Option C

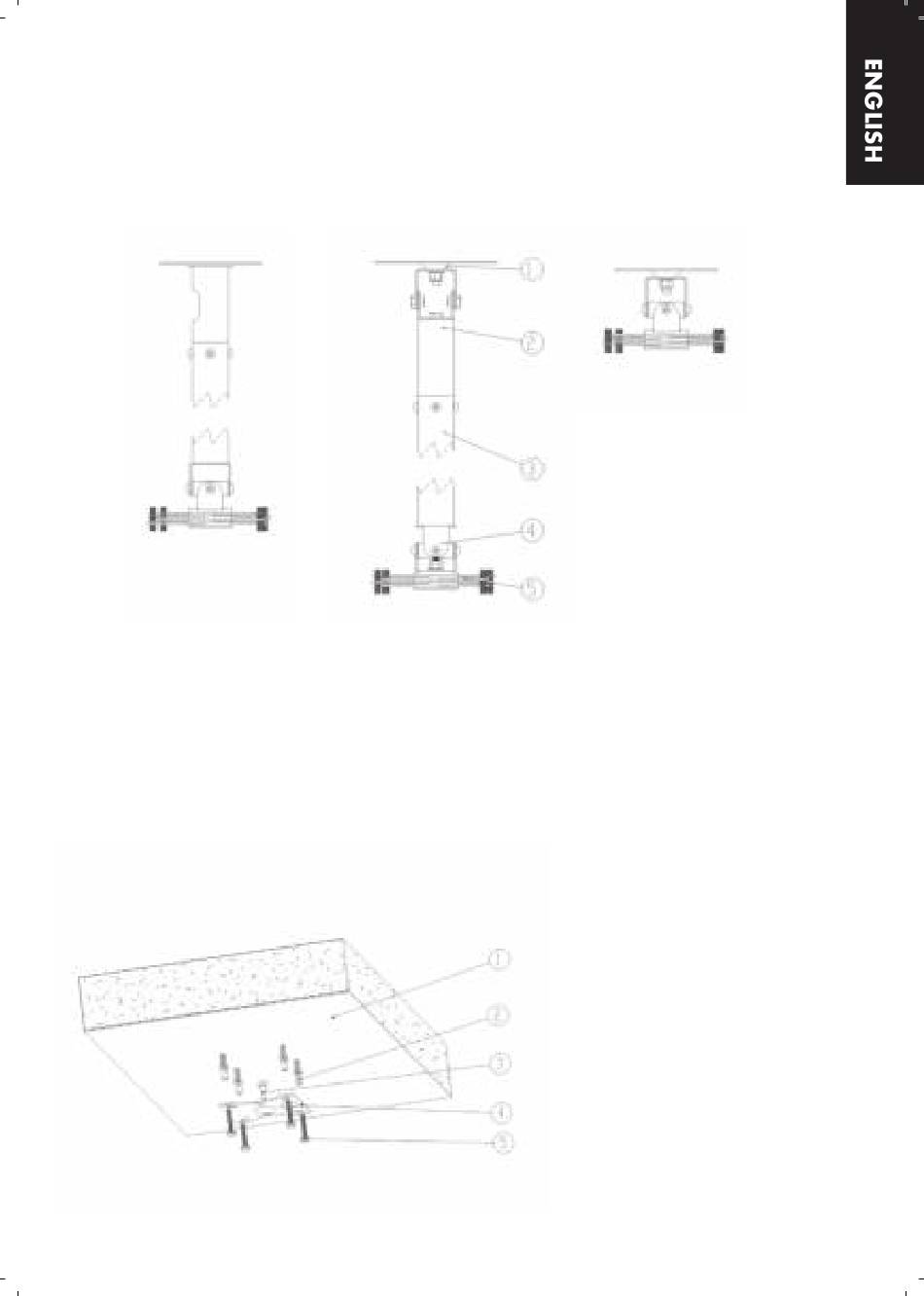

1. Ceiling
2. Rawl plug
3. M10x25 Bolt
4. Top Yoke
5. Ceiling bolt
