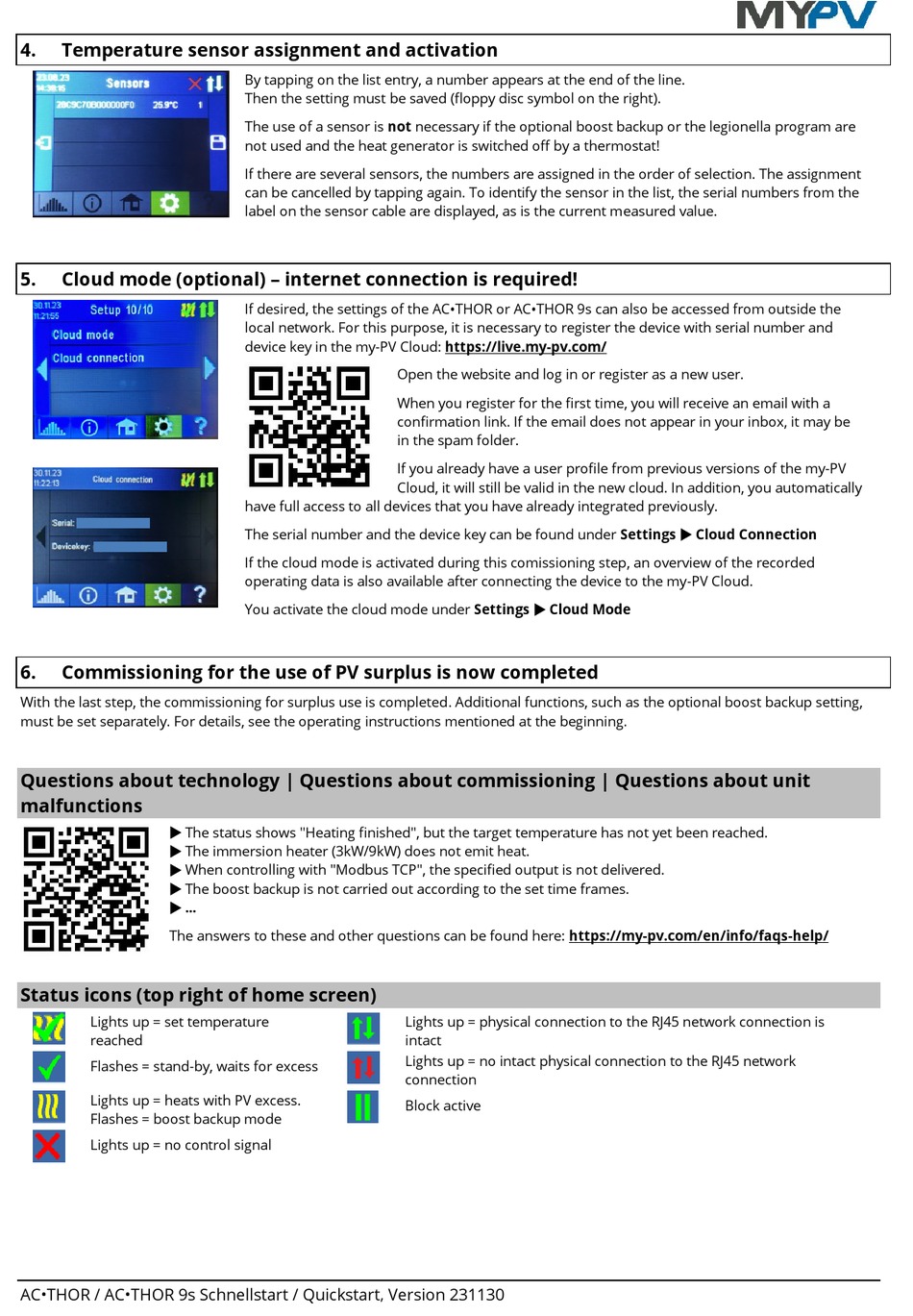

MYPV AC THOR Schnellstartanleitung Seite 4

4. Temperature sensor assignment and activation
5. Cloud mode (optional) – internet connection is required!
6. Commissioning for the use of PV surplus is now completed
With the last step, the commissioning for surplus use is completed. Additional functions, such as the optional boost backup setting,
must be set separately. For details, see the operating instructions mentioned at the beginning.
Questions about technology | Questions about commissioning | Questions about unit
malfunctions
 The status shows "Heating finished", but the target temperature has not yet been reached.
 The immersion heater (3kW/9kW) does not emit heat.
 When controlling with "Modbus TCP", the specified output is not delivered.
 The boost backup is not carried out according to the set time frames.
 ...
The answers to these and other questions can be found here: https://my-pv.com/en/info/faqs-help/
Status icons (top right of home screen)
Lights up = set temperature
reached
Flashes = stand-by, waits for excess
Lights up = heats with PV excess.
Flashes = boost backup mode
Lights up = no control signal
AC•THOR / AC•THOR 9s Schnellstart / Quickstart, Version 231130
By tapping on the list entry, a number appears at the end of the line.
Then the setting must be saved (floppy disc symbol on the right).
The use of a sensor is not necessary if the optional boost backup or the legionella program are
not used and the heat generator is switched off by a thermostat!
If there are several sensors, the numbers are assigned in the order of selection. The assignment
can be cancelled by tapping again. To identify the sensor in the list, the serial numbers from the
label on the sensor cable are displayed, as is the current measured value.
If desired, the settings of the AC•THOR or AC•THOR 9s can also be accessed from outside the
local network. For this purpose, it is necessary to register the device with serial number and
device key in the my-PV Cloud: https://live.my-pv.com/
Open the website and log in or register as a new user.
When you register for the first time, you will receive an email with a
confirmation link. If the email does not appear in your inbox, it may be
in the spam folder.
If you already have a user profile from previous versions of the my-PV
Cloud, it will still be valid in the new cloud. In addition, you automatically
have full access to all devices that you have already integrated previously.
The serial number and the device key can be found under Settings  Cloud Connection
If the cloud mode is activated during this comissioning step, an overview of the recorded
operating data is also available after connecting the device to the my-PV Cloud.
You activate the cloud mode under Settings  Cloud Mode
Lights up = physical connection to the RJ45 network connection is
intact
Lights up = no intact physical connection to the RJ45 network
connection
Block active
