3. Layout, Connections, LED's & Jumper Settings

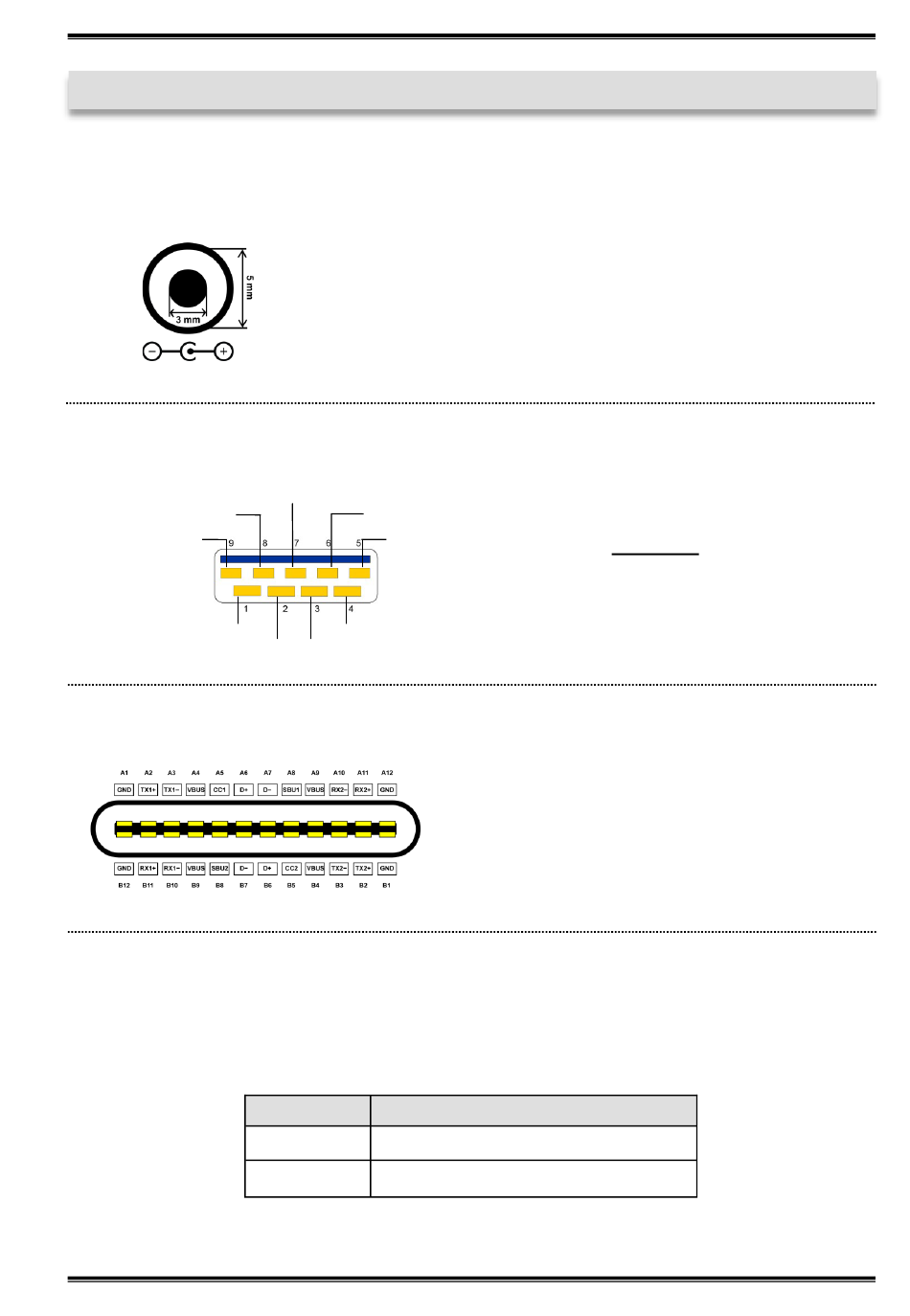

3.2 Connections & LED's
+7V bis +24V DC-Connector:
USB 3.2 Gen 2x1 A-Port:
StdB_SSTX +
StdB_SSTX -
VCC
USB 3.2 Gen 2x1 C-Port:
Status LED's:
Next to each downstream port there is a green LED, which shows you in which mode the port is
working. There are two modes. The following table shows the meaning of the LED signals:
© Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved
ATTENTION!
Never plug in with force!
Only use a power supply unit that is compatible in terms
of voltage and polarity!
GND_DRAIN
StdB_SSTX+
StdB_SSTX -
GND
D- D+
LED
Off
Steady On USB device is detected and ready
Never plug in with force
or in wrong direction.
Hinweis!
Durch die Doppelbelegung der Pins kann
der USB-C Stecker beidseitig in die
Buchse gesteckt werden.
Description
No USB device detected
