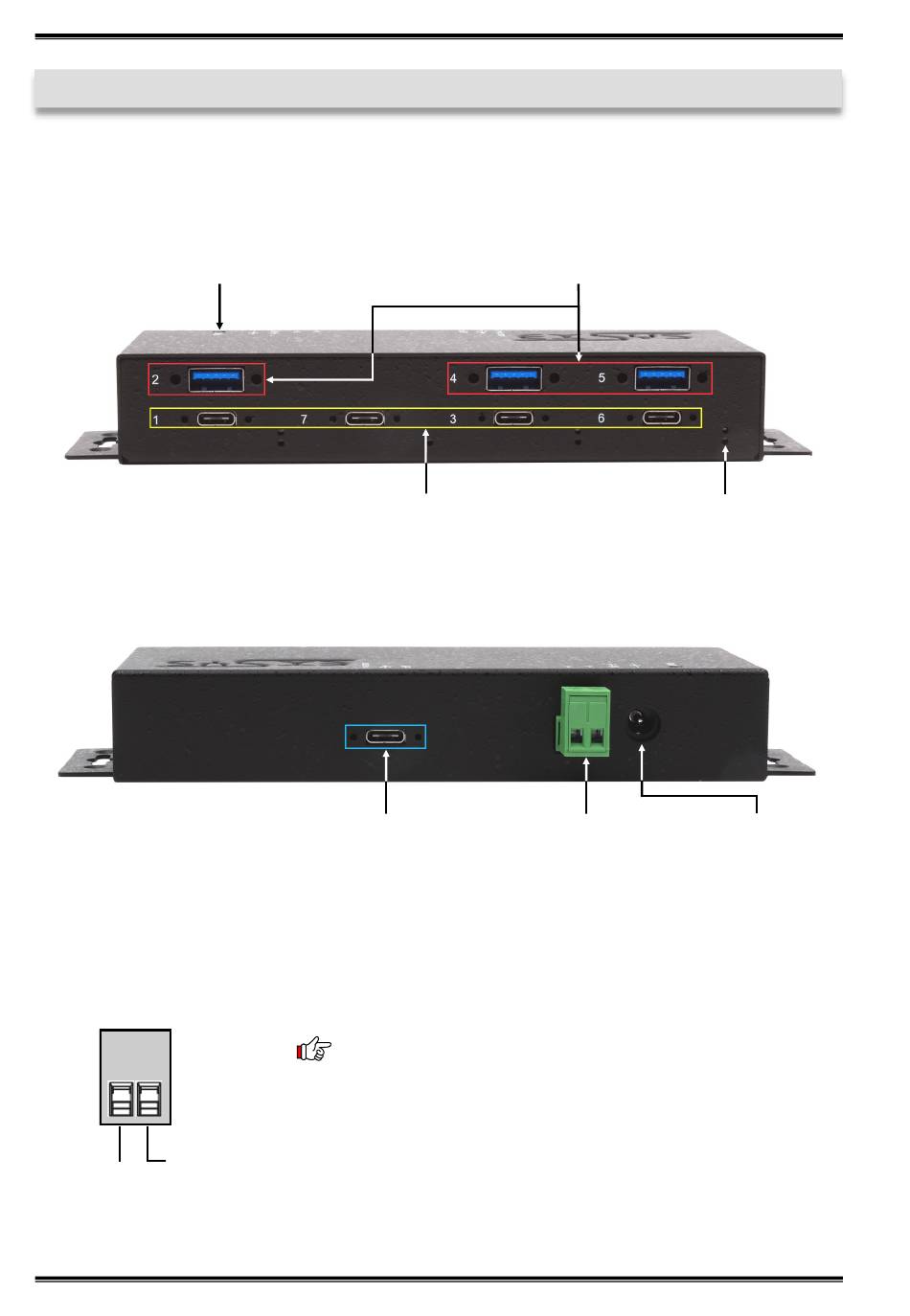

3. Layout, Connections, LED's & Jumper Settings

3.1 Layout

Front:
Power LED
Rear:
3.2 Connections & LED's
+7V - 24V T-Block:
GND (Ground)
+7V - 24V
© Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved
4x USB 3.2 Gen 2x1
Downstream C-Port
1x USB 3.2 Gen 2x1
Upstream C-Port
ATTENTION!!!
Never connect power to GND, it will destroy
your Hardware!!!
10
3x USB 3.2 Gen 2x1
Downstream A-Port
7-24V T-Block
for optional external
Power Supply
EX-1237HMVS
Status LED's
for each Port
7-24V Connector
for included external
Power Supply
