Mounting examples:

Illustrations 6 and 7 show the possibilities for mounting the compact locking to
a desk with drawers or to a fitted cupboard.
An accessories bag is supplied with the compact locking unit. This bag con-
tains fixing screws and washers for the locking element and the rosette as well
as reducing bushes for the installation in existing bore holes.

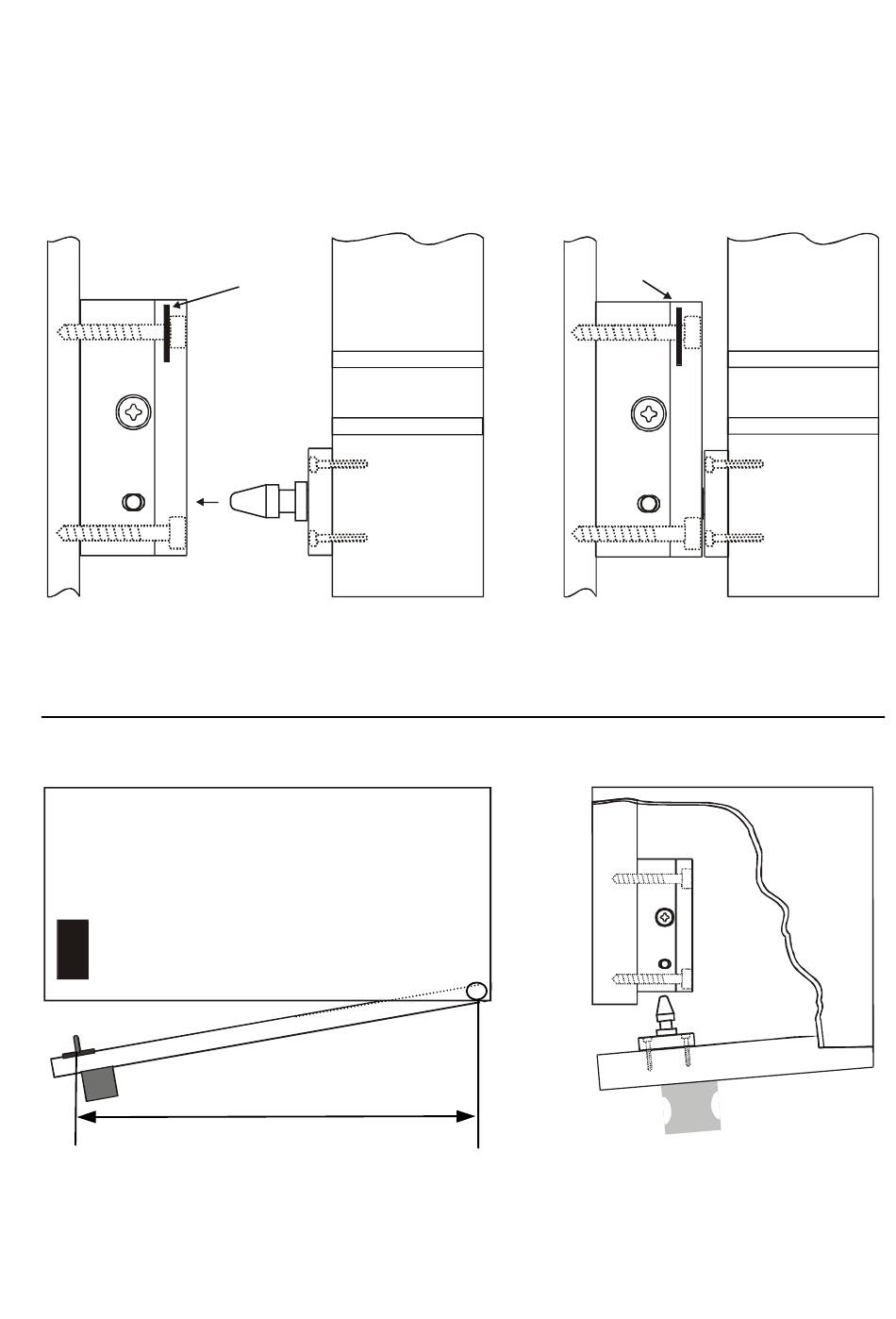

Illustration 6: Mounting to a drawer
minimum 25 cm
Illustration 7: Mounting to a fitted cupboard
14
washer

drawer

washer
drawer
