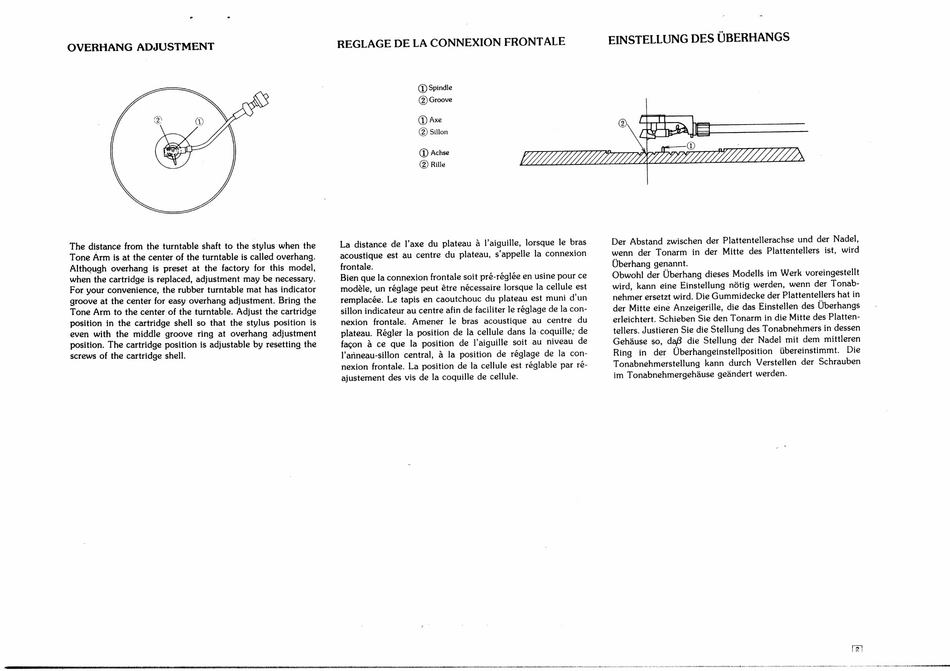

OVERHANG
ADJUSTMENT
The distance from the turntable shaft to the stylus when the
Tone Arm is at the center of the turntable is called overhang.
Although overhang is preset at the factory for this model,
when the cartridge is replaced, adjustment may be necessary.
For your convenience, the rubber turntable mat has indicator
groove at the center for easy overhang adjustment. Bring the
Tone Arm to the center of the turntable. Adjust the cartridge
position in the cartridge shell so that the stylus position is
even with the middle groove ring at overhang adjustment
position. The cartridge position is adjustable by resetting the
screws of the cartridge shell.
(1) Spindle
(2) Groove
(1) Axe
(2) Sillon
(4) Achse
(2) Rille
