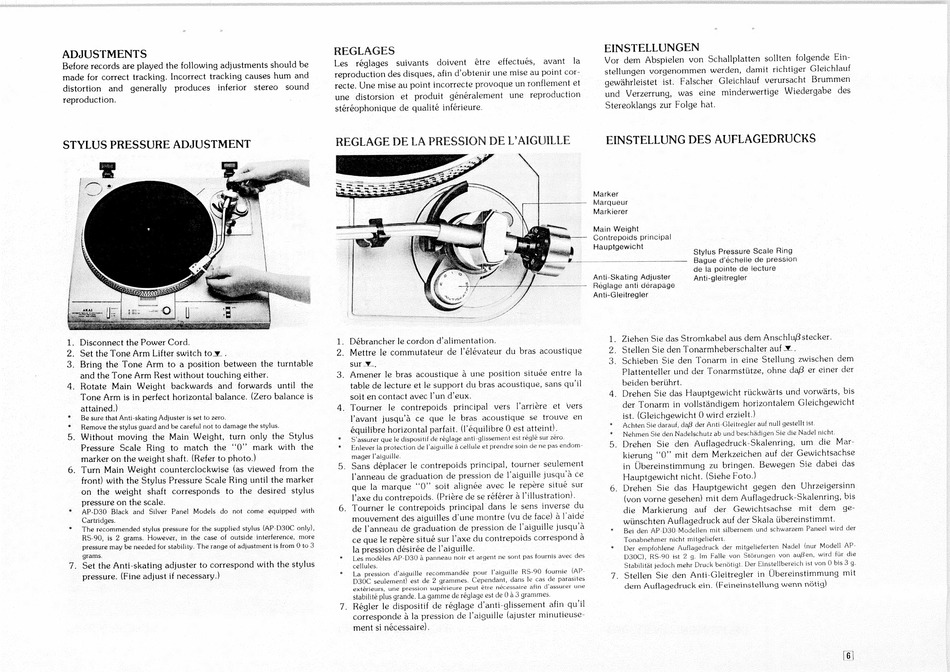

ADJUSTMENTS
Before records are played the following adjustments should be
made for correct. tracking. Incorrect tracking causes hum and
distortion
and
generally
produces
inferior
stereo
sound
reproduction.
STYLUS PRESSURE ADJUSTMENT
de
Pa
3.
Disconnect the Power Cord.
Set the Tone Arm Lifter switch toy. .
Bring the Tone Arm to a position between the turntable
and the Tone Arm Rest without touching either.
Rotate Main Weight backwards and forwards until the
Tone Arm is in perfect horizontal balance. (Zero balance is
attained.)
Be sure that Anti-skating Adjuster is set to zero.
Remove the stylus guard and be careful not to damage the stylus.
Without moving the Main Weight, turn only the Stylus
Pressure Scale Ring to match the "'O'' mark with the
marker on the weight shaft. (Refer to photo.)
Turn Main Weight counterclockwise (as viewed from the
front) with the Stylus Pressure Scale Ring until the marker
on
the weight
shaft corresponds
to the desired
stylus
pressure on the scale.
AP-D30
Black and
Silver Panel
Models
do not come
equipped
with
Cartridges.
The recommended stylus pressure for the supplied stylus (AP-D30C only),
RS-90, is 2 grams. However, in the case of outside interference, more
pressure may be needed for stability. The range of adjustment is from 0 to 3
grams.
Set the Anti-skating adjuster to correspond with the stylus
pressure. (Fine adjust if necessary.)
REGLAGES
REGLAGE DE LA PRESSION DE L'AIGUILLE
preoeity
Rtestthenrcettten
ee
EINSTELLUNGEN
EINSTELLUNG DES AUFLAGEDRUCKS
Marker
Marqueur
Markierer
Main Weight
Contrepoids principal
Hauptgewicht
;
Stylus Pressure Scale Ring
1. Débrancher le cordon d'alimentation.
Bague d'echelle de pression
de la pointe de lecture
Anti-Skating
Adjuster
Anti-gleitregler
Reglage anti derapage
Anti-Gleitregler
ist. (Gleichgewicht O wird erzielt.)
* — Achten Sie darauf, daB der Anti-Gleitregler auf null gestellt ist.
* — Nehmen Sie den Nadelschutz ab und beschadigen Sie die Nadel nicht.
dem Auflagedruck ein. (Feineinstellung wenn ndtig)
